| 04474-B1030 |
Cylinder Kit, Rear Wheel |

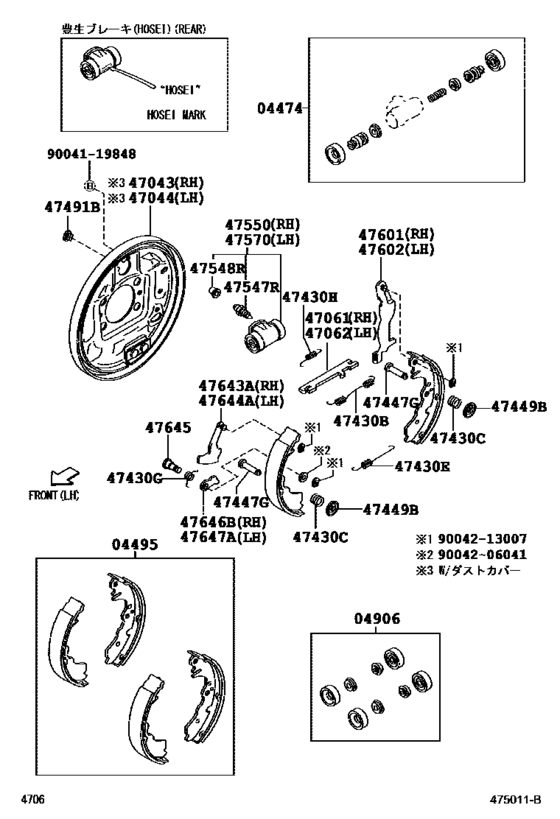

Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 04495-B1140 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 04495-B1270 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 04906-B1030 |
Cup Kit, Rear Wheel Cylinder |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 47043-B1010 |
Plate Sub-Assy, Brake Backing, Rear Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 47044-B1010 |
Plate Sub-Assy, Brake Backing, Rear Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 47447-87204 |
Pin, Shoe Hold Down Spring(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 47449-97201 |
Cup, Shoe Hold Down Spring(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 47491-B1010 |
Plug, Hole(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 47547-87204 |
Plug, Bleeder(For Front Disc Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 47548-87501 |
Cap, Bleeder Plug(For Front Disc Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 47550-B1010 |
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 47570-B1010 |
Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 47601-97501 |
Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 47602-97501 |
Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 47608-87501 |
Lever Sub-Assy, Automatic Adjust, Rh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 47609-87501 |
Lever Sub-Assy, Automtic Adjust, Lh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 47613-B1010 |
Strut Set, Parking Brake Shoe, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 47645-87201 |
Pin, Automatic Adjust Lever(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 47646-97201 |
Latch, Automatic Adjust, Rh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 47647-97201 |
Latch, Automatic Adjust, Lh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 90041-19848 |
Bolt(For Rear Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 90042-06041 |
Washer, Wave |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 90042-13007 |
Washer, C(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 90045-01848 |
Spring(For Rear Brake Shoe Hold Down) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 90045-06196 |
Spring, Tension(For Rear Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 90045-06197 |
Spring, Tension(For Rear Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 90045-06199 |
Spring, Tension(For Rear Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 90045-06257 |
Spring, Tension(For Rear Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 90045-08361 |
Spring, Tension(For Rear Brake Automatic Adjust Lever) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
| 90045-08362 |
Spring, Tension(For Rear Brake Automatic Adjust Lever) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([01.2006 - ] (0601- )QNC20,21) |
