QNC20

Toyota BB · 2006 · 3,565 parts · 182 categories

3,565 items

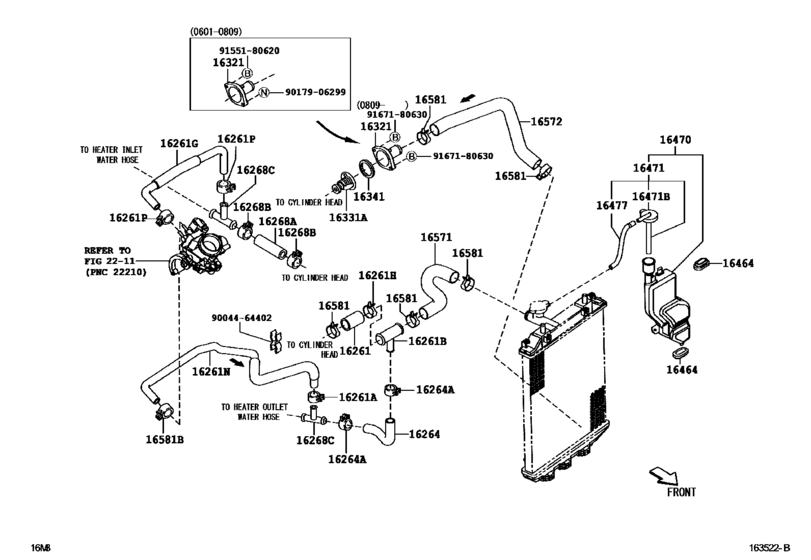

Radiator & Water Outlet ([01.2006 - ] (0601- )) 60

#	OEM	Part name
0	91672-E1080	New Genuine Part
16261	16261-B1010	Hose, Water By-Pass
16261	16261-B1200	Hose, Water By-Pass
16261	90044-67301	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	90044-13100	Union(For Water By-Pass Hose)
16261	16261-97401	Hose, Water By-Pass
16261	90044-66014	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	16261-B1050	Hose, Water By-Pass, No.2
16264	16264-B1010	Hose, Water By-Pass, No.2
16264	90044-67207	Clamp Or Clip(For Water By-Pass Hose No.2)
16268	16267-B1010	Hose(For Water By-Pass Pipe)
16268	16337-97401	Hose, Water By-Pass, No.2
16268	90044-67223	Clamp Or Clip, Hose(For Water By-Pass Pipe)
16268	90044-13070	Pipe, Water By-Pass, No.1
16321	16321-97401	Inlet, Water
16321	16321-B1031	Inlet, Water
16321	90179-06299	Nut, Wire Adjusting, No.1
16321	91671-80630	Bolt(For Cylinder Head Cover)
16321	92132-80625	Bolt, Stud(For Cylinder Head Cover Set)
16321	16321-B1030	Inlet, Water
16331	90048-33088	Thermostat
16331	90048-33099	Thermostat
16341	16341-35010	Gasket, Water Outlet
16360	16360-B1030	Fan Assy, W/motor
16361	16690-97202	Fan
16363	16680-97507	Motor, Cooling Fan
16381	16380-B1030	Bar, Fan Belt Adjusting
16385	16385-B1030	Slider, Fan Belt Adjusting
16400	16400-B1080	Radiator Assy
16400	16400-B1081	Radiator Assy
16400	23322-87101	Plug, Radiator Drain Cock
16400	16442-97201	Packing(For Radiator Drain Cock)
16401	16401-97202	Cap Sub-Assy, Radiator
16464	16464-97201	Bush, Tank Lower
16470	16470-B1020	Tank Assy, Radiator Reserve
16471	16405-B1020	Cap Sub-Assy, Reserve Tank
16471	16471-87402	Cap Sub-Assy, Radiator Reserve Tank
16477	16472-B1020	Pipe(For Radiator Reserve Tank)
16533	90044-80621	Grommet(For Radiator Support)
16535	90044-80592	Grommet
16571	16571-B1020	Hose, Radiator, Inlet
16571	16571-B1021	Hose, Radiator, Inlet
16572	16572-B1020	Hose, Radiator, Outlet
16582	16582-B1010	Bracket, Radiator, No.1
16630	16603-97401	Pulley Sub-Assy, Idler, No.1
16630	16630-97402	Pulley Assy, Idler, No.2
16701	16711-B1010	Shroud Sub-Assy, Fan
1667287201	16672-87201	Bolt, Radiator Side Support Plate
9004116481	90041-16481	New Genuine Part
9004116492	90041-16492	New Genuine Part
9004179141	90041-79141	New Genuine Part
9004464402	90044-64402	Clamp Or Clip(For Water By-Pass Hose)
9010508433	90105-08433	BOLT FLANGE
9011908356	90119-08356	New Genuine Part
9155180620	91551-80620	Bolt
9165160618	91651-60618	Bolt(For Oil Receiver Pipe)
9167180825	91671-80825	Bolt, Compressor, No.1
9212281065	92122-81065	New Genuine Part
9415181000	94151-81000	NUT FLANGE
9461311001	94613-11001	WASHER

OEM	Part name	Category
16261-97401	Hose, Water By-Pass	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16261-B1010	Hose, Water By-Pass	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16261-B1050	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16261-B1200	Hose, Water By-Pass	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16264-B1010	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16267-B1010	Hose(For Water By-Pass Pipe)	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16321-97401	Inlet, Water	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16321-B1030	Inlet, Water	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16321-B1031	Inlet, Water	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16337-97401	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16341-35010	Gasket, Water Outlet	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16360-B1030	Fan Assy, W/motor	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16380-B1030	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16385-B1030	Slider, Fan Belt Adjusting	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16400-B1080	Radiator Assy	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16400-B1081	Radiator Assy	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16401-97202	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16405-B1020	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16442-97201	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16464-97201	Bush, Tank Lower	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16470-B1020	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16471-87402	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16472-B1020	Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16571-B1020	Hose, Radiator, Inlet	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16571-B1021	Hose, Radiator, Inlet	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16572-B1020	Hose, Radiator, Outlet	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16582-B1010	Bracket, Radiator, No.1	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16603-97401	Pulley Sub-Assy, Idler, No.1	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16630-97402	Pulley Assy, Idler, No.2	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16672-87201	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16680-97507	Motor, Cooling Fan	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16690-97202	Fan	Radiator & Water Outlet ([01.2006 - ] (0601- ))
16711-B1010	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([01.2006 - ] (0601- ))
23322-87101	Plug, Radiator Drain Cock	Radiator & Water Outlet ([01.2006 - ] (0601- ))
90041-16481	New Genuine Part	Radiator & Water Outlet ([01.2006 - ] (0601- ))
90041-16492	New Genuine Part	Radiator & Water Outlet ([01.2006 - ] (0601- ))
90041-79141	New Genuine Part	Radiator & Water Outlet ([01.2006 - ] (0601- ))
90044-13070	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([01.2006 - ] (0601- ))
90044-13100	Union(For Water By-Pass Hose)	Radiator & Water Outlet ([01.2006 - ] (0601- ))
90044-64402	Clamp Or Clip(For Water By-Pass Hose)	Radiator & Water Outlet ([01.2006 - ] (0601- ))
90044-66014	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([01.2006 - ] (0601- ))
90044-67207	Clamp Or Clip(For Water By-Pass Hose No.2)	Radiator & Water Outlet ([01.2006 - ] (0601- ))
90044-67223	Clamp Or Clip, Hose(For Water By-Pass Pipe)	Radiator & Water Outlet ([01.2006 - ] (0601- ))
90044-67301	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([01.2006 - ] (0601- ))
90044-80592	Grommet	Radiator & Water Outlet ([01.2006 - ] (0601- ))
90044-80621	Grommet(For Radiator Support)	Radiator & Water Outlet ([01.2006 - ] (0601- ))
90048-33088	Thermostat	Radiator & Water Outlet ([01.2006 - ] (0601- ))
90048-33099	Thermostat	Radiator & Water Outlet ([01.2006 - ] (0601- ))
90105-08433	BOLT FLANGE	Radiator & Water Outlet ([01.2006 - ] (0601- ))
90119-08356	New Genuine Part	Radiator & Water Outlet ([01.2006 - ] (0601- ))
90179-06299	Nut, Wire Adjusting, No.1	Radiator & Water Outlet ([01.2006 - ] (0601- ))
91551-80620	Bolt	Radiator & Water Outlet ([01.2006 - ] (0601- ))
91651-60618	Bolt(For Oil Receiver Pipe)	Radiator & Water Outlet ([01.2006 - ] (0601- ))
91671-80630	Bolt(For Cylinder Head Cover)	Radiator & Water Outlet ([01.2006 - ] (0601- ))
91671-80825	Bolt, Compressor, No.1	Radiator & Water Outlet ([01.2006 - ] (0601- ))
91672-E1080	New Genuine Part	Radiator & Water Outlet ([01.2006 - ] (0601- ))
92122-81065	New Genuine Part	Radiator & Water Outlet ([01.2006 - ] (0601- ))
92132-80625	Bolt, Stud(For Cylinder Head Cover Set)	Radiator & Water Outlet ([01.2006 - ] (0601- ))
94151-81000	NUT FLANGE	Radiator & Water Outlet ([01.2006 - ] (0601- ))
94613-11001	WASHER	Radiator & Water Outlet ([01.2006 - ] (0601- ))
