QNC20

Toyota BB · 2006 · 3,565 parts · 182 categories

3,565 items

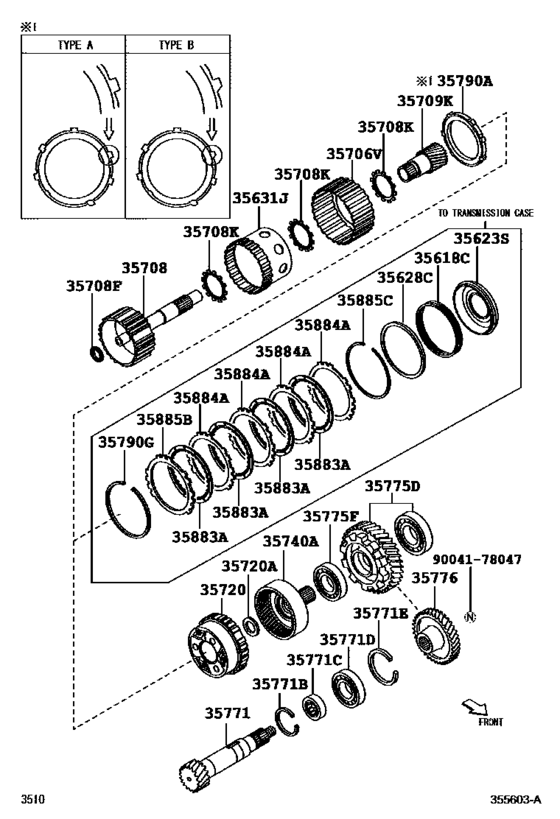

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- )) 42

#	OEM	Part name
35618	35618-B1010	Return Spring Sub-Assy, 1St & Reverse
35623	35623-97203	Piston,1St & Reverse Brake
35623	35623-B1020	Piston,1St & Reverse Brake
35628	35628-97202	Seat, 1St & Reverse Brake Piston Return Spring
35631	35631-97203	Hub, Forward Clutch, No.1
35631	35631-B1010	Hub, Forward Clutch, No.1
35706	35706-97203	Gear Sub Assy, Planetary Sun
35708	35708-97203	Shaft Sub-Assy, Intermediate
35708	90043-74051	Bearing, Thrust Needle Roller (For Intermediate Shaft)
35708	90043-74047	Bearing, Needle Roller(For Intermediate Shaft)
35709	35709-97204	Gear Sub-Assy, Rear Planetary
35720	35720-97211	Gear Assy, Front Planetary
35720	90043-74043	Bearing, Thrust Needle Roller (For Front Clutch Drum)
35740	35740-97201	Gear Assy,front Planetary Ring
35771	35771-B1010	Shaft, Output
35771	90045-21182	Ring, Hole Snap (For Output Shaft, No.1)
35771	90043-65026	Roller Bearing, Output Shaft
35771	90043-63274	Ball Bearing, Output Shaft
35771	90045-21183	Ring, Hole Snap (For Output Shaft, No.2)
35775	35775-B9020	Gear Kit, Riduction Drive
35775	90043-63273	Bearing, Radial Ball (For Output Shaft Front)
35776	35776-97201	Gear, Primary Reduction Driven
35790	35790-97201	Clutch Assy, 1 Way
35790	35790-B1050	Clutch Assy, 1 Way
35790	35790-B1030	Clutch Assy, 1 Way
35790	90045-21174	Hole Snap Ring (For 1Way Clutch)
35883	35883-97204	Disc, Brake
35883	35883-B1030	Disc, Brake
35883	35883-B1010	Disc, Brake
35884	35884-97204	Plate,brake
35885	35885-97213	Flange, Brake
35885	35885-97214	Flange, Brake
35885	35885-97215	Flange, Brake
35885	35885-97216	Flange, Brake
35885	35885-97217	Flange, Brake
35885	35885-97218	Flange, Brake
35885	90045-21175	Ring,hole Snap (For Clutch Plate)
35885	90045-21194	Ring,hole Snap (For Clutch Plate)
41310	41100-97205	Case Sub-Assy, Front Differential, No.1
41310	90043-63276	Bearing, Needle Roller
41310	90043-63304	Ball Bearing(For Differential Case Rear)
9004178047	90041-78047	New Genuine Part

OEM	Part name	Category
35618-B1010	Return Spring Sub-Assy, 1St & Reverse	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35623-97203	Piston,1St & Reverse Brake	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35623-B1020	Piston,1St & Reverse Brake	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35628-97202	Seat, 1St & Reverse Brake Piston Return Spring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35631-97203	Hub, Forward Clutch, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35631-B1010	Hub, Forward Clutch, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35706-97203	Gear Sub Assy, Planetary Sun	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35708-97203	Shaft Sub-Assy, Intermediate	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35709-97204	Gear Sub-Assy, Rear Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35720-97211	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35740-97201	Gear Assy,front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35771-B1010	Shaft, Output	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35775-B9020	Gear Kit, Riduction Drive	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35776-97201	Gear, Primary Reduction Driven	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35790-97201	Clutch Assy, 1 Way	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35790-B1030	Clutch Assy, 1 Way	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35790-B1050	Clutch Assy, 1 Way	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35883-97204	Disc, Brake	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35883-B1010	Disc, Brake	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35883-B1030	Disc, Brake	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35884-97204	Plate,brake	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35885-97213	Flange, Brake	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35885-97214	Flange, Brake	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35885-97215	Flange, Brake	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35885-97216	Flange, Brake	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35885-97217	Flange, Brake	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
35885-97218	Flange, Brake	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
41100-97205	Case Sub-Assy, Front Differential, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
90041-78047	New Genuine Part	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
90043-63273	Bearing, Radial Ball (For Output Shaft Front)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
90043-63274	Ball Bearing, Output Shaft	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
90043-63276	Bearing, Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
90043-63304	Ball Bearing(For Differential Case Rear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
90043-65026	Roller Bearing, Output Shaft	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
90043-74043	Bearing, Thrust Needle Roller (For Front Clutch Drum)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
90043-74047	Bearing, Needle Roller(For Intermediate Shaft)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
90043-74051	Bearing, Thrust Needle Roller (For Intermediate Shaft)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
90045-21174	Hole Snap Ring (For 1Way Clutch)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
90045-21175	Ring,hole Snap (For Clutch Plate)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
90045-21182	Ring, Hole Snap (For Output Shaft, No.1)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
90045-21183	Ring, Hole Snap (For Output Shaft, No.2)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
90045-21194	Ring,hole Snap (For Clutch Plate)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2006 - ] (0601- ))
