Search › Model › QNC20
QNC20

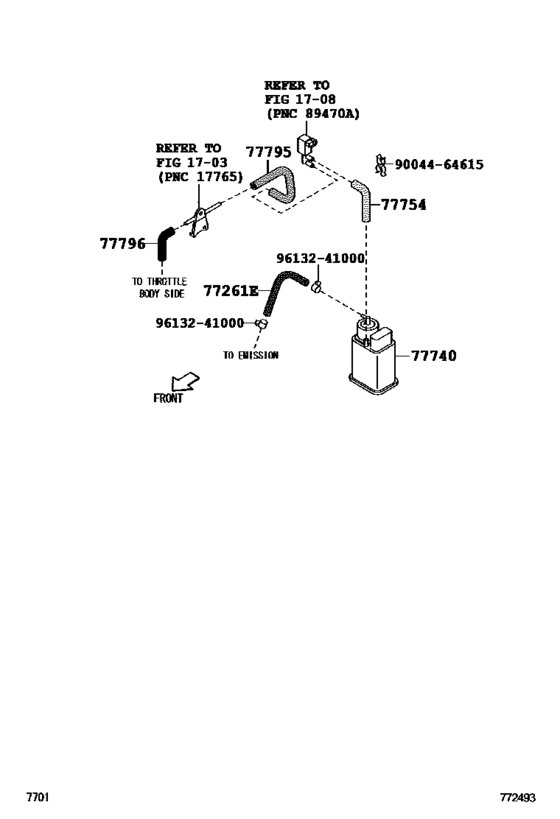

Fuel Tank & Tube ([01.2006 - ] CHARCOAL CANISTER (0601- )) 7
| # | OEM | Part name |
|---|---|---|
| 77261 | 95331-04028 | Hose, Fuel, No.1 (For Fuel Tank To Canister Tube) |
| 77740 | 77740-B1010 | Canister Assy, Charcoal |
| 77754 | 77754-B1050 | Hose, Charcoal Canister Outlet, No.1 |
| 77795 | 77795-B1020 | Hose, Charcoal Canister Outlet, No.2 |
| 77796 | 77796-B1010 | Hose, Fuel |
| 9004464615 | 90044-64615 | New Genuine Part |
| 9613241000 | 96132-41000 | Clip, No.1(For Idle-Up Hose) |
| OEM | Part name | Category |
|---|---|---|
| 77740-B1010 | Canister Assy, Charcoal | Fuel Tank & Tube ([01.2006 - ] CHARCOAL CANISTER (0601- )) |
| 77754-B1050 | Hose, Charcoal Canister Outlet, No.1 | Fuel Tank & Tube ([01.2006 - ] CHARCOAL CANISTER (0601- )) |
| 77795-B1020 | Hose, Charcoal Canister Outlet, No.2 | Fuel Tank & Tube ([01.2006 - ] CHARCOAL CANISTER (0601- )) |
| 77796-B1010 | Hose, Fuel | Fuel Tank & Tube ([01.2006 - ] CHARCOAL CANISTER (0601- )) |
| 90044-64615 | New Genuine Part | Fuel Tank & Tube ([01.2006 - ] CHARCOAL CANISTER (0601- )) |
| 95331-04028 | Hose, Fuel, No.1 (For Fuel Tank To Canister Tube) | Fuel Tank & Tube ([01.2006 - ] CHARCOAL CANISTER (0601- )) |
| 96132-41000 | Clip, No.1(For Idle-Up Hose) | Fuel Tank & Tube ([01.2006 - ] CHARCOAL CANISTER (0601- )) |
