Search › Model › QNC20

QNC20

Toyota BB · 2006 · 3,565 parts · 182 categories
QNC20 ×

← Back to categories

3,565 items

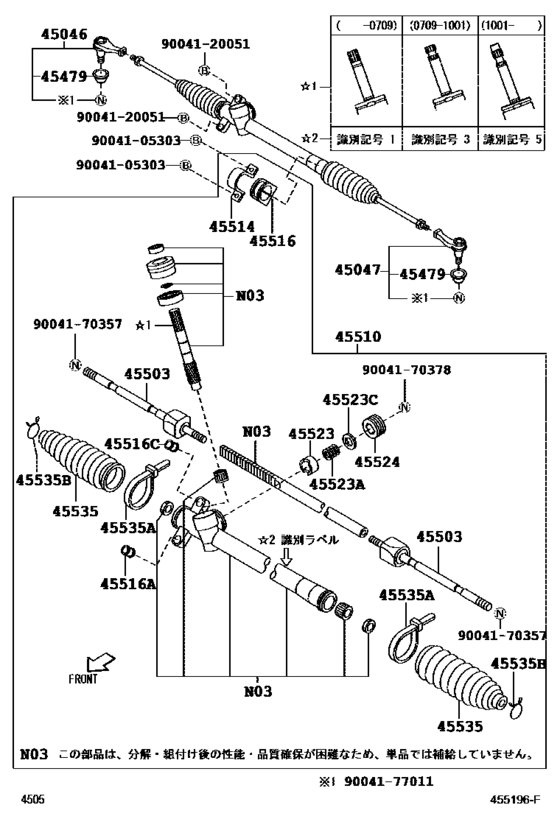

Front Steering Gear & Link ([01.2006 - ] (0601- )) 34
#OEMPart name
45046 45046-B9060 End Sub-Assy, Tie Rod, Rh
45046 45046-B9210 End Sub-Assy, Tie Rod, Rh
45047 45047-B9060 End Sub-Assy, Tie Rod, Lh
45047 45047-B9150 End Sub-Assy, Tie Rod, Lh
45479 45479-B2010 Seal, Steering Link Joint Dust
45503 45503-B1020 End Sub-Assy, Steering Rack
45510 45502-B1050 Gear Assy, Steering
45510 45502-B1051 Gear Assy, Steering
45510 45502-B1054 Gear Assy, Steering
45510 45502-B1052 Gear Assy, Steering
45510 45502-B1053 Gear Assy, Steering
45510 45502-B1055 Gear Assy, Steering
45510 45502-B1057 Gear Assy, Steering
45510 45502-B1056 Gear Assy, Steering
45514 45514-B2010 Bracket, Steering Rack Housing, No.1
45516 45516-B1030 Grommet, Steering Rack Housing, No.1
45516 45516-B2020 Grommet, Steering Rack Housing, No.1
45516 45516-B2090 Grommet, Steering Rack Housing, No.1
45516 45516-B2030 Bush, Steering Rack Housing, No.1
45516 45516-B2100 Bush, Steering Rack Housing, No.2
45523 45523-87403 Guide, Rack(For Steering Gear)
45523 45523-B1040 Guide, Rack(For Steering Gear)
45523 90045-01429 Spring(For Steering Gear Rack Guide)
45523 90042-08038 Spacer(For Rack Guide)
45524 45524-B1010 Cap, Steering Rack Guide Spring
45535 45535-B2010 Boot, Steering Rack, No.1
45535 45536-87205 Clamp(For Steering Rack Boot)
45535 45538-B2020 Clamp(For Steering Rack Boot)
45535 45537-97201 Clip(For Steering Rack Boot)
9004105303 90041-05303 Bolt, Steering Rack Housing
9004120051 90041-20051 Bolt, Steering Gear Housing
9004170357 90041-70357 Nut, Rack End Lock
9004170378 90041-70378 Nut(For Steering Rack Guide Spring Cap)
9004177011 90041-77011 Nut, Lock
