Search › Model › QNC20

QNC20

Toyota BB · 2006 · 3,565 parts · 182 categories

3,565 items

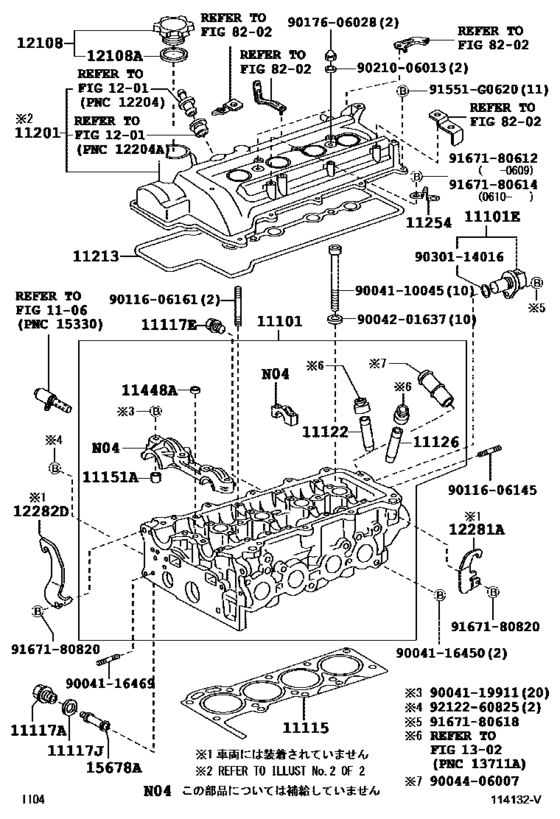

Cylinder Head ([01.2006 - 09.2008] (0601-0809)) 42

#	OEM	Part name
11101	11101-B9120	Head Sub-Assy, Cylinder
11101	11101-B9251	Head Sub-Assy, Cylinder
11101	11101-B9230	Head Sub-Assy, Cylinder
11101	11101-B9250	Head Sub-Assy, Cylinder
11101	90919-05024	Sensor, Cam Position
11115	11115-B1030	Gasket, Cylinder Head
11117	90341-14013	Plug, W/head Taper Screw, No.1
11117	90043-41078	Ball No.1(For Cylinder Head)
11117	90430-14009	Gasket(For Cylinder Head Screw Plug)
11122	11122-21010	Bush, Intake Valve Guide
11122	11123-21010	Bush, Intake Valve Guide
11151	90042-53010	Pin, Ring(For Camshaft Bearing Cap Setting)
11201	11201-B1020	Cover Sub-Assy, Cylinder Head
11201	11201-B1021	Cover Sub-Assy, Cylinder Head
11213	11213-97401	Gasket, Cylinder Head Cover
11254	21893-B1010	Bracket, V-Bank Cover, No.1
11448	11448-87201	Orifice, Cylinder Block Oil
12108	12180-97401	Cap Sub-Assy, Oil Filler
12108	90430-37140	Gasket(For Oil Filler Cap)
12281	12281-97401	Hanger, Engine, No.1
12281	12281-97402	Hanger, Engine, No.1
12282	12282-97403	Hanger, Engine, No.2
12282	12282-97404	Hanger, Engine, No.2
15678	15678-21010	Filter, Oil Control Valve
91551	91551-G0620	New Genuine Part
9004110045	90041-10045	Bolt(For Cylinder Head Set)
9004110045	90910-02143	Bolt(For Cylinder Head Set)
9004116450	90041-16450	Bolt, Stud(For Manifold To Cylinder Head)
9004116469	90041-16469	New Genuine Part
9004119911	90041-19911	Bolt(For Head To Camshaft Bearing Cap)
9004201637	90042-01637	Washer, Plate(For Cylinder Head Set)
9004406007	90044-06007	Tube(For Cylinder Head)
9011606145	90116-06145	Bolt, Stud(For Oil Pan)
9011606161	90116-06161	Bolt, Stud(For Head To Cylinder Head Cover)
9017606028	90176-06028	Nut, Cap(For Cylinder Head Cover)
9021006013	90210-06013	Washer, Seal(For Cylinder Head Cover)
9030114016	90301-14016	O Ring, Cam Position Sensor
9167180612	91671-80612	Bolt
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9167180618	91671-80618	BOLT FLANGE WWSHER
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)
9212260825	92122-60825	Bolt, Stud(For Manifold To Carburetor)

OEM	Part name	Category
11101-B9120	Head Sub-Assy, Cylinder	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
11101-B9230	Head Sub-Assy, Cylinder	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
11101-B9250	Head Sub-Assy, Cylinder	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
11101-B9251	Head Sub-Assy, Cylinder	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
11115-B1030	Gasket, Cylinder Head	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
11122-21010	Bush, Intake Valve Guide	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
11123-21010	Bush, Intake Valve Guide	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
11201-B1020	Cover Sub-Assy, Cylinder Head	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
11201-B1021	Cover Sub-Assy, Cylinder Head	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
11213-97401	Gasket, Cylinder Head Cover	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
11448-87201	Orifice, Cylinder Block Oil	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
12180-97401	Cap Sub-Assy, Oil Filler	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
12281-97401	Hanger, Engine, No.1	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
12281-97402	Hanger, Engine, No.1	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
12282-97403	Hanger, Engine, No.2	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
12282-97404	Hanger, Engine, No.2	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
15678-21010	Filter, Oil Control Valve	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
21893-B1010	Bracket, V-Bank Cover, No.1	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90041-10045	Bolt(For Cylinder Head Set)	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90041-16450	Bolt, Stud(For Manifold To Cylinder Head)	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90041-16469	New Genuine Part	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90041-19911	Bolt(For Head To Camshaft Bearing Cap)	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90042-01637	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90042-53010	Pin, Ring(For Camshaft Bearing Cap Setting)	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90043-41078	Ball No.1(For Cylinder Head)	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90044-06007	Tube(For Cylinder Head)	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90116-06145	Bolt, Stud(For Oil Pan)	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90116-06161	Bolt, Stud(For Head To Cylinder Head Cover)	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90176-06028	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90210-06013	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90301-14016	O Ring, Cam Position Sensor	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90341-14013	Plug, W/head Taper Screw, No.1	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90430-14009	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90910-02143	Bolt(For Cylinder Head Set)	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
90919-05024	Sensor, Cam Position	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
91551-G0620	New Genuine Part	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
91671-80612	Bolt	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
91671-80614	Bolt (For Transmission Control Cable Bracket)	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
91671-80618	BOLT FLANGE WWSHER	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
91671-80820	Bolt (For Transmission Control Cable Bracket)	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
92122-60825	Bolt, Stud(For Manifold To Carburetor)	Cylinder Head ([01.2006 - 09.2008] (0601-0809))
