Search › Model › QNC20
QNC20

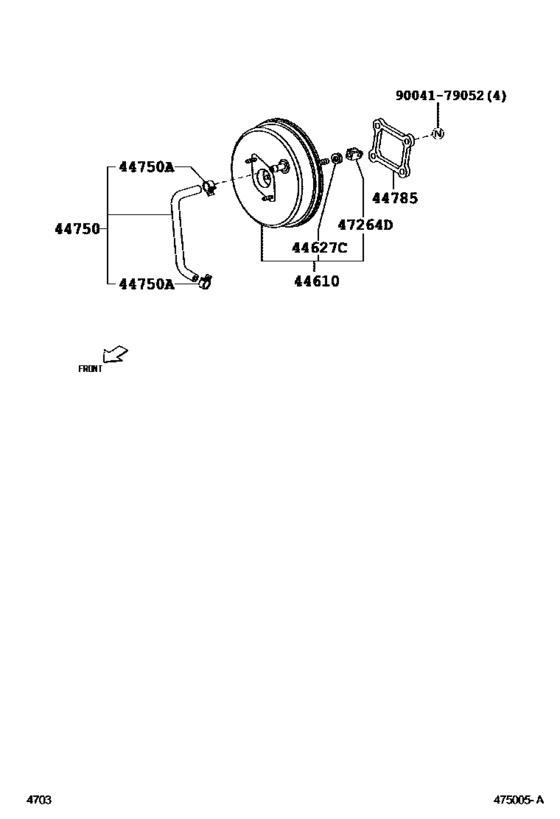

Brake Booster & Vacuum Tube ([01.2006 - ] (0601- )) 9
| # | OEM | Part name |
|---|---|---|
| 44610 | 44610-B1110 | Booster Assy, Brake |
| 44610 | 44610-B1160 | Booster Assy, Brake |
| 44627 | 94130-01002 | Nut, Booster Sleeve Cylinder |
| 44750 | 44750-B1050 | Hose Assy, Vacuum |
| 44750 | 44750-B1051 | Hose Assy, Vacuum |
| 44750 | 90044-67161 | Clip(For Vacuum Hose) |
| 44785 | 47278-87703 | Gasket, Brake Booster |
| 47264 | 47264-B5010 | Clevis, Brake Master Cylinder Push Rod |
| 9004179052 | 90041-79052 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 44610-B1110 | Booster Assy, Brake | Brake Booster & Vacuum Tube ([01.2006 - ] (0601- )) |
| 44610-B1160 | Booster Assy, Brake | Brake Booster & Vacuum Tube ([01.2006 - ] (0601- )) |
| 44750-B1050 | Hose Assy, Vacuum | Brake Booster & Vacuum Tube ([01.2006 - ] (0601- )) |
| 44750-B1051 | Hose Assy, Vacuum | Brake Booster & Vacuum Tube ([01.2006 - ] (0601- )) |
| 47264-B5010 | Clevis, Brake Master Cylinder Push Rod | Brake Booster & Vacuum Tube ([01.2006 - ] (0601- )) |
| 47278-87703 | Gasket, Brake Booster | Brake Booster & Vacuum Tube ([01.2006 - ] (0601- )) |
| 90041-79052 | NUT | Brake Booster & Vacuum Tube ([01.2006 - ] (0601- )) |
| 90044-67161 | Clip(For Vacuum Hose) | Brake Booster & Vacuum Tube ([01.2006 - ] (0601- )) |
| 94130-01002 | Nut, Booster Sleeve Cylinder | Brake Booster & Vacuum Tube ([01.2006 - ] (0601- )) |
