QNC10

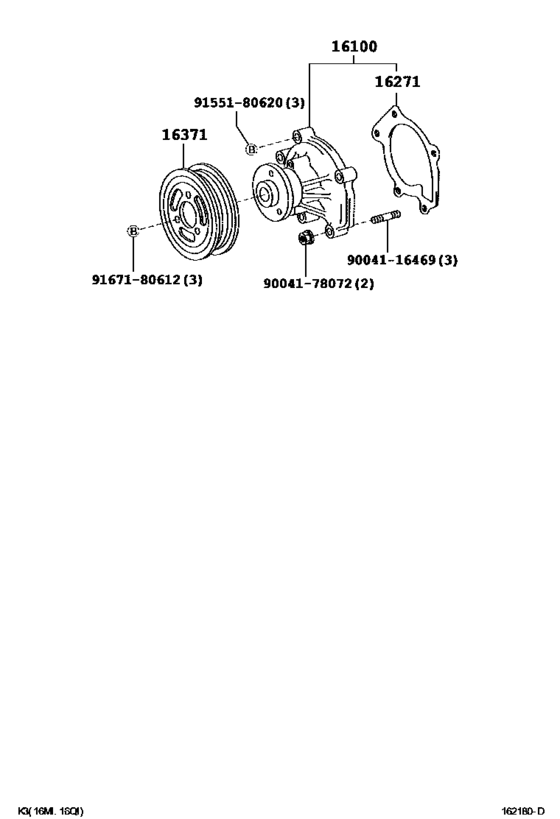

Water Pump ([05.2004 - 02.2010] (0405-1002)K3VE) 9
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-B9010 | Pump Assy, Engine Water |
| 16100 | 16100-B9011 | Pump Assy, Engine Water |
| 16271 | 16271-97401 | Gasket, Water Pump |
| 16271 | 16271-B1010 | Gasket, Water Pump |
| 16371 | 16371-97401 | Pulley, Fan |
| 9004116469 | 90041-16469 | New Genuine Part |
| 9004178072 | 90041-78072 | New Genuine Part |
| 9155180620 | 91551-80620 | Bolt |
| 9167180612 | 91671-80612 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 16100-B9010 | Pump Assy, Engine Water | Water Pump ([05.2004 - 02.2010] (0405-1002)K3VE) |
| 16100-B9011 | Pump Assy, Engine Water | Water Pump ([05.2004 - 02.2010] (0405-1002)K3VE) |
| 16271-97401 | Gasket, Water Pump | Water Pump ([05.2004 - 02.2010] (0405-1002)K3VE) |
| 16271-B1010 | Gasket, Water Pump | Water Pump ([05.2004 - 02.2010] (0405-1002)K3VE) |
| 16371-97401 | Pulley, Fan | Water Pump ([05.2004 - 02.2010] (0405-1002)K3VE) |
| 90041-16469 | New Genuine Part | Water Pump ([05.2004 - 02.2010] (0405-1002)K3VE) |
| 90041-78072 | New Genuine Part | Water Pump ([05.2004 - 02.2010] (0405-1002)K3VE) |
| 91551-80620 | Bolt | Water Pump ([05.2004 - 02.2010] (0405-1002)K3VE) |
| 91671-80612 | Bolt | Water Pump ([05.2004 - 02.2010] (0405-1002)K3VE) |
