Search › Model › QNC10
QNC10

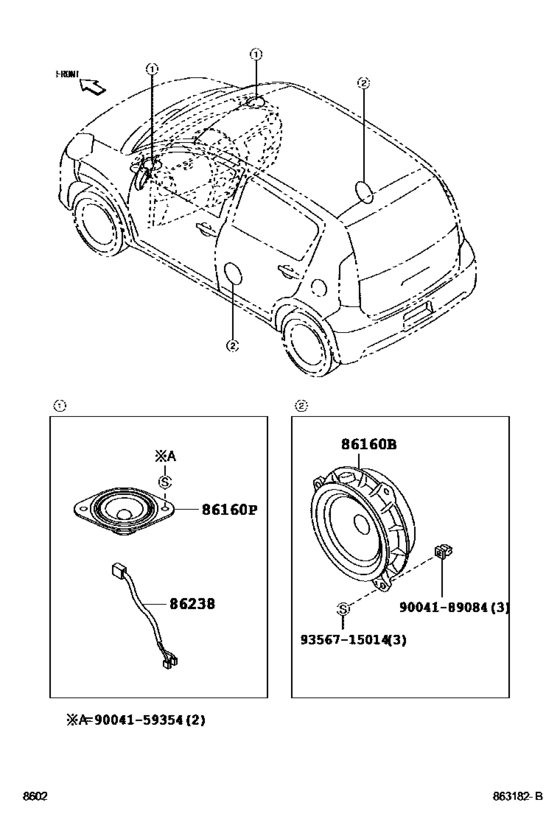

Speaker ([12.2006 - 02.2010] (0612-1002)) 9
| # | OEM | Part name |
|---|---|---|
| 86160 | 86160-B1010 | Speaker Assy, Rear |
| 86160 | 86160-B1020 | Speaker Assy, Front No.1 |
| 86160 | 86160-B1100 | Speaker Assy, Front No.1 |
| 86238 | 86238-B1010 | Wire, Speaker, No.7 |
| 86238 | 86238-B1020 | Wire, Speaker, No.7 |
| 9004159354 | 90041-59354 | New Genuine Part |
| 9004189084 | 90041-89084 | Screw, Speaker |
| 9356715014 | 93567-15014 | Direct |
| 9356715014 | 93568-55014 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 86160-B1010 | Speaker Assy, Rear | Speaker ([12.2006 - 02.2010] (0612-1002)) |
| 86160-B1020 | Speaker Assy, Front No.1 | Speaker ([12.2006 - 02.2010] (0612-1002)) |
| 86160-B1100 | Speaker Assy, Front No.1 | Speaker ([12.2006 - 02.2010] (0612-1002)) |
| 86238-B1010 | Wire, Speaker, No.7 | Speaker ([12.2006 - 02.2010] (0612-1002)) |
| 86238-B1020 | Wire, Speaker, No.7 | Speaker ([12.2006 - 02.2010] (0612-1002)) |
| 90041-59354 | New Genuine Part | Speaker ([12.2006 - 02.2010] (0612-1002)) |
| 90041-89084 | Screw, Speaker | Speaker ([12.2006 - 02.2010] (0612-1002)) |
| 93567-15014 | Direct | Speaker ([12.2006 - 02.2010] (0612-1002)) |
| 93568-55014 | Screw | Speaker ([12.2006 - 02.2010] (0612-1002)) |
