Search › Model › QNC10

QNC10

Toyota PASSO · 2004 · 3,410 parts · 186 categories
QNC10 ×

← Back to categories

3,410 items

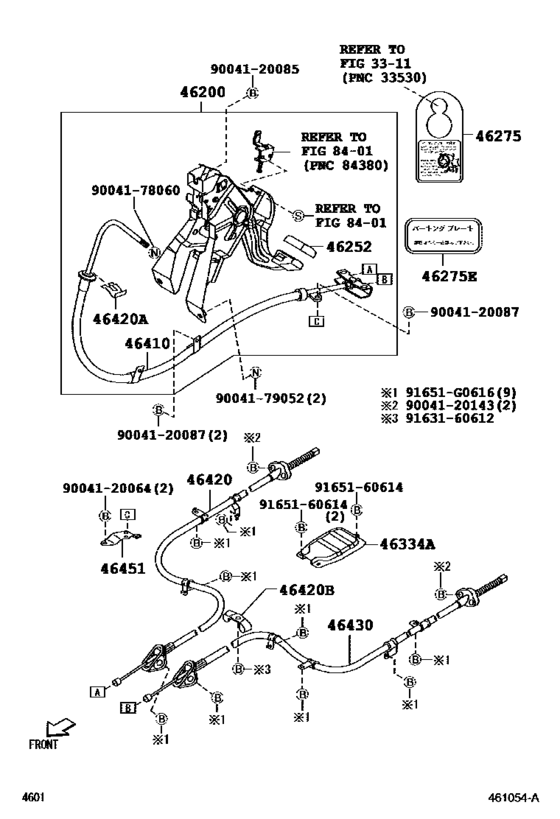

Parking Brake & Cable ([05.2004 - 02.2010] (0405-1002)KGC10,QNC10) 30
#OEMPart name
46200 46200-B1010 Pedal Assy, Parking Brake Control
46200 46200-B1040 Pedal Assy, Parking Brake Control
46252 46252-B2010 Pad, Parking Pedal
46252 46252-B2020 Pad, Parking Pedal
46275 46275-97204 Plate, Parking Brake Release Caution
46275 46275-B1010 Label, Parking Brake Release Information, No.2
46275 46275-97201 Plate, Parking Brake Release Caution
46334 57889-B1010 Protector, Parking Brake Cable Joint
46410 46410-B1010 Cable Assy, Parking Brake, No.1
46410 46410-B1011 Cable Assy, Parking Brake, No.1
46420 46420-B1010 Cable Assy, Parking Brake, No.2
46420 46420-B1011 Cable Assy, Parking Brake, No.2
46420 90044-65529 Clamp, No.1(For Parking Brake Cable)
46420 90044-65531 Clamp, No.1(For Parking Brake Cable)
46420 90044-61832 Clamp, No.2(For Parking Brake Cable)
46430 46430-B1010 Cable Assy, Parking Brake, No.3
46430 46430-B1011 Cable Assy, Parking Brake, No.3
46451 58253-B1010 Bracket, Cable Support
46451 58253-B1020 Bracket, Cable Support
91651 91651-G0616 BOLT WWASHER
9004120064 90041-20064 Bolt, W/washer
9004120085 90041-20085 Bolt(For Front Stabilizer)
9004120087 90041-20087 New Genuine Part
9004120143 90041-20143 New Genuine Part
9004120143 91611-G0612 Bolt
9004178060 90041-78060 Nut, Parking Brake Cable Adjusting, No.2
9004179052 90041-79052 NUT
9163160612 91631-60612 New Genuine Part
9163160612 91631-J0612 BRACKET
9165160614 91651-60614 Bolt
