Search › Model › QNC10

QNC10

Toyota PASSO · 2004 · 3,410 parts · 186 categories

3,410 items

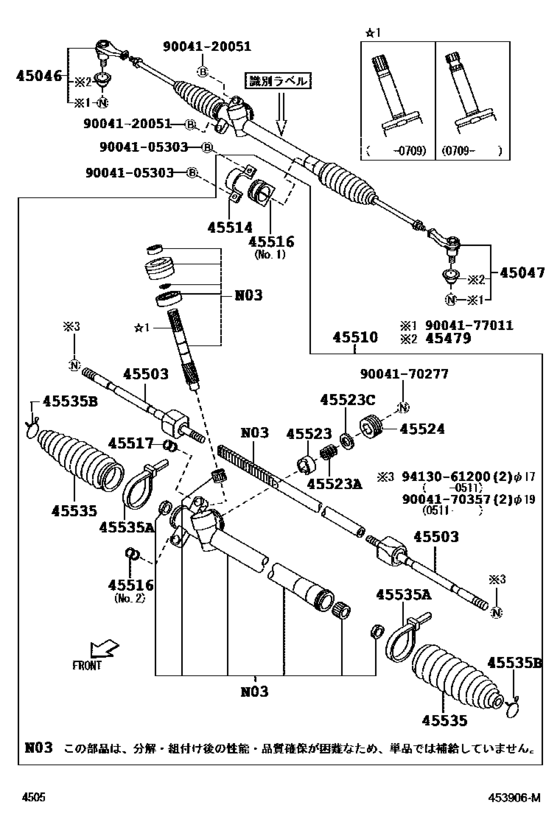

Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002)) 46

#	OEM	Part name
45046	45046-B9010	End Sub-Assy, Tie Rod, Rh
45046	45046-B9270	End Sub-Assy, Tie Rod, Rh
45046	45046-B9060	End Sub-Assy, Tie Rod, Rh
45046	45046-B9210	End Sub-Assy, Tie Rod, Rh
45047	45047-B9010	End Sub-Assy, Tie Rod, Lh
45047	45047-B9220	End Sub-Assy, Tie Rod, Lh
45047	45047-B9060	End Sub-Assy, Tie Rod, Lh
45047	45047-B9150	End Sub-Assy, Tie Rod, Lh
45479	45479-B2010	Seal, Steering Link Joint Dust
45503	45503-B1010	End Sub-Assy, Steering Rack
45503	45503-B1020	End Sub-Assy, Steering Rack
45510	45502-B1020	Gear Assy, Steering
45510	45502-B1180	Gear Assy, Steering
45510	45502-B1021	Gear Assy, Steering
45510	45502-B1022	Gear Assy, Steering
45510	45502-B1240	Gear Assy, Steering
45510	45502-B1100	Gear Assy, Steering
45510	45502-B1101	Gear Assy, Steering
45510	45502-B1103	Gear Assy, Steering
45510	45502-B1102	Gear Assy, Steering
45510	45502-B1010	Gear Assy, Steering
45510	45502-B1170	Gear Assy, Steering
45510	45502-B1011	Gear Assy, Steering
45510	45502-B1012	Gear Assy, Steering
45510	45502-B1230	Gear Assy, Steering
45514	45514-B2010	Bracket, Steering Rack Housing, No.1
45516	45516-B2010	Grommet, Steering Rack Housing, No.1
45516	45516-B2020	Grommet, Steering Rack Housing, No.1
45516	45516-B2090	Grommet, Steering Rack Housing, No.1
45517	45516-B2030	Bush, Steering Rack Housing, No.1
45517	45516-B2100	Bush, Steering Rack Housing, No.2
45523	45523-97501	Guide, Rack(For Steering Gear)
45523	45523-B1030	Guide, Rack(For Steering Gear)
45523	90045-01429	Spring(For Steering Gear Rack Guide)
45523	90042-08036	Spacer(For Rack Guide)
45524	45524-87705	Cap, Steering Rack Guide Spring
45535	45535-B2010	Boot, Steering Rack, No.1
45535	45536-87205	Clamp(For Steering Rack Boot)
45535	45538-B2020	Clamp(For Steering Rack Boot)
45535	45537-97201	Clip(For Steering Rack Boot)
9004105303	90041-05303	Bolt, Steering Rack Housing
9004120051	90041-20051	Bolt, Steering Gear Housing
9004170277	90041-70277	Nut(For Steering Rack Guide Spring Cap)
9004170357	90041-70357	Nut, Rack End Lock
9004177011	90041-77011	Nut, Lock
9413061200	94130-61200	Nut

OEM	Part name	Category
45046-B9010	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45046-B9060	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45046-B9210	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45046-B9270	End Sub-Assy, Tie Rod, Rh	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45047-B9010	End Sub-Assy, Tie Rod, Lh	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45047-B9060	End Sub-Assy, Tie Rod, Lh	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45047-B9150	End Sub-Assy, Tie Rod, Lh	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45047-B9220	End Sub-Assy, Tie Rod, Lh	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45479-B2010	Seal, Steering Link Joint Dust	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45502-B1010	Gear Assy, Steering	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45502-B1011	Gear Assy, Steering	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45502-B1012	Gear Assy, Steering	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45502-B1020	Gear Assy, Steering	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45502-B1021	Gear Assy, Steering	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45502-B1022	Gear Assy, Steering	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45502-B1100	Gear Assy, Steering	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45502-B1101	Gear Assy, Steering	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45502-B1102	Gear Assy, Steering	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45502-B1103	Gear Assy, Steering	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45502-B1170	Gear Assy, Steering	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45502-B1180	Gear Assy, Steering	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45502-B1230	Gear Assy, Steering	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45502-B1240	Gear Assy, Steering	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45503-B1010	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45503-B1020	End Sub-Assy, Steering Rack	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45514-B2010	Bracket, Steering Rack Housing, No.1	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45516-B2010	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45516-B2020	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45516-B2030	Bush, Steering Rack Housing, No.1	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45516-B2090	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45516-B2100	Bush, Steering Rack Housing, No.2	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45523-97501	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45523-B1030	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45524-87705	Cap, Steering Rack Guide Spring	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45535-B2010	Boot, Steering Rack, No.1	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45536-87205	Clamp(For Steering Rack Boot)	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45537-97201	Clip(For Steering Rack Boot)	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
45538-B2020	Clamp(For Steering Rack Boot)	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
90041-05303	Bolt, Steering Rack Housing	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
90041-20051	Bolt, Steering Gear Housing	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
90041-70277	Nut(For Steering Rack Guide Spring Cap)	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
90041-70357	Nut, Rack End Lock	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
90041-77011	Nut, Lock	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
90042-08036	Spacer(For Rack Guide)	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
90045-01429	Spring(For Steering Gear Rack Guide)	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
94130-61200	Nut	Front Steering Gear & Link ([05.2004 - 02.2010] (0405-1002))
