Search › Model › QNC10
QNC10

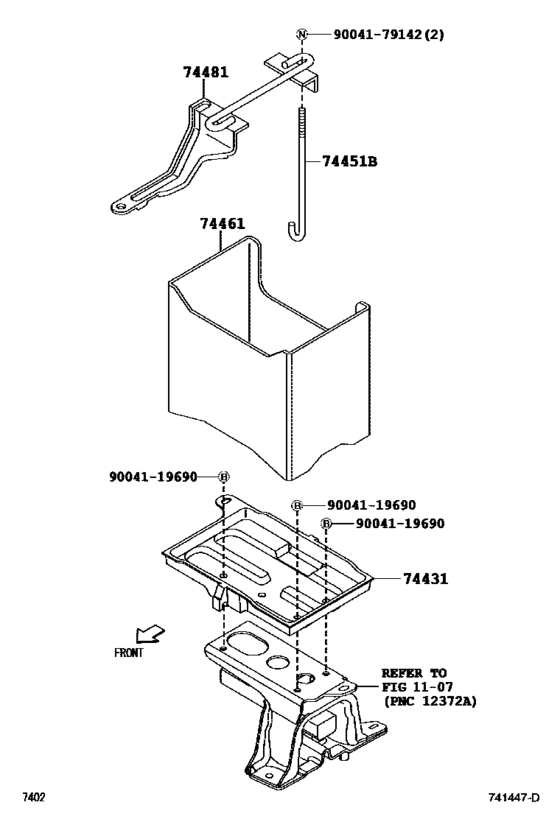

Battery Carrier ([05.2004 - 02.2010] (0405-1002)) 8
| # | OEM | Part name |
|---|---|---|
| 74431 | 74411-B1010 | Tray, Battery |
| 74431 | 74411-B1011 | Tray, Battery |
| 74451 | 74451-B1010 | Bolt, Battery Clamp |
| 74461 | 74405-97203 | Cover, Battery |
| 74461 | 74405-B1010 | Cover, Battery |
| 74481 | 74404-B1010 | Clamp, Battery Hold Down |
| 9004119690 | 90041-19690 | New Genuine Part |
| 9004179142 | 90041-79142 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 74404-B1010 | Clamp, Battery Hold Down | Battery Carrier ([05.2004 - 02.2010] (0405-1002)) |
| 74405-97203 | Cover, Battery | Battery Carrier ([05.2004 - 02.2010] (0405-1002)) |
| 74405-B1010 | Cover, Battery | Battery Carrier ([05.2004 - 02.2010] (0405-1002)) |
| 74411-B1010 | Tray, Battery | Battery Carrier ([05.2004 - 02.2010] (0405-1002)) |
| 74411-B1011 | Tray, Battery | Battery Carrier ([05.2004 - 02.2010] (0405-1002)) |
| 74451-B1010 | Bolt, Battery Clamp | Battery Carrier ([05.2004 - 02.2010] (0405-1002)) |
| 90041-19690 | New Genuine Part | Battery Carrier ([05.2004 - 02.2010] (0405-1002)) |
| 90041-79142 | New Genuine Part | Battery Carrier ([05.2004 - 02.2010] (0405-1002)) |
