Search › Model › QEA38

QEA38

Toyota RAV4-VANGUARD · 2012 · 2,038 parts · 135 categories

2,038 items

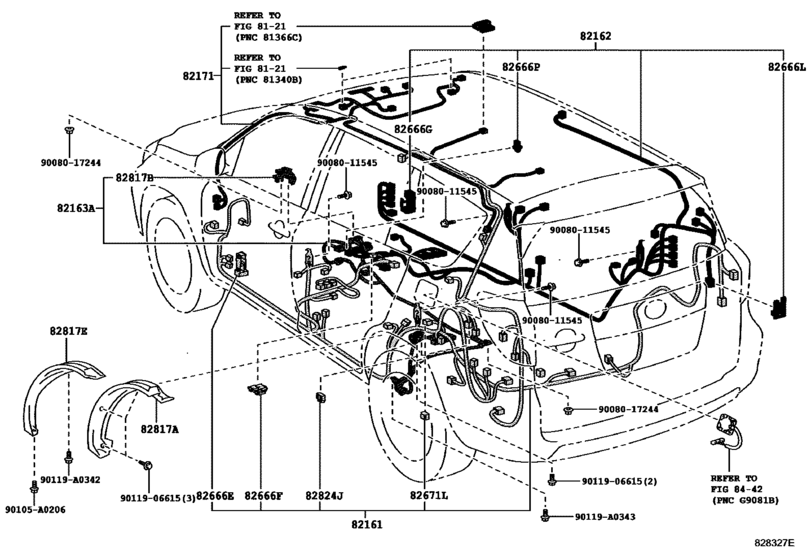

Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- )) 23

#	OEM	Part name
82161	82161-0R280	Wire, Floor
82162	82162-0R330	Wire, Floor, No.2
82162	82162-0R331	Wire, Floor, No.2
82163	82119-0R012	Wire, Motor Compartment, No.5
82163	82817-0R131	Protector, Wiring Harness, No.6
82171	82171-0R170	Wire, Roof, No.1
82666	82666-42200	Holder, Connector No.6
82666	82666-42260	Holder, Connector No.7
82666	82666-42210	Holder, Connector No.8
82666	82666-42280	Holder, Connector No.9
82666	82666-22130	Holder, Connector No.7
82671	82671-30360	Block, Junction
82817	77277-0R040	Protector, Wiring Harness, No.2
82817	82817-0R121	Protector, Wiring Harness, No.3
82817	82817-0R122	Protector, Wiring Harness, No.3
82817	82817-0R130	Protector, Wiring Harness, No.6
82824	82824-22080	Connector, Wiring Harness
90105	90105-A0206	Plug(For Fuel Sub-Tank)
90119	90119-A0342	New Genuine Part
90119	90119-A0343	New Genuine Part
9008011545	90080-11545	New Genuine Part
9008017244	90080-17244	NUT FLANGE
9011906615	90119-06615	BOLT, WWASHER

OEM	Part name	Category
77277-0R040	Protector, Wiring Harness, No.2	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
82119-0R012	Wire, Motor Compartment, No.5	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
82161-0R280	Wire, Floor	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
82162-0R330	Wire, Floor, No.2	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
82162-0R331	Wire, Floor, No.2	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
82171-0R170	Wire, Roof, No.1	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
82666-22130	Holder, Connector No.7	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
82666-42200	Holder, Connector No.6	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
82666-42210	Holder, Connector No.8	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
82666-42260	Holder, Connector No.7	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
82666-42280	Holder, Connector No.9	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
82671-30360	Block, Junction	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
82817-0R121	Protector, Wiring Harness, No.3	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
82817-0R122	Protector, Wiring Harness, No.3	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
82817-0R130	Protector, Wiring Harness, No.6	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
82817-0R131	Protector, Wiring Harness, No.6	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
82824-22080	Connector, Wiring Harness	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
90080-11545	New Genuine Part	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
90080-17244	NUT FLANGE	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
90105-A0206	Plug(For Fuel Sub-Tank)	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
90119-06615	BOLT, WWASHER	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
90119-A0342	New Genuine Part	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
90119-A0343	New Genuine Part	Wiring & Clamp ([02.2013 - ] FLOOR,FRAME & ROOF (1302- ))
