Search › Model › QEA38

QEA38

Toyota RAV4-VANGUARD · 2012 · 2,038 parts · 135 categories

2,038 items

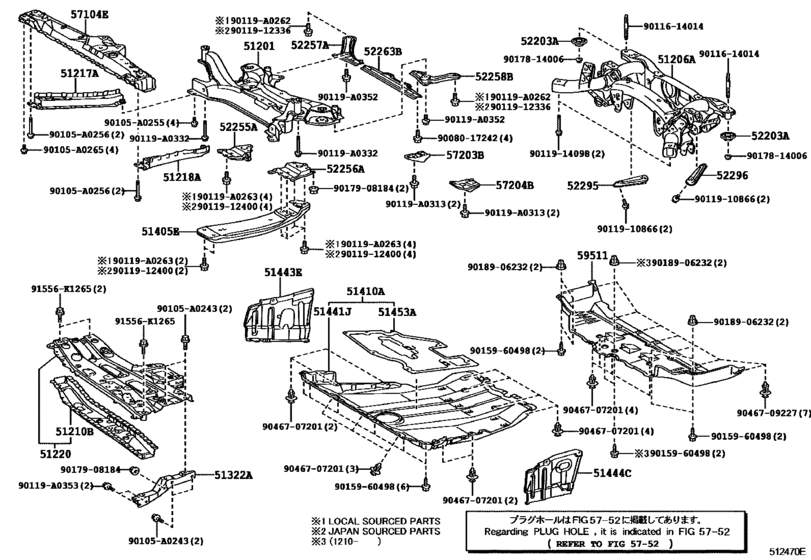

Suspension Crossmember & Under Cover ([04.2012 - ] (1204- )) 60

#	OEM	Part name
51201	51201-0R020	Crossmember Sub-Assy, Front Suspension
51201	51201-0R021	Crossmember Sub-Assy, Front Suspension
51206	51206-0R032	Member Sub-Assy, Rear Suspension
51206	51206-0R034	Member Sub-Assy, Rear Suspension
51210	51210-0R010	Crossmember Assy, Frame, No.1
51217	51107-0R010	Reinforcement, Front Suspension Member, Rh
51217	51107-42010	Reinforcement, Front Suspension Member, Rh
51217	51107-0R040	Reinforcement, Front Suspension Member, Rh
51218	51108-0R010	Reinforcement, Front Suspension Member, Lh
51218	51108-42010	Reinforcement, Front Suspension Member, Lh
51218	51108-0R030	Reinforcement, Front Suspension Member, Lh
51220	51220-0R010	Crossmember Assy, Frame, No.2
51322	51322-0R010	Bracket, Fr Suspension Crossmember, Lh
51405	51405-0R010	Brace Sub-Assy, Motor Under
51405	51405-0R011	Brace Sub-Assy, Motor Under
51410	51410-0R060	Cover Assy, Motor Under, No.1
51410	51410-0R061	Cover Assy, Motor Under, No.1
51441	51441-0R040	Cover, Motor Under
51441	51441-0R041	Cover, Motor Under
51443	51443-0R030	Cover, Motor Under, Rear Rh
51444	51444-0R020	Cover, Engine Under, Rear Lh
51453	51453-0R020	Silencer, Motor Under Cover, Front
52203	52203-0R030	Cushion Sub-Assy, Body Mounting, Rear Upper
52255	52255-0R030	Brace, Front Suspension Member, Front Rh
52256	52256-0R020	Brace, Front Suspension Member, Front Lh
52257	52257-0R031	Brace, Front Suspension Member, Rear Rh
52258	52258-0R030	Brace, Front Suspension Member, Rear Lh
52263	52263-0R010	Retainer, Front Suspension Member Cushion, No.1
52263	52263-0R011	Retainer, Front Suspension Member Cushion, No.1
52295	52295-12040	Brace, Rear Suspension Member, Rh
52296	52296-12010	Brace, Rear Suspension Member, Lh
57104	57104-0R030	Member Sub-Assy, Front Cross
57203	57203-0R010	Extension Sub-Assy, Front Side Member, No.2 Rh
57204	57204-0R010	Extension Sub-Assy, Front Side Member, No.2 Lh
59511	59511-0R010	Board, Upr Floor, No.1
59511	59511-0R011	Board, Upr Floor, No.1
59511	59511-0R012	Board, Upr Floor, No.1
90105	90105-A0243	New Genuine Part
90105	90105-A0255	New Genuine Part
90105	90105-A0256	New Genuine Part
90105	90105-A0265	New Genuine Part
90119	90119-A0262	New Genuine Part
90119	90119-A0263	New Genuine Part
90119	90119-A0313	New Genuine Part
90119	90119-A0332	New Genuine Part
90119	90119-A0352	New Genuine Part
90119	90119-A0353	New Genuine Part
91556	91556-K1265	New Genuine Part
9008017242	90080-17242	New Genuine Part
9011614014	90116-14014	New Genuine Part
9011910866	90119-10866	BOLT WWASHER
9011912336	90119-12336	BOLT WWASHER
9011912400	90119-12400	BOLT W-WASHER
9011914098	90119-14098	BOLT WWASHER
9015960498	90159-60498	SCREW W-WASHER
9017814006	90178-14006	NUT FLANGE
9017908184	90179-08184	NUT
9018906232	90189-06232	GROMMET SCREW
9046707201	90467-07201	Clamp(For Cool Air Intake)
9046709227	90467-09227	Clip, Engine Under Cover, No.2

OEM	Part name	Category
51107-0R010	Reinforcement, Front Suspension Member, Rh	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51107-0R040	Reinforcement, Front Suspension Member, Rh	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51107-42010	Reinforcement, Front Suspension Member, Rh	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51108-0R010	Reinforcement, Front Suspension Member, Lh	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51108-0R030	Reinforcement, Front Suspension Member, Lh	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51108-42010	Reinforcement, Front Suspension Member, Lh	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51201-0R020	Crossmember Sub-Assy, Front Suspension	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51201-0R021	Crossmember Sub-Assy, Front Suspension	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51206-0R032	Member Sub-Assy, Rear Suspension	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51206-0R034	Member Sub-Assy, Rear Suspension	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51210-0R010	Crossmember Assy, Frame, No.1	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51220-0R010	Crossmember Assy, Frame, No.2	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51322-0R010	Bracket, Fr Suspension Crossmember, Lh	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51405-0R010	Brace Sub-Assy, Motor Under	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51405-0R011	Brace Sub-Assy, Motor Under	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51410-0R060	Cover Assy, Motor Under, No.1	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51410-0R061	Cover Assy, Motor Under, No.1	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51441-0R040	Cover, Motor Under	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51441-0R041	Cover, Motor Under	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51443-0R030	Cover, Motor Under, Rear Rh	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51444-0R020	Cover, Engine Under, Rear Lh	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
51453-0R020	Silencer, Motor Under Cover, Front	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
52203-0R030	Cushion Sub-Assy, Body Mounting, Rear Upper	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
52255-0R030	Brace, Front Suspension Member, Front Rh	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
52256-0R020	Brace, Front Suspension Member, Front Lh	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
52257-0R031	Brace, Front Suspension Member, Rear Rh	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
52258-0R030	Brace, Front Suspension Member, Rear Lh	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
52263-0R010	Retainer, Front Suspension Member Cushion, No.1	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
52263-0R011	Retainer, Front Suspension Member Cushion, No.1	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
52295-12040	Brace, Rear Suspension Member, Rh	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
52296-12010	Brace, Rear Suspension Member, Lh	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
57104-0R030	Member Sub-Assy, Front Cross	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
57203-0R010	Extension Sub-Assy, Front Side Member, No.2 Rh	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
57204-0R010	Extension Sub-Assy, Front Side Member, No.2 Lh	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
59511-0R010	Board, Upr Floor, No.1	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
59511-0R011	Board, Upr Floor, No.1	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
59511-0R012	Board, Upr Floor, No.1	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90080-17242	New Genuine Part	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90105-A0243	New Genuine Part	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90105-A0255	New Genuine Part	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90105-A0256	New Genuine Part	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90105-A0265	New Genuine Part	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90116-14014	New Genuine Part	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90119-10866	BOLT WWASHER	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90119-12336	BOLT WWASHER	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90119-12400	BOLT W-WASHER	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90119-14098	BOLT WWASHER	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90119-A0262	New Genuine Part	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90119-A0263	New Genuine Part	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90119-A0313	New Genuine Part	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90119-A0332	New Genuine Part	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90119-A0352	New Genuine Part	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90119-A0353	New Genuine Part	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90159-60498	SCREW W-WASHER	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90178-14006	NUT FLANGE	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90179-08184	NUT	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90189-06232	GROMMET SCREW	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90467-07201	Clamp(For Cool Air Intake)	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
90467-09227	Clip, Engine Under Cover, No.2	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))
91556-K1265	New Genuine Part	Suspension Crossmember & Under Cover ([04.2012 - ] (1204- ))

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 135
Collected: 2026-08-02
