QEA38

Toyota RAV4-VANGUARD · 2012 · 2,038 parts · 135 categories

2,038 items

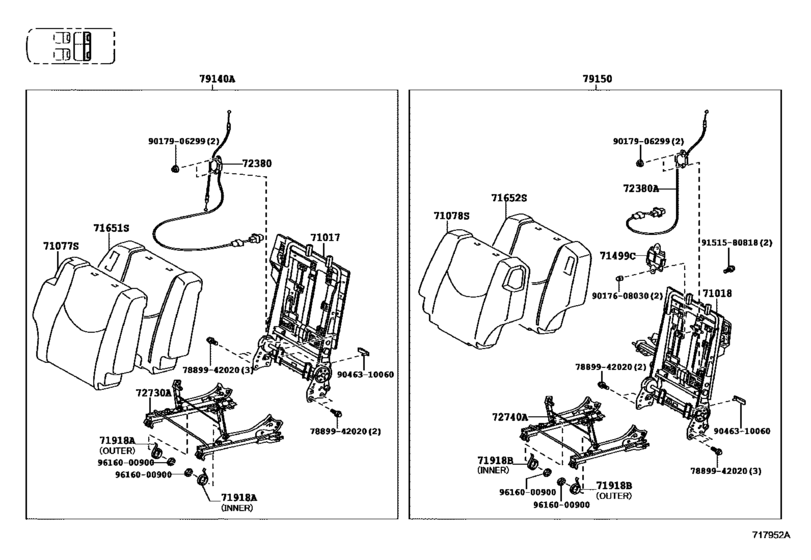

Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- )) 21

#	OEM	Part name
71017	71017-0R011	Frame Sub-Assy, Rear Seat Back, Rh
71018	71018-0R011	Frame Sub-Assy, Rear Seat Back, Lh
71077	71077-0R110-B1	Cover, Rear Seat Back, Rh (For Separate Type)
71078	71078-0R110-B1	Cover, Rear Seat Back, Lh(For Separate Type)
71499	71499-0R010	Damper, Rear Seat Cushion Spring
71651	71651-0R010	Pad, Rear Seat Back, Rh(For Separate Type)
71652	71652-0R010	Pad, Rear Seat Back, Lh(For Separate Type)
71918	71918-0R010	Spring, Center Seat Cushion Catch
71918	71918-0R020	Spring, Center Seat Cushion Catch
72380	72380-0R030	Cable Assy, Seat Adjuster Control, No.2
72380	72380-0R040	Cable Assy, Seat Adjuster Control, No.2
72730	72730-0R010	Adjuster Assy, Rear Seat Reclining, Rh
72740	72740-0R010	Adjuster Assy, Rear Seat Reclining, Lh
79140	79140-0R110-B1	Back Assy, No.1 Seat
79150	79150-0R110-B1	Back Assy, No.1 Seat, Lh
7889942020	78899-42020	Bolt, Front Seat
9017608030	90176-08030	NUT
9017906299	90179-06299	Nut, Wire Adjusting, No.1
9046310060	90463-10060	New Genuine Part
9151580818	91515-80818	New Genuine Part
9616000900	96160-00900	Ring, E(For Injection Pump Lever)

OEM	Part name	Category
71017-0R011	Frame Sub-Assy, Rear Seat Back, Rh	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
71018-0R011	Frame Sub-Assy, Rear Seat Back, Lh	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
71077-0R110-B1	Cover, Rear Seat Back, Rh (For Separate Type)	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
71078-0R110-B1	Cover, Rear Seat Back, Lh(For Separate Type)	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
71499-0R010	Damper, Rear Seat Cushion Spring	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
71651-0R010	Pad, Rear Seat Back, Rh(For Separate Type)	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
71652-0R010	Pad, Rear Seat Back, Lh(For Separate Type)	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
71918-0R010	Spring, Center Seat Cushion Catch	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
71918-0R020	Spring, Center Seat Cushion Catch	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
72380-0R030	Cable Assy, Seat Adjuster Control, No.2	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
72380-0R040	Cable Assy, Seat Adjuster Control, No.2	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
72730-0R010	Adjuster Assy, Rear Seat Reclining, Rh	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
72740-0R010	Adjuster Assy, Rear Seat Reclining, Lh	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
78899-42020	Bolt, Front Seat	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
79140-0R110-B1	Back Assy, No.1 Seat	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
79150-0R110-B1	Back Assy, No.1 Seat, Lh	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
90176-08030	NUT	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
90179-06299	Nut, Wire Adjusting, No.1	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
90463-10060	New Genuine Part	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
91515-80818	New Genuine Part	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
96160-00900	Ring, E(For Injection Pump Lever)	Seat & Seat Track ([04.2012 - ] REAR SEAT BACK (1204- ))
