Search › Model › QEA38

QEA38

Toyota RAV4-VANGUARD · 2012 · 2,038 parts · 135 categories

2,038 items

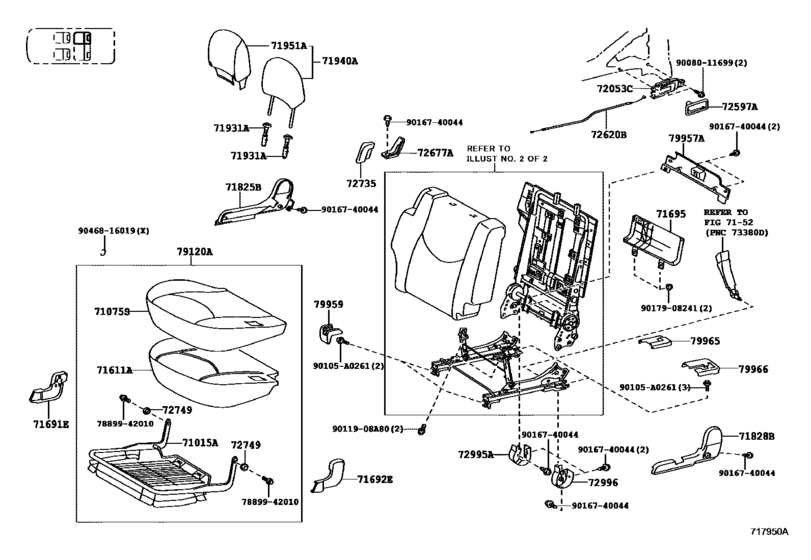

Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- )) 32

#	OEM	Part name
71015	71650-0R010	Frame Sub-Assy, Rear Seat Cushion, Rh
71075	71075-0R090-B2	Cover, Rear Seat Cushion, Rh (For Separate Type)
71611	71611-0R010	Pad, Rear Seat Cushion, Rh
71691	71691-0R010-B1	Cover, Rear Seat Cushion Hinge, No.1
71692	71692-0R010-B1	Cover, Rear Seat Cushion Hinge, No.2
71695	71695-0R010	Protector, Rear Seat Back
71825	71825-0R010-B1	Moulding, Rear Seat Cushion, Rh
71828	71828-0R010-B1	Moulding, Rear Seat Cushion, Rear Rh
71931	71930-44020-B2	Support, Front Seat Headrest
71931	71931-47010-P4	Support, Front Seat Headrest
71940	71940-0R090-B1	Headrest Assy, Rear Seat
71951	71951-0R020-B1	Cover, Rear Seat Headrest
72053	72053-0R010	Lever Sub-Assy, Reclining Remote Control, Rh
72597	72597-0R010	Bezel, Reclining Remote Control Lever, Rh
72620	72620-0R010	Cable Assy, Rear No.1 Seat Lock
72677	72677-0R010-B1	Base, Rear Seat Back Lock Control Lever, Rh
72735	72735-0R010-B1	Lever, Rear Seat Reclining Release
72749	72749-48010	Spacer, Rear Seat Reclining
72995	72995-0R010-B1	Cover, Rear Seat
72996	72996-0R010-B1	Cover, Rear Seat Back, Rh
79120	79120-0R090-B2	Cushion Assy, No.1 Seat
79957	79957-0R010-B1	Cover, Rear Seat Rear Bracket, Rh
79959	79959-0R010-B1	Cover, Rr Seat Leg
79965	79965-0R010-B1	Cover, Rear Seat Leg Side, No.2
79966	79966-0R010-B1	Cover, Rear Seat Leg Side, No.3
90105	90105-A0261	New Genuine Part
9011908	90119-08A80	Bolt
7889942010	78899-42010	Bolt, Front Seat
9008011699	90080-11699	Bolt, W/washer
9016740044	90167-40044	BOLT
9017908241	90179-08241	NUT
9046816019	90468-16019	Clip (For Rear Seat Back)

OEM	Part name	Category
71075-0R090-B2	Cover, Rear Seat Cushion, Rh (For Separate Type)	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
71611-0R010	Pad, Rear Seat Cushion, Rh	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
71650-0R010	Frame Sub-Assy, Rear Seat Cushion, Rh	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
71691-0R010-B1	Cover, Rear Seat Cushion Hinge, No.1	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
71692-0R010-B1	Cover, Rear Seat Cushion Hinge, No.2	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
71695-0R010	Protector, Rear Seat Back	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
71825-0R010-B1	Moulding, Rear Seat Cushion, Rh	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
71828-0R010-B1	Moulding, Rear Seat Cushion, Rear Rh	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
71930-44020-B2	Support, Front Seat Headrest	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
71931-47010-P4	Support, Front Seat Headrest	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
71940-0R090-B1	Headrest Assy, Rear Seat	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
71951-0R020-B1	Cover, Rear Seat Headrest	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
72053-0R010	Lever Sub-Assy, Reclining Remote Control, Rh	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
72597-0R010	Bezel, Reclining Remote Control Lever, Rh	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
72620-0R010	Cable Assy, Rear No.1 Seat Lock	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
72677-0R010-B1	Base, Rear Seat Back Lock Control Lever, Rh	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
72735-0R010-B1	Lever, Rear Seat Reclining Release	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
72749-48010	Spacer, Rear Seat Reclining	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
72995-0R010-B1	Cover, Rear Seat	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
72996-0R010-B1	Cover, Rear Seat Back, Rh	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
78899-42010	Bolt, Front Seat	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
79120-0R090-B2	Cushion Assy, No.1 Seat	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
79957-0R010-B1	Cover, Rear Seat Rear Bracket, Rh	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
79959-0R010-B1	Cover, Rr Seat Leg	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
79965-0R010-B1	Cover, Rear Seat Leg Side, No.2	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
79966-0R010-B1	Cover, Rear Seat Leg Side, No.3	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
90080-11699	Bolt, W/washer	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
90105-A0261	New Genuine Part	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
90119-08A80	Bolt	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
90167-40044	BOLT	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
90179-08241	NUT	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
90468-16019	Clip (For Rear Seat Back)	Seat & Seat Track ([04.2012 - ] REAR RH SEAT (1204- ))
