Search › Model › QEA38

QEA38

Toyota RAV4-VANGUARD · 2012 · 2,038 parts · 135 categories

2,038 items

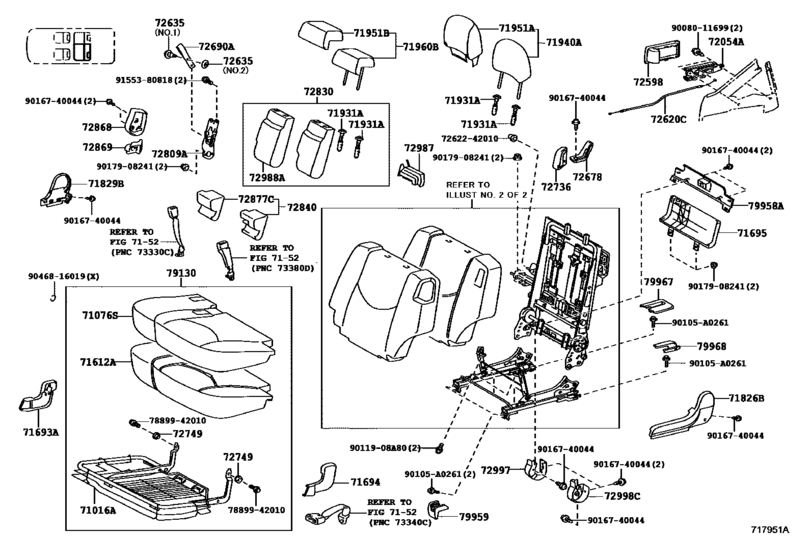

Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- )) 47

#	OEM	Part name
71016	71660-0R010	Frame Sub-Assy, Rear Seat Cushion, Lh
71076	71076-0R090-B2	Cover, Rear Seat Cushion, Lh (For Separate Type)
71612	71612-0R010	Pad, Rear Seat Cushion, Lh
71693	71693-0R010-B1	Cover, Rear Seat Cushion Hinge, No.3
71694	71694-0R010-B1	Cover, Rear Seat Cushion Hinge, Lower Lh
71695	71695-0R010	Protector, Rear Seat Back
71826	71826-0R010-B1	Moulding, Rear Seat Cushion, Lh
71829	71829-0R010-B1	Moulding, Rear Seat Cushion, Rear Lh
71931	71930-44020-B2	Support, Front Seat Headrest
71931	71931-47010-P4	Support, Front Seat Headrest
71940	71940-0R090-B1	Headrest Assy, Rear Seat
71951	71951-0R020-B1	Cover, Rear Seat Headrest
71951	71951-0R030-B1	Cover, Rear Seat Headrest, Center
71960	71960-0R080-B1	Headrest Assy, Rear Seat, Center
72054	72054-0R010	Lever Sub-Assy, Reclining Remote Control, Lh
72598	72597-0R010	Bezel, Reclining Remote Control Lever, Rh
72620	72620-0R020	Cable Assy, Rear No.1 Seat Lock
72635	72635-0R010-B1	Hook, Rear Seat Back Lock
72635	72635-0R020-B1	Hook, Rear Seat Back Lock
72678	72678-0R010-B1	Base, Rear Seat Back Lock Control Lever, Lh
72690	72690-42010-B1	Strap Assy, Rear Seat Lock Release
72736	72736-0R010-B1	Lever, Rear Seat Reclining Release, Lh
72749	72749-48010	Spacer, Rear Seat Reclining
72809	72809-0R010	Lock Sub-Assy, Center Armrest
72830	72830-0R080-B0	Armrest Assy, Rear Seat, Center
72840	72840-0R060-B0	Armrest Assy, Rear No.1 Seat, Lh
72868	72868-0R010-B1	Cover, Center Armrest Hinge, Rh
72869	72869-0R010-B1	Cover, Center Armrest Hinge, Lh
72877	72877-0R010-B0	Cover, Seat Armrest
72987	72987-0R010-B1	Cover, Rear Seat Center Armrest
72988	72987-0R030-B0	Cover, Rear Seat Center Armrest, No.2
72997	72997-0R010-B1	Cover, Rear Seat Back, Lh
72998	72998-0R010-B1	Cover, Rear Seat, Lh
79130	79130-0R090-B2	Cushion Assy, No.1 Seat, Lh
79958	79958-0R010-B1	Cover, Rear Seat Rear Bracket, Lh
79959	79959-0R010-B1	Cover, Rr Seat Leg
79967	79967-0R010-B1	Cover, Rear Seat Leg Side, No.4
79968	79968-0R010-B1	Cover, Rear Seat Leg Side, No.5
90105	90105-A0261	New Genuine Part
9011908	90119-08A80	Bolt
7262242010	72622-42010	Rod, Rear Seat Back Stopper Connecting
7889942010	78899-42010	Bolt, Front Seat
9008011699	90080-11699	Bolt, W/washer
9016740044	90167-40044	BOLT
9017908241	90179-08241	NUT
9046816019	90468-16019	Clip (For Rear Seat Back)
9155380818	91553-80818	BOLT FLANGE

OEM	Part name	Category
71076-0R090-B2	Cover, Rear Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
71612-0R010	Pad, Rear Seat Cushion, Lh	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
71660-0R010	Frame Sub-Assy, Rear Seat Cushion, Lh	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
71693-0R010-B1	Cover, Rear Seat Cushion Hinge, No.3	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
71694-0R010-B1	Cover, Rear Seat Cushion Hinge, Lower Lh	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
71695-0R010	Protector, Rear Seat Back	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
71826-0R010-B1	Moulding, Rear Seat Cushion, Lh	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
71829-0R010-B1	Moulding, Rear Seat Cushion, Rear Lh	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
71930-44020-B2	Support, Front Seat Headrest	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
71931-47010-P4	Support, Front Seat Headrest	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
71940-0R090-B1	Headrest Assy, Rear Seat	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
71951-0R020-B1	Cover, Rear Seat Headrest	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
71951-0R030-B1	Cover, Rear Seat Headrest, Center	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
71960-0R080-B1	Headrest Assy, Rear Seat, Center	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72054-0R010	Lever Sub-Assy, Reclining Remote Control, Lh	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72597-0R010	Bezel, Reclining Remote Control Lever, Rh	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72620-0R020	Cable Assy, Rear No.1 Seat Lock	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72622-42010	Rod, Rear Seat Back Stopper Connecting	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72635-0R010-B1	Hook, Rear Seat Back Lock	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72635-0R020-B1	Hook, Rear Seat Back Lock	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72678-0R010-B1	Base, Rear Seat Back Lock Control Lever, Lh	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72690-42010-B1	Strap Assy, Rear Seat Lock Release	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72736-0R010-B1	Lever, Rear Seat Reclining Release, Lh	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72749-48010	Spacer, Rear Seat Reclining	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72809-0R010	Lock Sub-Assy, Center Armrest	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72830-0R080-B0	Armrest Assy, Rear Seat, Center	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72840-0R060-B0	Armrest Assy, Rear No.1 Seat, Lh	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72868-0R010-B1	Cover, Center Armrest Hinge, Rh	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72869-0R010-B1	Cover, Center Armrest Hinge, Lh	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72877-0R010-B0	Cover, Seat Armrest	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72987-0R010-B1	Cover, Rear Seat Center Armrest	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72987-0R030-B0	Cover, Rear Seat Center Armrest, No.2	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72997-0R010-B1	Cover, Rear Seat Back, Lh	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
72998-0R010-B1	Cover, Rear Seat, Lh	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
78899-42010	Bolt, Front Seat	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
79130-0R090-B2	Cushion Assy, No.1 Seat, Lh	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
79958-0R010-B1	Cover, Rear Seat Rear Bracket, Lh	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
79959-0R010-B1	Cover, Rr Seat Leg	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
79967-0R010-B1	Cover, Rear Seat Leg Side, No.4	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
79968-0R010-B1	Cover, Rear Seat Leg Side, No.5	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
90080-11699	Bolt, W/washer	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
90105-A0261	New Genuine Part	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
90119-08A80	Bolt	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
90167-40044	BOLT	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
90179-08241	NUT	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
90468-16019	Clip (For Rear Seat Back)	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))
91553-80818	BOLT FLANGE	Seat & Seat Track ([04.2012 - ] REAR LH SEAT (1204- ))

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 135
Collected: 2026-08-02
