Search › Model › QEA38

QEA38

Toyota RAV4-VANGUARD · 2012 · 2,038 parts · 135 categories

2,038 items

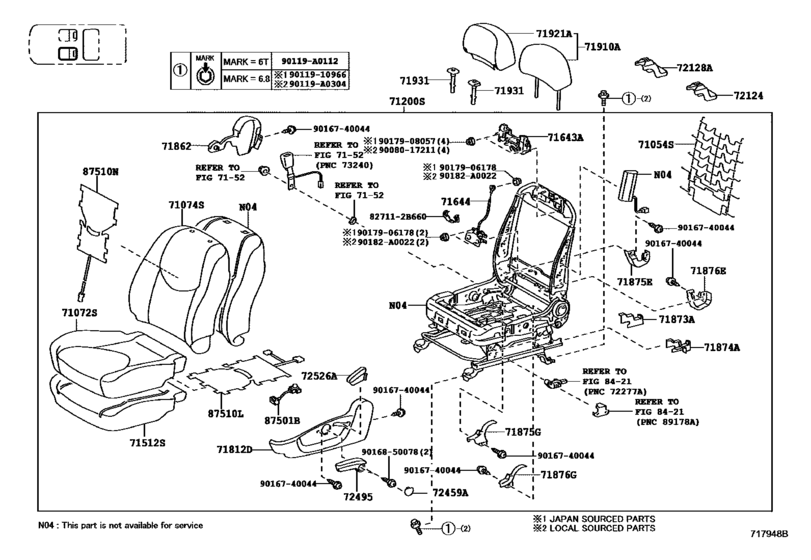

Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- )) 37

#	OEM	Part name
71054	71053-02160	Spring Sub-Assy, Front Seat Back, Rh
71072	71072-0R100-B1	Cover, Front Seat Cushion, Lh(For Separate Type)
71074	71074-0R100-B2	Cover, Front Seat Back, Lh(For Separate Type)
71200	71200-0R220-B1	Seat Assy, Front Lh
71512	71512-0R010	Pad, Front Seat Cushion, Lh (For Separate Type)
71643	71643-04010	Unit, Active Headrest, Upr
71644	71644-04010	Unit, Active Headrest, Lwr
71812	71812-0R010-B1	Shield, Front Seat Cushion, Lh
71862	71862-0R010-B1	Shield, Front Seat Cushion, Inner Lh
71873	71873-0R010	Shield, Front Seat Cushion, Lower Rh
71874	71874-0R010	Shield, Front Seat Cushion, Lower Lh
71875	71875-AA060	Shield, Front Seat Back, Rh
71875	71875-06350-B1	Cover, Reclining Adjuster Inside, Rh
71876	71876-AA060	Shield, Front Seat Back, Lh
71876	71876-06380-B1	Cover, Reclining Adjuster Inside, Lh
71910	71910-0R090-B1	Headrest Assy, Front Seat
71921	71921-0R060-B1	Cover, Front Seat Headrest
71931	71930-44020-B2	Support, Front Seat Headrest
71931	71931-47010-P4	Support, Front Seat Headrest
72124	72123-0R010-B1	Cover, Seat Track Bracket, Outer Front Rh
72128	72128-0R010-B1	Cover, Seat Track Bracket, Inner Front Lh
72459	72459-06010-B0	Cap, Vertical Seat Adjuster Knob
72495	72495-0R010-B1	Handle, Vertical Adjusting, Lh
72526	72526-06020-B0	Handle, Reclining Adjuster Release, Lh
87501	87501-0R010	Control Sub-Assy, Seat Heater, Lh
87510	87510-0R070	Heater Assy, Front Seat Cushion, Rh
87510	87510-0R100	Heater Assy, Front Seat Back, Rh
90119	90119-A0112	New Genuine Part
90119	90119-A0304	New Genuine Part
90182	90182-A0022	NUT WWASHER
827112	82711-2B660	Clamp, Wiring Harness
9008017211	90080-17211	New Genuine Part
9011910966	90119-10966	BOLT WWASHER
9016740044	90167-40044	BOLT
9016850078	90168-50078	SCREW TAPPING
9017906178	90179-06178	Nut (For Rear Wiper Arm Setting)
9017908057	90179-08057	NUT

OEM	Part name	Category
71053-02160	Spring Sub-Assy, Front Seat Back, Rh	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71072-0R100-B1	Cover, Front Seat Cushion, Lh(For Separate Type)	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71074-0R100-B2	Cover, Front Seat Back, Lh(For Separate Type)	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71200-0R220-B1	Seat Assy, Front Lh	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71512-0R010	Pad, Front Seat Cushion, Lh (For Separate Type)	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71643-04010	Unit, Active Headrest, Upr	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71644-04010	Unit, Active Headrest, Lwr	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71812-0R010-B1	Shield, Front Seat Cushion, Lh	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71862-0R010-B1	Shield, Front Seat Cushion, Inner Lh	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71873-0R010	Shield, Front Seat Cushion, Lower Rh	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71874-0R010	Shield, Front Seat Cushion, Lower Lh	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71875-06350-B1	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71875-AA060	Shield, Front Seat Back, Rh	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71876-06380-B1	Cover, Reclining Adjuster Inside, Lh	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71876-AA060	Shield, Front Seat Back, Lh	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71910-0R090-B1	Headrest Assy, Front Seat	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71921-0R060-B1	Cover, Front Seat Headrest	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71930-44020-B2	Support, Front Seat Headrest	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
71931-47010-P4	Support, Front Seat Headrest	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
72123-0R010-B1	Cover, Seat Track Bracket, Outer Front Rh	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
72128-0R010-B1	Cover, Seat Track Bracket, Inner Front Lh	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
72459-06010-B0	Cap, Vertical Seat Adjuster Knob	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
72495-0R010-B1	Handle, Vertical Adjusting, Lh	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
72526-06020-B0	Handle, Reclining Adjuster Release, Lh	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
82711-2B660	Clamp, Wiring Harness	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
87501-0R010	Control Sub-Assy, Seat Heater, Lh	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
87510-0R070	Heater Assy, Front Seat Cushion, Rh	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
87510-0R100	Heater Assy, Front Seat Back, Rh	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
90080-17211	New Genuine Part	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
90119-10966	BOLT WWASHER	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
90119-A0112	New Genuine Part	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
90119-A0304	New Genuine Part	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
90167-40044	BOLT	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
90168-50078	SCREW TAPPING	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
90179-06178	Nut (For Rear Wiper Arm Setting)	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
90179-08057	NUT	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))
90182-A0022	NUT WWASHER	Seat & Seat Track ([04.2012 - ] FRONT LH SEAT (1204- ))

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 135
Collected: 2026-08-02
