Search › Model › QEA38

QEA38

Toyota RAV4-VANGUARD · 2012 · 2,038 parts · 135 categories

2,038 items

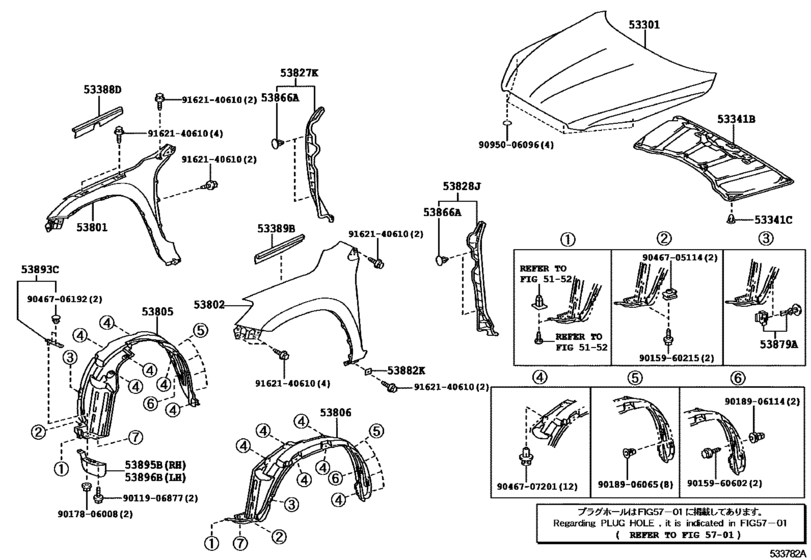

Hood & Front Fender ([04.2012 - ] (1204- )) 28

#	OEM	Part name
53301	53301-0R020	Hood Sub-Assy
53341	53341-0R010	Insulator, Hood
53341	90467-09050	Clip(For Hood Insulator)
53388	53388-0R010	Seal, Hood To Front Fender, Rh
53389	53389-0R010	Seal, Hood To Front Fender, Lh
53801	53801-0R050	Fender Sub-Assy, Front Rh
53802	53802-0R020	Fender Sub-Assy, Front Lh
53805	53805-0R010	Shield Sub-Assy, Front Fender Splash, Rh
53806	53806-0R010	Shield Sub-Assy, Front Fender Splash, Lh
53827	53827-0R010	Protector, Front Fender Side Panel, Rh
53828	53828-0R010	Protector, Front Fender Side Panel, Lh
53866	90467-10005-C0	Clip
53879	53879-0R010	Retainer, Front Fender Liner
53882	53882-16030	Pad, Rear Bumper, Center
53893	53893-0R010	Retainer, Front Fender Splash Shield, Front
53895	53895-0R010	Shield, Front Fender Splash, Front Rh
53896	53896-0R010	Shield, Front Fender Splash, Front Lh
9011906877	90119-06877	BOLT WWASHER
9015960215	90159-60215	SCREW
9015960602	90159-60602	SCREW
9017806008	90178-06008	NUT FLANGE
9018906065	90189-06065	CLIP
9018906114	90189-06114	GROMMET SCREW
9046705114	90467-05114	Clip(For Front Bumper), No.1
9046706192	90467-06192	Clip, Front Fender Liner
9046707201	90467-07201	Clamp(For Cool Air Intake)
9095006096	90950-06096	Plug, Hole(For Hood)
9162140610	91621-40610	BOLT

OEM	Part name	Category
53301-0R020	Hood Sub-Assy	Hood & Front Fender ([04.2012 - ] (1204- ))
53341-0R010	Insulator, Hood	Hood & Front Fender ([04.2012 - ] (1204- ))
53388-0R010	Seal, Hood To Front Fender, Rh	Hood & Front Fender ([04.2012 - ] (1204- ))
53389-0R010	Seal, Hood To Front Fender, Lh	Hood & Front Fender ([04.2012 - ] (1204- ))
53801-0R050	Fender Sub-Assy, Front Rh	Hood & Front Fender ([04.2012 - ] (1204- ))
53802-0R020	Fender Sub-Assy, Front Lh	Hood & Front Fender ([04.2012 - ] (1204- ))
53805-0R010	Shield Sub-Assy, Front Fender Splash, Rh	Hood & Front Fender ([04.2012 - ] (1204- ))
53806-0R010	Shield Sub-Assy, Front Fender Splash, Lh	Hood & Front Fender ([04.2012 - ] (1204- ))
53827-0R010	Protector, Front Fender Side Panel, Rh	Hood & Front Fender ([04.2012 - ] (1204- ))
53828-0R010	Protector, Front Fender Side Panel, Lh	Hood & Front Fender ([04.2012 - ] (1204- ))
53879-0R010	Retainer, Front Fender Liner	Hood & Front Fender ([04.2012 - ] (1204- ))
53882-16030	Pad, Rear Bumper, Center	Hood & Front Fender ([04.2012 - ] (1204- ))
53893-0R010	Retainer, Front Fender Splash Shield, Front	Hood & Front Fender ([04.2012 - ] (1204- ))
53895-0R010	Shield, Front Fender Splash, Front Rh	Hood & Front Fender ([04.2012 - ] (1204- ))
53896-0R010	Shield, Front Fender Splash, Front Lh	Hood & Front Fender ([04.2012 - ] (1204- ))
90119-06877	BOLT WWASHER	Hood & Front Fender ([04.2012 - ] (1204- ))
90159-60215	SCREW	Hood & Front Fender ([04.2012 - ] (1204- ))
90159-60602	SCREW	Hood & Front Fender ([04.2012 - ] (1204- ))
90178-06008	NUT FLANGE	Hood & Front Fender ([04.2012 - ] (1204- ))
90189-06065	CLIP	Hood & Front Fender ([04.2012 - ] (1204- ))
90189-06114	GROMMET SCREW	Hood & Front Fender ([04.2012 - ] (1204- ))
90467-05114	Clip(For Front Bumper), No.1	Hood & Front Fender ([04.2012 - ] (1204- ))
90467-06192	Clip, Front Fender Liner	Hood & Front Fender ([04.2012 - ] (1204- ))
90467-07201	Clamp(For Cool Air Intake)	Hood & Front Fender ([04.2012 - ] (1204- ))
90467-09050	Clip(For Hood Insulator)	Hood & Front Fender ([04.2012 - ] (1204- ))
90467-10005-C0	Clip	Hood & Front Fender ([04.2012 - ] (1204- ))
90950-06096	Plug, Hole(For Hood)	Hood & Front Fender ([04.2012 - ] (1204- ))
91621-40610	BOLT	Hood & Front Fender ([04.2012 - ] (1204- ))
