Search › Model › QEA38

QEA38

Toyota RAV4-VANGUARD · 2012 · 2,038 parts · 135 categories

2,038 items

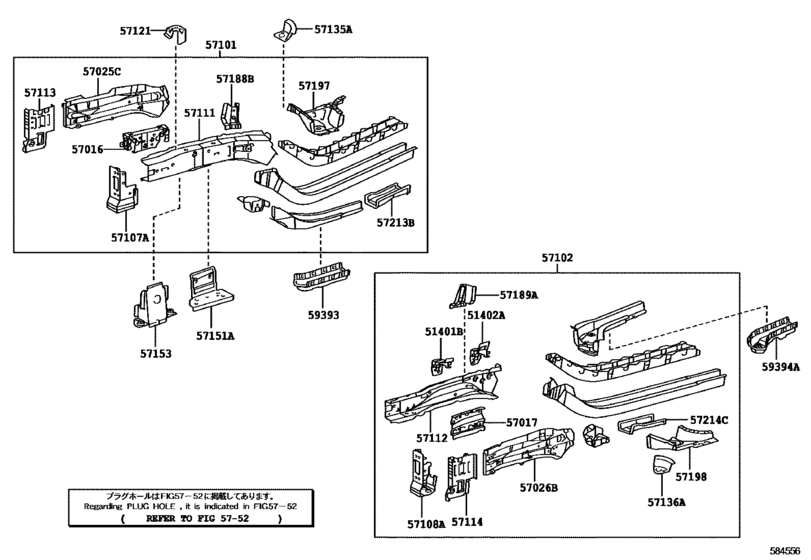

Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- )) 29

#	OEM	Part name
51401	51401-0R010	Bracket Sub-Assy, Engine Front Mounting
51402	51402-0R010	Bracket Sub-Assy, Engine Front Mounting, Lh
57016	57016-0R010	Reinforcement Sub-Assy, Front Side Member, Rh
57017	57017-0R010	Reinforcement Sub-Assy, Front Side Member, Lh
57025	57025-0R010	Member Sub-Assy, Front Side, Outer Rh
57026	57026-0R010	Member Sub-Assy, Front Side, Outer Lh
57101	57101-0R030	Member Sub-Assy, Front Side, Rh
57102	57102-0R040	Member Sub-Assy, Front Side, Lh
57107	57107-0R010	Plate Sub-Assy, Front Side Member, No.2 Rh
57107	57107-0R011	Plate Sub-Assy, Front Side Member, No.2 Rh
57108	57108-0R010	Plate Sub-Assy, Front Side Member, No.2 Lh
57108	57108-0R011	Plate Sub-Assy, Front Side Member, No.2 Lh
57111	57111-0R010	Member, Front Side, Rh
57112	57112-0R011	Member, Front Side, Lh
57113	57113-0R010	Extension, Front Side Member, Rh
57114	57114-0R010	Extension, Front Side Member, Lh
57121	57121-0R010	Bracket, Front Body Mounting, Rh
57135	57135-0R010	Bracket, Front Floor Side, Rh
57136	57136-0R010	Bracket, Front Floor Side, Lh
57151	57153-0R010	Reinforcement, Front Side Member, No.1 Rh
57153	57154-0R010	Reinforcement, Front Side Member, No.2 Rh
57188	57188-0R010	Gusset, Front Side Member To Spring Support, Rh
57189	57189-0R010	Gusset, Front Side Member To Spring Support, Lh
57197	57197-0R010	Box, Torque, Front Rh
57198	57198-0R010	Box, Torque, Front Lh
57213	57217-0R010	Extension, Front Side Member, No.2 Rh
57214	57228-0R010	Extension, Front Side Member, No.2 Lh
59393	59503-0R010	Bracket, Floor Step Support
59394	59504-0R010	Bracket, Floor Step Support, No.2

OEM	Part name	Category
51401-0R010	Bracket Sub-Assy, Engine Front Mounting	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
51402-0R010	Bracket Sub-Assy, Engine Front Mounting, Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57016-0R010	Reinforcement Sub-Assy, Front Side Member, Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57017-0R010	Reinforcement Sub-Assy, Front Side Member, Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57025-0R010	Member Sub-Assy, Front Side, Outer Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57026-0R010	Member Sub-Assy, Front Side, Outer Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57101-0R030	Member Sub-Assy, Front Side, Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57102-0R040	Member Sub-Assy, Front Side, Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57107-0R010	Plate Sub-Assy, Front Side Member, No.2 Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57107-0R011	Plate Sub-Assy, Front Side Member, No.2 Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57108-0R010	Plate Sub-Assy, Front Side Member, No.2 Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57108-0R011	Plate Sub-Assy, Front Side Member, No.2 Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57111-0R010	Member, Front Side, Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57112-0R011	Member, Front Side, Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57113-0R010	Extension, Front Side Member, Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57114-0R010	Extension, Front Side Member, Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57121-0R010	Bracket, Front Body Mounting, Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57135-0R010	Bracket, Front Floor Side, Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57136-0R010	Bracket, Front Floor Side, Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57153-0R010	Reinforcement, Front Side Member, No.1 Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57154-0R010	Reinforcement, Front Side Member, No.2 Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57188-0R010	Gusset, Front Side Member To Spring Support, Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57189-0R010	Gusset, Front Side Member To Spring Support, Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57197-0R010	Box, Torque, Front Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57198-0R010	Box, Torque, Front Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57217-0R010	Extension, Front Side Member, No.2 Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
57228-0R010	Extension, Front Side Member, No.2 Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
59503-0R010	Bracket, Floor Step Support	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
59504-0R010	Bracket, Floor Step Support, No.2	Front Floor Panel & Front Floor Member ([04.2012 - ] FRONT SIDE MEMBER (1204- ))
