Search › Model › QEA38

QEA38

Toyota RAV4-VANGUARD · 2012 · 2,038 parts · 135 categories

2,038 items

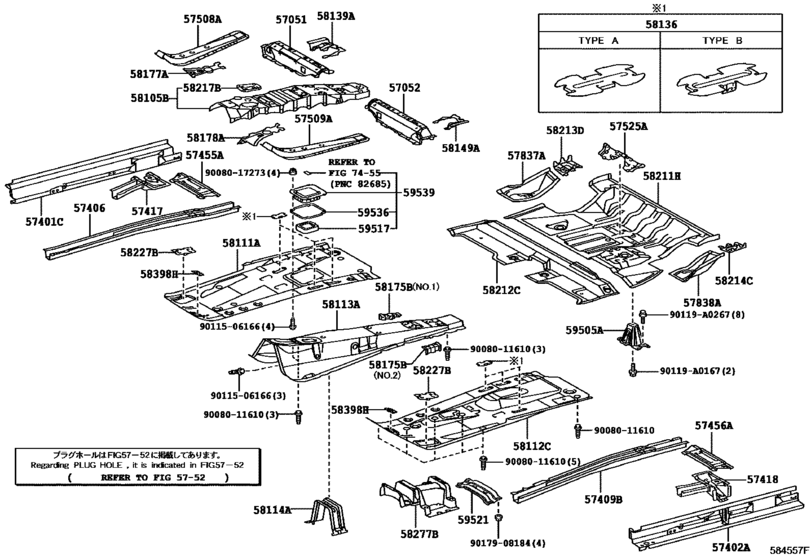

Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- )) 55

#	OEM	Part name
57051	57051-0R011	Member Sub-Assy, Front Floor Cross, Rh
57052	57052-0R011	Member Sub-Assy, Front Floor Cross, Lh
57401	57401-0R031	Member Sub-Assy, Floor Side, Inner Rh
57402	57402-0R031	Member Sub-Assy, Floor Side, Inner Lh
57406	57406-0R010	Member Sub-Assy, Main Floor Side, Rh
57409	57409-0R010	Member Sub-Assy, Main Floor Side, Lh
57417	57505-0R030	Reinforcement, Front Floor Under, Rh
57418	57506-0R030	Reinforcement, Front Floor Under, Lh
57455	57455-0R020	Bracket, Front Floor Crossmember
57456	57456-0R020	Gusset, Front Floor Crossmember, Lh
57508	57508-0R010	Reinforcement Sub-Assy, Front Floor, Rh
57509	57509-0R010	Reinforcement Sub-Assy, Front Floor, Lh
57525	59568-0R010	Plate, Center Floor, No.1
57837	57837-0R010	Reinforcement, Rear No.1 Seat Leg, Rear No.3
57838	57838-0R010	Reinforcement, Rear No.1 Seat Leg, Rear No.4
58105	58105-0R030	Panel Sub-Assy, Front Floor Rear Upper Sub
58111	58111-0R030	Pan, Front Floor, Rh
58112	58112-0R011	Pan, Front Floor, Lh
58113	58113-0R010	Panel, Front Floor, Center
58114	58114-0R010	Reinforcement, Front Floor Panel
58114	58114-0R011	Reinforcement, Front Floor Panel
58136	58136-06050	Cover, Front Floor Hole
58136	58136-42020	Cover, Front Floor Hole
58139	58139-0R010	Plate, Front Floor Side, Rear Rh
58149	58149-0R011	Plate, Front Floor Side, Rear Lh
58175	58175-0R010	Angle Sub-Assy, Front Floor, Rear
58175	58175-0R011	Angle Sub-Assy, Front Floor, Rear
58175	58176-0R010	Angle Sub-Assy, Front Floor, Rear
58175	58176-0R011	Angle Sub-Assy, Front Floor, Rear
58177	58177-0R010	Extension, Front Floor Panel, Rh
58178	58178-0R010	Extention, Front Floor Panel, Lh
58211	58211-0R011	Pan, Center Floor
58211	58211-42011	Pan, Center Floor
58212	58202-0R010	Pan, Center Floor, Front
58213	58213-0R010	Reinforcement, Center Floor Panel
58214	58214-0R010	Reinforcement, Center Floor Panel, Lh
58217	58159-0R010	Plate, Front Floor
58227	58227-0R010	Plate, Front Floor Panel Side, Rh
58227	58227-42010	Plate, Front Floor Panel Side, Rh
58277	58209-0R030	Reinforcement, Drive Shaft Center Support
58277	58209-0R031	Reinforcement, Drive Shaft Center Support
58398	58398-0R010	Cover, Floor Under, No.1
58398	58398-42010	Cover, Floor Under, No.1
59505	59505-0R011	Board Sub-Assy, Rear Floor Battery Back, Rh
59517	59517-0R010	Board, Upper Floor, No.7
59521	59521-0R010	Bracket, Rear Floor Battery Front Cover, No.1
59521	59521-0R011	Bracket, Rear Floor Battery Front Cover, No.1
59536	59536-0R020	Plate, Upper Floor, No.2
59539	59539-0R010	Cover, Upper Floor, Front
90119	90119-A0167	New Genuine Part
90119	90119-A0267	Bolt, Fuel Tank Band Set
9008011610	90080-11610	Bolt, Weld(For Front Floor Pan)
9008017273	90080-17273	New Genuine Part
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9017908184	90179-08184	NUT

OEM	Part name	Category
57051-0R011	Member Sub-Assy, Front Floor Cross, Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
57052-0R011	Member Sub-Assy, Front Floor Cross, Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
57401-0R031	Member Sub-Assy, Floor Side, Inner Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
57402-0R031	Member Sub-Assy, Floor Side, Inner Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
57406-0R010	Member Sub-Assy, Main Floor Side, Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
57409-0R010	Member Sub-Assy, Main Floor Side, Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
57455-0R020	Bracket, Front Floor Crossmember	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
57456-0R020	Gusset, Front Floor Crossmember, Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
57505-0R030	Reinforcement, Front Floor Under, Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
57506-0R030	Reinforcement, Front Floor Under, Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
57508-0R010	Reinforcement Sub-Assy, Front Floor, Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
57509-0R010	Reinforcement Sub-Assy, Front Floor, Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
57837-0R010	Reinforcement, Rear No.1 Seat Leg, Rear No.3	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
57838-0R010	Reinforcement, Rear No.1 Seat Leg, Rear No.4	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58105-0R030	Panel Sub-Assy, Front Floor Rear Upper Sub	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58111-0R030	Pan, Front Floor, Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58112-0R011	Pan, Front Floor, Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58113-0R010	Panel, Front Floor, Center	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58114-0R010	Reinforcement, Front Floor Panel	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58114-0R011	Reinforcement, Front Floor Panel	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58136-06050	Cover, Front Floor Hole	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58136-42020	Cover, Front Floor Hole	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58139-0R010	Plate, Front Floor Side, Rear Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58149-0R011	Plate, Front Floor Side, Rear Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58159-0R010	Plate, Front Floor	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58175-0R010	Angle Sub-Assy, Front Floor, Rear	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58175-0R011	Angle Sub-Assy, Front Floor, Rear	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58176-0R010	Angle Sub-Assy, Front Floor, Rear	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58176-0R011	Angle Sub-Assy, Front Floor, Rear	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58177-0R010	Extension, Front Floor Panel, Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58178-0R010	Extention, Front Floor Panel, Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58202-0R010	Pan, Center Floor, Front	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58209-0R030	Reinforcement, Drive Shaft Center Support	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58209-0R031	Reinforcement, Drive Shaft Center Support	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58211-0R011	Pan, Center Floor	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58211-42011	Pan, Center Floor	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58213-0R010	Reinforcement, Center Floor Panel	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58214-0R010	Reinforcement, Center Floor Panel, Lh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58227-0R010	Plate, Front Floor Panel Side, Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58227-42010	Plate, Front Floor Panel Side, Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58398-0R010	Cover, Floor Under, No.1	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
58398-42010	Cover, Floor Under, No.1	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
59505-0R011	Board Sub-Assy, Rear Floor Battery Back, Rh	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
59517-0R010	Board, Upper Floor, No.7	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
59521-0R010	Bracket, Rear Floor Battery Front Cover, No.1	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
59521-0R011	Bracket, Rear Floor Battery Front Cover, No.1	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
59536-0R020	Plate, Upper Floor, No.2	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
59539-0R010	Cover, Upper Floor, Front	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
59568-0R010	Plate, Center Floor, No.1	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
90080-11610	Bolt, Weld(For Front Floor Pan)	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
90080-17273	New Genuine Part	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
90115-06166	Bolt, Weld(For Front Floor Pan)	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
90119-A0167	New Genuine Part	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
90119-A0267	Bolt, Fuel Tank Band Set	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
90179-08184	NUT	Front Floor Panel & Front Floor Member ([04.2012 - ] FLOOR PANEL (1204- ))
