Search › Model › QEA38

QEA38

Toyota RAV4-VANGUARD · 2012 · 2,038 parts · 135 categories

2,038 items

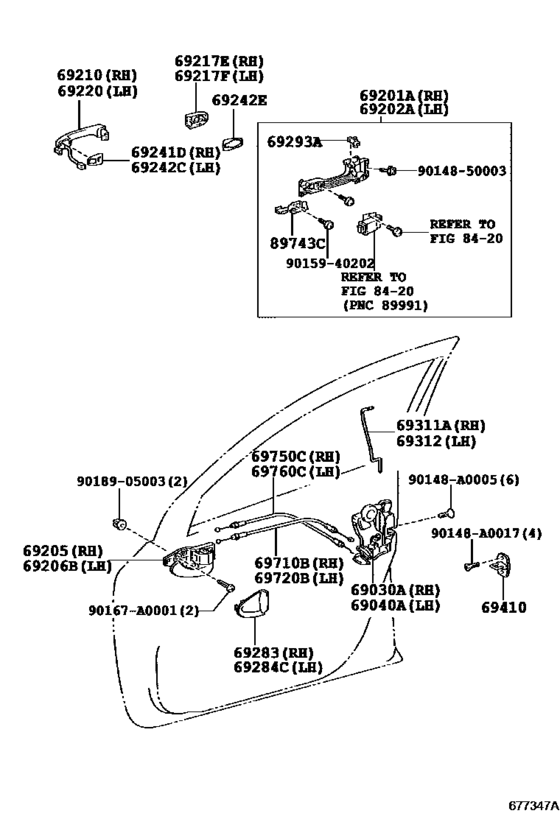

Front Door Lock & Handle ([04.2012 - ] (1204- )) 41

#	OEM	Part name
69030	69030-0C050	Lock Assy, Front Door W/motor, Rh
69040	69040-0C050	Lock Assy, Front Door W/motor, Lh
69201	69201-02210	Frame Sub-Assy, Front Door Outside Handle, Rh
69202	69202-02140	Frame Sub-Assy, Front Door Outside Handle, Lh
69205	69205-0R010-B0	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-0R010-B0	Handle Sub-Assy, Front Door Inside, Lh
69210	69210-02110-A0	Handle Assy, Front Door, Outside Rh
69210	69210-02110-A1	Handle Assy, Front Door, Outside Rh
69210	69210-02110-B0	Handle Assy, Front Door, Outside Rh
69210	69210-02110-B1	Handle Assy, Front Door, Outside Rh
69210	69210-02110-J4	Handle Assy, Front Door, Outside Rh
69217	69217-02230-A0	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH
69217	69217-02230-A1	Cover, Back Door Outside Handle
69217	69217-02230-B0	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH
69217	69217-02230-B1	Cover, Front Door Outside Handle, Rh
69217	69217-02230-J4	Cover, Back Door Outside Handle
69217	69217-02240-A0	Cover, Front Door Outside Handle, Lh
69217	69217-02240-A1	Cover, Front Door Outside Handle, Lh
69217	69217-02240-B0	Cover, Front Door Outside Handle, Lh
69217	69217-02240-B1	Cover, Front Door Outside Handle, Lh
69217	69217-02240-J4	Cover, Front Door Outside Handle, Lh
69241	69241-AA020	Pad, Front Door Outside Handle, Front
69242	69238-AA010	Pad, Front Door Outside Handle, Rear
69283	69283-06010-B0	Plug, Front Door Inside Handle Bezel, Rh
69284	69284-06010-B0	Plug, Front Door Inside Handle Bezel, Lh
69293	69293-12030	Snap, Front Door Outside Handle
69293	69293-12040	Snap, Front Door Outside Handle
69311	69311-0R010	Rod, Front Door Lock Open, Rh
69312	69312-0R010	Rod, Front Door Lock Open, Lh
69410	69410-02030	Plate Assy, Front Door Lock Striker
69410	69410-AA030	Plate Assy, Front Door Lock Striker
69710	69710-0R010	Cable Assy, Front Door Lock Remote Control, Rh
69750	69750-0R010	Cable Assy, Front Door Inside Locking, Rh
89743	89743-47010	Bracket, Electrical Key Wire Harness
89743	89743-47020	Bracket, Electrical Key Wire Harness
90148	90148-A0005	Hexalobular Screw
90148	90148-A0017	New Genuine Part
90167	90167-A0001	SCREW PAN TAPPING
9014850003	90148-50003	Screw Hex Lobular
9015940202	90159-40202	SCREW WWASHER
9018905003	90189-05003	CLIP

OEM	Part name	Category
69030-0C050	Lock Assy, Front Door W/motor, Rh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69040-0C050	Lock Assy, Front Door W/motor, Lh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69201-02210	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69202-02140	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69205-0R010-B0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69206-0R010-B0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69210-02110-A0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69210-02110-A1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69210-02110-B0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69210-02110-B1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69210-02110-J4	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69217-02230-A0	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69217-02230-A1	Cover, Back Door Outside Handle	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69217-02230-B0	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69217-02230-B1	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69217-02230-J4	Cover, Back Door Outside Handle	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69217-02240-A0	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69217-02240-A1	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69217-02240-B0	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69217-02240-B1	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69217-02240-J4	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69238-AA010	Pad, Front Door Outside Handle, Rear	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69241-AA020	Pad, Front Door Outside Handle, Front	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69283-06010-B0	Plug, Front Door Inside Handle Bezel, Rh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69284-06010-B0	Plug, Front Door Inside Handle Bezel, Lh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69293-12030	Snap, Front Door Outside Handle	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69293-12040	Snap, Front Door Outside Handle	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69311-0R010	Rod, Front Door Lock Open, Rh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69312-0R010	Rod, Front Door Lock Open, Lh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69410-02030	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69410-AA030	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69710-0R010	Cable Assy, Front Door Lock Remote Control, Rh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
69750-0R010	Cable Assy, Front Door Inside Locking, Rh	Front Door Lock & Handle ([04.2012 - ] (1204- ))
89743-47010	Bracket, Electrical Key Wire Harness	Front Door Lock & Handle ([04.2012 - ] (1204- ))
89743-47020	Bracket, Electrical Key Wire Harness	Front Door Lock & Handle ([04.2012 - ] (1204- ))
90148-50003	Screw Hex Lobular	Front Door Lock & Handle ([04.2012 - ] (1204- ))
90148-A0005	Hexalobular Screw	Front Door Lock & Handle ([04.2012 - ] (1204- ))
90148-A0017	New Genuine Part	Front Door Lock & Handle ([04.2012 - ] (1204- ))
90159-40202	SCREW WWASHER	Front Door Lock & Handle ([04.2012 - ] (1204- ))
90167-A0001	SCREW PAN TAPPING	Front Door Lock & Handle ([04.2012 - ] (1204- ))
90189-05003	CLIP	Front Door Lock & Handle ([04.2012 - ] (1204- ))
