Search › Model › QEA38

QEA38

Toyota RAV4-VANGUARD · 2012 · 2,038 parts · 135 categories

2,038 items

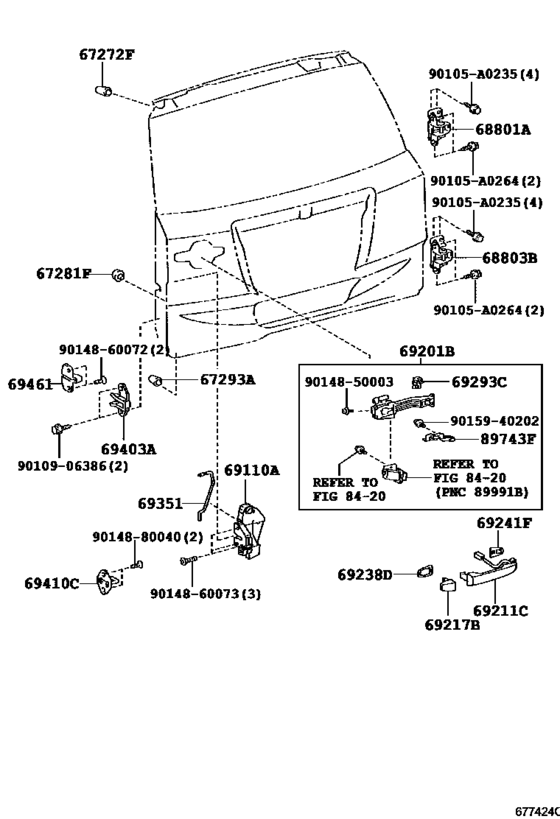

Back Door Lock & Hinge ([04.2012 - ] (1204- )) 31

#	OEM	Part name
67272	90541-09108	Cushion, Back Door Stopper, No.2
67281	67282-46010	Stopper, Back Door, Lower
67293	67272-42010	Cushion, Back Door Stopper
68801	68801-0R010	Hinge Sub-Assy, Back Door, Upper
69110	69110-0R011	Lock Assy, Back Door W/motor
69110	69110-42131	Lock Assy, Back Door W/motor
69201	69201-02210	Frame Sub-Assy, Front Door Outside Handle, Rh
69211	69210-02110-A0	Handle Assy, Front Door, Outside Rh
69211	69210-02110-A1	Handle Assy, Front Door, Outside Rh
69211	69210-02110-B0	Handle Assy, Front Door, Outside Rh
69211	69210-02110-J4	Handle Assy, Front Door, Outside Rh
69217	69217-02230-A0	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH
69217	69217-02230-A1	Cover, Back Door Outside Handle
69217	69217-02230-B0	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH
69217	69217-02230-J4	Cover, Back Door Outside Handle
69238	69238-AA010	Pad, Front Door Outside Handle, Rear
69241	69241-AA020	Pad, Front Door Outside Handle, Front
69293	69293-12030	Snap, Front Door Outside Handle
69351	69378-0R010	Rod, Back Door Lock Control, Upper
69403	69403-60011	Stopper Sub-Assy, Back Door Side Female, Rh
69410	69410-60010	Plate Assy, Rear Door Lock Striker
69461	69461-60010	Stopper, Back Door Side Male, Rh
89743	89743-47010	Bracket, Electrical Key Wire Harness
90105	90105-A0235	New Genuine Part
90105	90105-A0264	New Genuine Part
9010906386	90109-06386	BOLT
9014850003	90148-50003	Screw Hex Lobular
9014860072	90148-60072	SCREW HEXALOBULAR
9014860073	90148-60073	SCREW HEXALOBULAR
9014880040	90148-80040	Screw Hex Lobular
9015940202	90159-40202	SCREW WWASHER

OEM	Part name	Category
67272-42010	Cushion, Back Door Stopper	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
67282-46010	Stopper, Back Door, Lower	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
68801-0R010	Hinge Sub-Assy, Back Door, Upper	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69110-0R011	Lock Assy, Back Door W/motor	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69110-42131	Lock Assy, Back Door W/motor	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69201-02210	Frame Sub-Assy, Front Door Outside Handle, Rh	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69210-02110-A0	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69210-02110-A1	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69210-02110-B0	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69210-02110-J4	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69217-02230-A0	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69217-02230-A1	Cover, Back Door Outside Handle	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69217-02230-B0	Cover, Back Door Outside Handle - FRONT DOOR OUTSIDE HANDLE, RH	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69217-02230-J4	Cover, Back Door Outside Handle	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69238-AA010	Pad, Front Door Outside Handle, Rear	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69241-AA020	Pad, Front Door Outside Handle, Front	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69293-12030	Snap, Front Door Outside Handle	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69378-0R010	Rod, Back Door Lock Control, Upper	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69403-60011	Stopper Sub-Assy, Back Door Side Female, Rh	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69410-60010	Plate Assy, Rear Door Lock Striker	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
69461-60010	Stopper, Back Door Side Male, Rh	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
89743-47010	Bracket, Electrical Key Wire Harness	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
90105-A0235	New Genuine Part	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
90105-A0264	New Genuine Part	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
90109-06386	BOLT	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
90148-50003	Screw Hex Lobular	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
90148-60072	SCREW HEXALOBULAR	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
90148-60073	SCREW HEXALOBULAR	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
90148-80040	Screw Hex Lobular	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
90159-40202	SCREW WWASHER	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
90541-09108	Cushion, Back Door Stopper, No.2	Back Door Lock & Hinge ([04.2012 - ] (1204- ))
