| 11301-17020 |
Case Sub-Assy, Timing Gear |

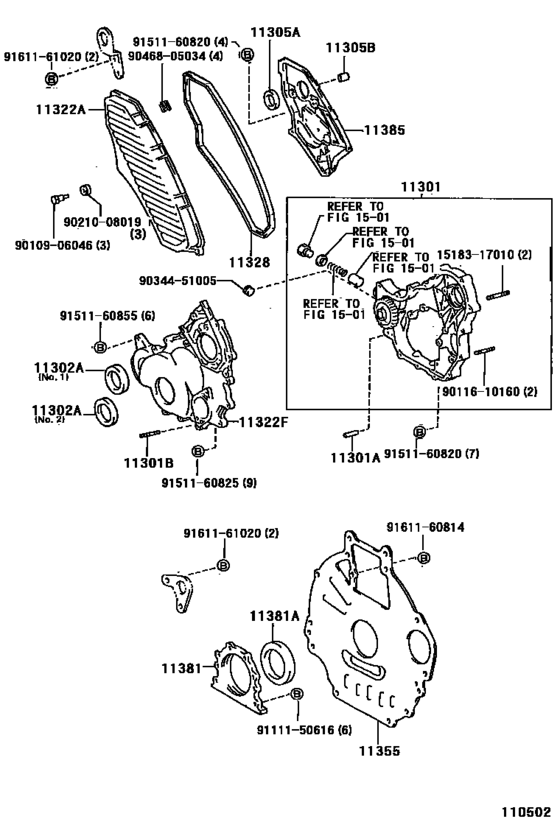

Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 11301-17021 |
Case Sub-Assy, Timing Gear |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 11321-17010 |
Cover, Timing Belt, No.1 |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 11322-17010 |
Cover, Timing Gear, No.2 |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 11328-17010 |
Gasket, Timing Gear Or Chain Cover |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 11355-18010 |
Plate, Rear End |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 11381-17010 |
Retainer, Engine Rear Oil Seal |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 11382-17010 |
Retainer, Camshaft Oil Seal |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 15183-17010 |
Bolt, Union(for Oil Pump) |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 90080-21002 |
WASHER |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 90109-06046 |
BOLT |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 90116-10160 |
Bolt,stud(For Timing Gear Case) |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 90210-08019 |
WASHER |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 90250-08054 |
Pin, Straight |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 90253-11021 |
Pin, Ring |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 90311-32017 |
Seal, Oil(For Oil Seal Retainer, No.2) |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 90311-32020 |
Oil Seal |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 90311-58006 |
Seal, Type T Oil(For Injection Pump) |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 90311-58007 |
Seal, Oil(For Timing Chain Or Belt Cover) |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 90311-95008 |
Seal, Engine Rear Oil |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 90344-51005 |
Plug, W/head Taper Screw, No.1 |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 90468-05034 |
Timing cover clip |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 91111-50616 |
New Genuine Part |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 91511-60820 |
Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 91511-60825 |
Bolt (For Transfer Stiffener Plate) |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 91511-60855 |
New Genuine Part |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 91511-B0825 |
Bolt (For Transfer Stiffener Plate) |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 91511-B0855 |
BOLT FLANGE |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 91511-J0820 |
Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 91611-60814 |
Bolt |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 91611-61020 |
Bolt(For Transaxle & Engine Setting) |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
| 91612-B1020 |
Bolt (For Transfer Case)Cover No.2 |
Timing Gear Cover & Rear End Plate ([01.1990 - 01.1994] (9001-9401)1PZ) |
