PZJ77

Toyota LAND-CRUISER · 1990 · 5,547 parts · 214 categories
PZJ77 ×

← Back to categories

5,547 items

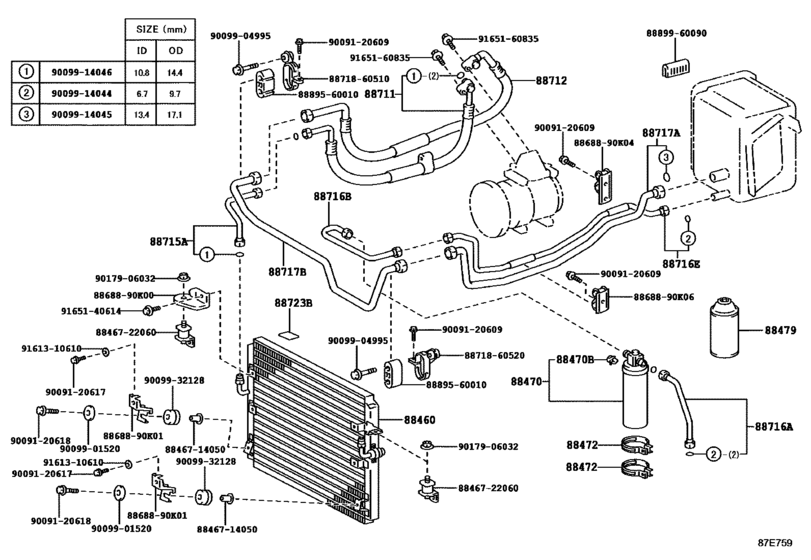

Heating & Air Conditioning - Cooler Piping ([01.1990 - 05.1993] (9001-9305)HZJ7#,PZJ7#) 57
#OEMPart name
88460 88340-60010 Condenser Assy, Cooler
88460 88460-60180 Condenser Assy, Cooler
88470 88470-14010 Receiver & Dryer Assy, Cooler
88470 04884-33110 New Genuine Part
88470 88471-34010 Receiver & Dryer Assy, Cooler
88470 88475-12020 Bolt, Fuse
88472 88472-22090 Bracket, Receiver Tank, No.1
88472 88472-60090 Bracket, Receiver Tank, No.1
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02007 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88711 88711-60210 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-60310 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-60190 Hose, Cooler Refrigerant Suction, No.1
88712 88712-60510 Hose, Cooler Refrigerant Suction, No.1
88715 88715-60040 Pipe, Cooler Refrigerant Discharge, A
88715 88715-60100 Pipe, Cooler Refrigerant Discharge, A
88716 88716-60550 Pipe, Cooler Refrigerant Liquid, A
88716 88716-6A290 Pipe, Cooler Refrigerant Liquid, A
88716 88716-60500 Pipe, Cooler Refrigerant Liquid, B
88716 88716-6A220 Pipe, Cooler Refrigerant Liquid, B
88716 88716-60510 Pipe, Cooler Refrigerant Liquid, E
88716 88716-6A230 Pipe, Cooler Refrigerant Liquid, E
88717 88717-60270 Pipe, Cooler Refrigerant Suction, A
88717 88717-60600 Pipe, Cooler Refrigerant Suction, A
88717 88717-60280 Pipe, Cooler Refrigerant Suction, B
88717 88717-60410 Pipe, Cooler Refrigerant Suction, B
88717 88717-60610 Pipe, Cooler Refrigerant Suction, B
88723 88723-20030 Plate, Caution, No.1
88723 88733-30040 Label, Cooler Service Caution
88723 88723-22040 Plate, Caution, No.2
88723 88723-22050 Label, Cooler Service Caution
8868890 88688-90K00 Bracket, Cooler Diaphragm
8868890 88688-60310 Bracket, Cooler Diaphragm
8868890 88688-90K01 Bracket, Cooler Condenser, No.2
8868890 88688-90K04 Bracket, Cooler Diaphragm
8868890 88688-90K06 Bracket, Cooler Diaphragm
8846714050 88467-14050 Cushion, Cooler Condenser, No.1
8846722060 88467-22060 Cushion, Cooler Condenser, No.1
8871860510 88718-60510 Pipe, Cooler Refrigerant Suction, No.2
8871860520 88718-60520 Pipe, Cooler Refrigerant Suction, No.2
8889560010 88895-60010 Holder, Fuse
8889960090 88899-60090 Cover, Evaporator
9009120609 90091-20609 BOLT
9009120617 90091-20617 New Genuine Part
9009120618 90091-20618 New Genuine Part
9009901520 90099-01520 New Genuine Part
9009904995 90099-04995 New Genuine Part
9009914044 90099-14044 Ring, O(For Cooler Refrigerant Liquid Hose)
9009914045 90099-14045 Ring, O(For Cooler Refrigerant Suction Hose)
9009914046 90099-14046 Ring, O(For Cooler Refrigerant Discharge Hose)
9009932128 90099-32128 Grommet
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9161310610 91613-10610 New Genuine Part
9161310610 90093-00604 New Genuine Part
9165140614 91651-40614 Bolt
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
