PZJ77

Toyota LAND-CRUISER · 1990 · 5,547 parts · 214 categories

5,547 items

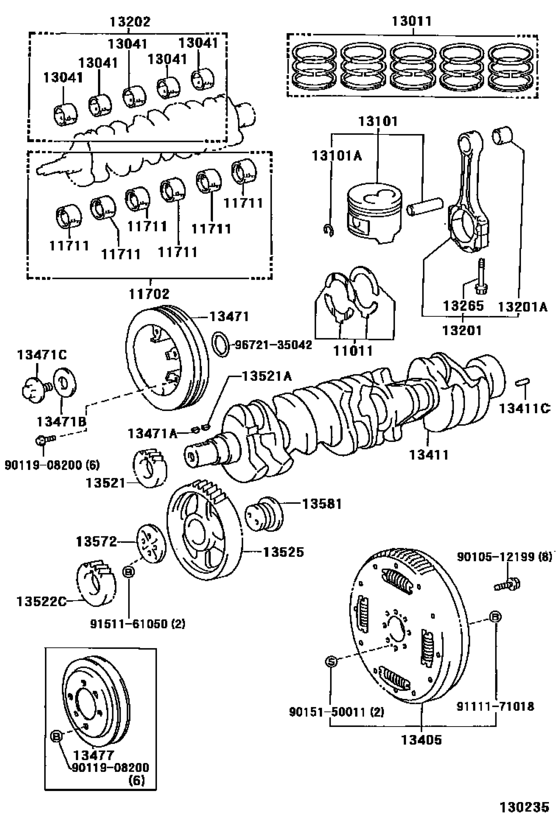

Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ) 70

#	OEM	Part name
11011	11011-17010	Washer Set, Crankshaft Thrust
11702	11704-18010	Bearing Set, Crankshaft
11702	11705-18010	Bearing Set, Crankshaft
11711	11701-17010-02	Bearing, Crankshaft
11711	11701-17011-02	Bearing, Crankshaft
11711	11701-17010-03	Bearing, Crankshaft
11711	11701-17011-03	Bearing, Crankshaft
11711	11701-17010-04	Bearing, Crankshaft
11711	11701-17011-04	Bearing, Crankshaft
11711	11701-17010-05	Bearing, Crankshaft
11711	11701-17011-05	Bearing, Crankshaft
11711	11701-17010-06	Bearing, Crankshaft
11711	11701-17011-06	Bearing, Crankshaft
13011	13011-18010	Ring Set, Piston
13011	13011-18030	Ring Set, Piston
13011	13011-18011	Ring Set, Piston
13011	13013-18010	Ring Set, Piston
13011	13013-18030	Ring Set, Piston
13011	13013-18011	Ring Set, Piston
13041	13041-17010-02	Bearing, Connecting Rod
13041	13041-17011-02	Bearing, Connecting Rod
13041	13041-17010-03	Bearing, Connecting Rod
13041	13041-17011-03	Bearing, Connecting Rod
13041	13041-17010-04	Bearing, Connecting Rod
13041	13041-17011-04	Bearing, Connecting Rod
13041	13041-17010-05	Bearing, Connecting Rod
13041	13041-17011-05	Bearing, Connecting Rod
13041	13041-17010-06	Bearing, Connecting Rod
13041	13041-17011-06	Bearing, Connecting Rod
13101	13101-17010-01	Piston Sub-Assy, W/pin
13101	13101-17010-02	Piston Sub-Assy, W/pin
13101	13101-17010-03	Piston Sub-Assy, W/pin
13101	13103-17010	Piston Sub-Assy, W/pin (0.50)
13101	90521-32004	Ring, Hole Snap(For Piston Pin)
13201	13201-17010	Rod Sub-Assy, Connecting
13201	90999-73126	Bush(For Connecting Rod Small End)
13202	13204-18040	Bearing Set, Connecting Rod
13202	13204-18041	Bearing Set, Connecting Rod
13202	13205-18040	Bearing Set, Connecting Rod
13202	13205-18041	Bearing Set, Connecting Rod
13265	13265-17010	Bolt, Connecting Rod
13405	13450-18010	Flywheel Sub-Assy
13405	13450-18011	Flywheel Sub-Assy
13411	13411-18010	Crankshaft
13411	13411-18011	Crankshaft
13411	90311-95008	Seal, Engine Rear Oil
13411	90250-08030	Pin, Straight(For Crankshaft)
13411	90250-08046	Pin, Straight(For Intake Manifold Setting)
13471	13408-18010	Pulley, Crankshaft
13471	95161-20516	Key, Crankshaft(For Crankshaft Pulley Set)
13471	95161-30516	Key(For Oil Pump Drive Spline)
13471	90201-27001	Washer, Plate(For Crankshaft Pulley Set)
13471	90105-24001	Bolt(For Crankshaft Pulley Set)
13477	88451-60050	Pulley, Crankshaft, No.2
13521	13521-17010	Gear Or Sprocket, Crankshaft Timing
13522	13522-17010	Gear, Pump Drive Shaft
13525	13525-17010	Gear, Idle, No.1
13572	13572-17010	Plate, Idle Gear Thrust
13572	13572-17021	Plate, Idle Gear Thrust
13581	13581-17010	Shaft, Idle Gear, No.1
13581	13581-17012	Shaft, Idle Gear, No.1
9010512199	90105-12199	New Genuine Part
9011908200	90119-08200	BOLT
9011908200	90105-08112	New Genuine Part
9015150011	90151-50011	New Genuine Part
9015150011	90151-50010	Screw
9111171018	91111-71018	New Genuine Part
9111171018	91112-81018	New Genuine Part
9151161050	91511-61050	Bolt, Flange (For Idler)
9672135042	96721-35042	RING

OEM	Part name	Category
11011-17010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
11701-17010-02	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
11701-17010-03	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
11701-17010-04	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
11701-17010-05	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
11701-17010-06	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
11701-17011-02	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
11701-17011-03	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
11701-17011-04	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
11701-17011-05	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
11701-17011-06	Bearing, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
11704-18010	Bearing Set, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
11705-18010	Bearing Set, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13011-18010	Ring Set, Piston	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13011-18011	Ring Set, Piston	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13011-18030	Ring Set, Piston	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13013-18010	Ring Set, Piston	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13013-18011	Ring Set, Piston	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13013-18030	Ring Set, Piston	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13041-17010-02	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13041-17010-03	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13041-17010-04	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13041-17010-05	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13041-17010-06	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13041-17011-02	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13041-17011-03	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13041-17011-04	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13041-17011-05	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13041-17011-06	Bearing, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13101-17010-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13101-17010-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13101-17010-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13103-17010	Piston Sub-Assy, W/pin (0.50)	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13201-17010	Rod Sub-Assy, Connecting	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13204-18040	Bearing Set, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13204-18041	Bearing Set, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13205-18040	Bearing Set, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13205-18041	Bearing Set, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13265-17010	Bolt, Connecting Rod	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13408-18010	Pulley, Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13411-18010	Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13411-18011	Crankshaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13450-18010	Flywheel Sub-Assy	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13450-18011	Flywheel Sub-Assy	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13521-17010	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13522-17010	Gear, Pump Drive Shaft	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13525-17010	Gear, Idle, No.1	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13572-17010	Plate, Idle Gear Thrust	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13572-17021	Plate, Idle Gear Thrust	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13581-17010	Shaft, Idle Gear, No.1	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
13581-17012	Shaft, Idle Gear, No.1	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
88451-60050	Pulley, Crankshaft, No.2	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
90105-08112	New Genuine Part	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
90105-12199	New Genuine Part	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
90105-24001	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
90119-08200	BOLT	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
90151-50010	Screw	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
90151-50011	New Genuine Part	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
90201-27001	Washer, Plate(For Crankshaft Pulley Set)	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
90250-08030	Pin, Straight(For Crankshaft)	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
90250-08046	Pin, Straight(For Intake Manifold Setting)	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
90311-95008	Seal, Engine Rear Oil	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
90521-32004	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
90999-73126	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
91111-71018	New Genuine Part	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
91112-81018	New Genuine Part	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
91511-61050	Bolt, Flange (For Idler)	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
95161-20516	Key, Crankshaft(For Crankshaft Pulley Set)	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
95161-30516	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
96721-35042	RING	Crankshaft & Piston ([01.1990 - 01.1994] (9001-9401)1PZ)
