Search › Model › PZJ77

PZJ77

Toyota LAND-CRUISER · 1990 · 5,547 parts · 214 categories

5,547 items

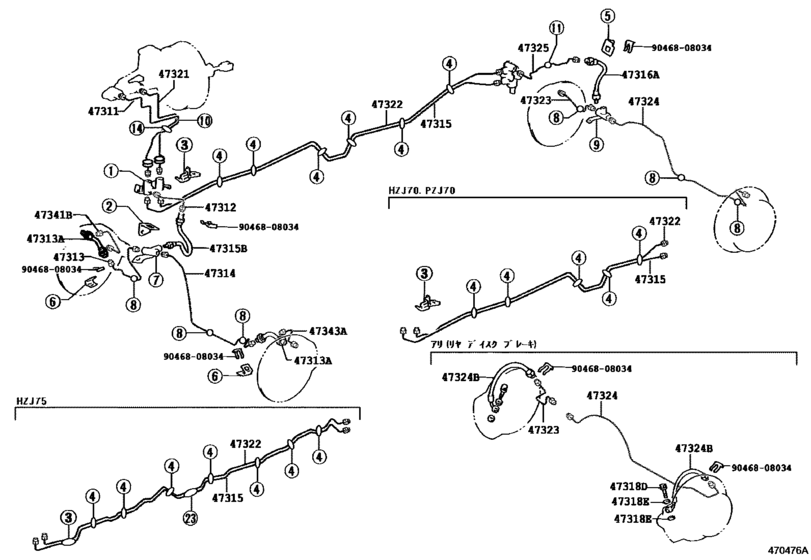

Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#) 20

#	OEM	Part name
47311	47312-60671	Tube, Front Brake, No.1
47311	47312-60670	Tube, Front Brake, No.1
47312	47313-60190	Tube, Front Brake, No.2
47313	47314-60190	Tube, Front Brake, No.3
47313	47314-60210	Tube, Front Brake, No.3
47313	96940-39855	Hose, Flexible, No.1(For Front)
47314	47315-60310	Tube, Front Brake, No.4
47315	47316-60340	Tube, Front Brake, No.5
47315	96940-33105	Hose, Flexible(For Brake Tube)
47316	96940-34405	Hose, Flexible(For Rear Brake Tube)
47321	47322-60551	Tube, Rear Brake, No.1
47321	47322-60550	Tube, Rear Brake, No.1
47322	47323-60430	Tube, Rear Brake, No.2
47323	47324-60201	Tube, Rear Brake, No.3
47324	47325-60161	Tube, Rear Brake, No.4
47325	47326-60091	Tube, Rear Brake, No.5
47325	47326-60241	Tube, Rear Brake, No.5
47341	47341-60031	Tube, Wheel Cylinder, Front Rh No.1
47343	47343-60021	Tube, Wheel Cylinder, Front Lh No.1
9046808034	90468-08034	CLIP

OEM	Part name	Category
47312-60670	Tube, Front Brake, No.1	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
47312-60671	Tube, Front Brake, No.1	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
47313-60190	Tube, Front Brake, No.2	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
47314-60190	Tube, Front Brake, No.3	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
47314-60210	Tube, Front Brake, No.3	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
47315-60310	Tube, Front Brake, No.4	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
47316-60340	Tube, Front Brake, No.5	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
47322-60550	Tube, Rear Brake, No.1	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
47322-60551	Tube, Rear Brake, No.1	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
47323-60430	Tube, Rear Brake, No.2	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
47324-60201	Tube, Rear Brake, No.3	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
47325-60161	Tube, Rear Brake, No.4	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
47326-60091	Tube, Rear Brake, No.5	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
47326-60241	Tube, Rear Brake, No.5	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
47341-60031	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
47343-60021	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
90468-08034	CLIP	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
96940-33105	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
96940-34405	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
96940-39855	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([01.1990 - 08.1999] (9001-9908)HZJ7#,PZJ7#)
