Search › Model › PK10
PK10

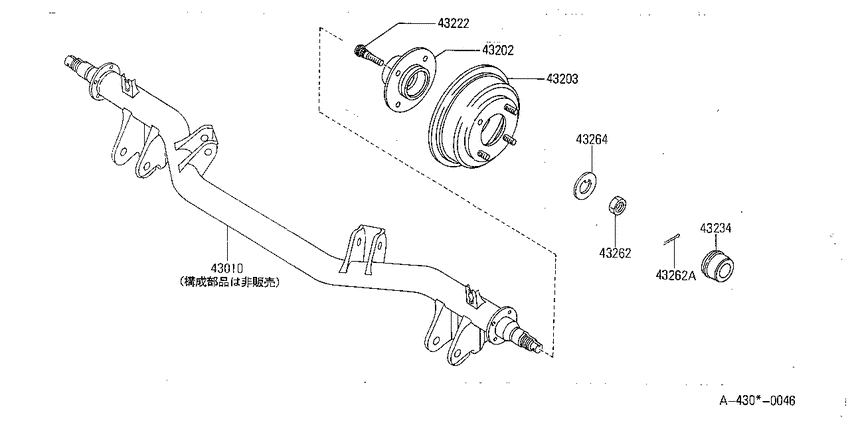

Rear axle (1989-01-01 ~ ; ALL) 6
| # | OEM | Part name |
|---|---|---|
| 43010 | 43010-21B00 | Case Assy-Rear Axle |
| 43202 | 43202-21B00 | Hub Assy-Rear |
| 43222 | 43222-25B60 | Bolt-Hub |
| 43234 | 40234-15B00 | Cap-Hub, Front Wheel |
| 43262 | 01531-00021 | PIN-COTTER |
| 43264 | 43264-50A00 | Washer-Rear Wheel Bearing |
| OEM | Part name | Category |
|---|---|---|
| 01531-00021 | PIN-COTTER | Rear axle (1989-01-01 ~ ; ALL) |
| 40234-15B00 | Cap-Hub, Front Wheel | Rear axle (1989-01-01 ~ ; ALL) |
| 43010-21B00 | Case Assy-Rear Axle | Rear axle (1989-01-01 ~ ; ALL) |
| 43202-21B00 | Hub Assy-Rear | Rear axle (1989-01-01 ~ ; ALL) |
| 43222-25B60 | Bolt-Hub | Rear axle (1989-01-01 ~ ; ALL) |
| 43264-50A00 | Washer-Rear Wheel Bearing | Rear axle (1989-01-01 ~ ; ALL) |
