Search › Model › PK10
PK10

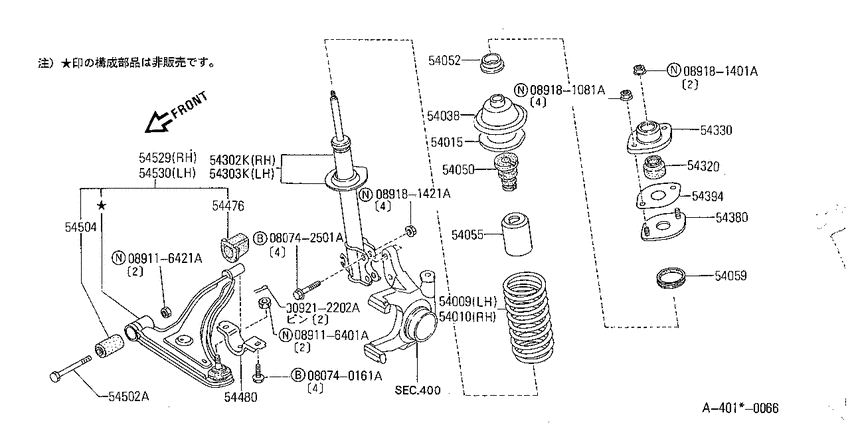

Front suspension (1989-01-01 ~ ; ALL) 11
| # | OEM | Part name |
|---|---|---|
| 54009 | 54010-35B11 | Spring-Front, Lh |
| 54010 | 54010-35B10 | Spring-Front, Rh |
| 54303 | 54303-04B27 | Strut Kit-Front Suspension, Lh |
| 54303 | 54303-04B28 | Strut Kit-Front Suspension, Lh |
| 54380 | 54322-01B00 | Stopper-Insulator |
| 54480 | 54480-28B10 | Bracket-Tension Rod |
| 54502 | 54132-01B00 | Pin-Transverse Link |
| 54529 | 54500-21B00 | Arm Assy-Lower, Rh |
| 54530 | 54501-21B00 | Arm Assy-Lower, Lh |
| 80740161 | 08074-0161A | Bolt-hexagon |
| 89181421 | 08918-1421A | ナツト,ヘクサゴン |
| OEM | Part name | Category |
|---|---|---|
| 08074-0161A | Bolt-hexagon | Front suspension (1989-01-01 ~ ; ALL) |
| 08918-1421A | ナツト,ヘクサゴン | Front suspension (1989-01-01 ~ ; ALL) |
| 54010-35B10 | Spring-Front, Rh | Front suspension (1989-01-01 ~ ; ALL) |
| 54010-35B11 | Spring-Front, Lh | Front suspension (1989-01-01 ~ ; ALL) |
| 54132-01B00 | Pin-Transverse Link | Front suspension (1989-01-01 ~ ; ALL) |
| 54303-04B27 | Strut Kit-Front Suspension, Lh | Front suspension (1989-01-01 ~ ; ALL) |
| 54303-04B28 | Strut Kit-Front Suspension, Lh | Front suspension (1989-01-01 ~ ; ALL) |
| 54322-01B00 | Stopper-Insulator | Front suspension (1989-01-01 ~ ; ALL) |
| 54480-28B10 | Bracket-Tension Rod | Front suspension (1989-01-01 ~ ; ALL) |
| 54500-21B00 | Arm Assy-Lower, Rh | Front suspension (1989-01-01 ~ ; ALL) |
| 54501-21B00 | Arm Assy-Lower, Lh | Front suspension (1989-01-01 ~ ; ALL) |
