PK10

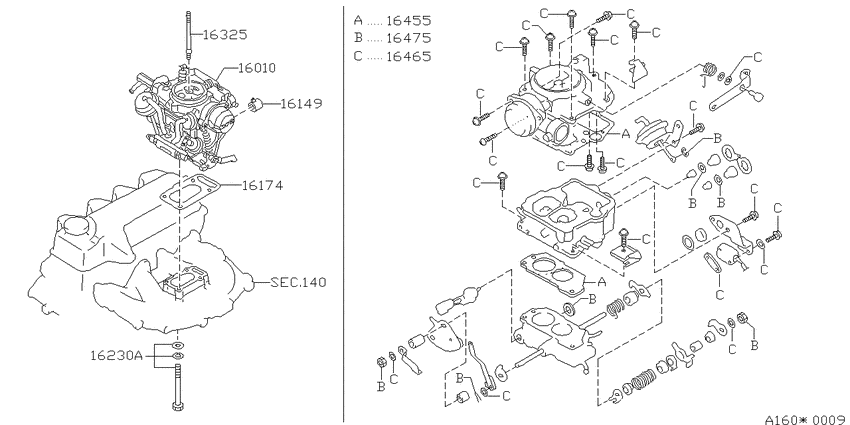

Carburetor (1989-01-01 ~ ; ｱｯｾﾝﾌﾞﾘ-; ALL) 12
| # | OEM | Part name |
|---|---|---|
| 16010 | 16010-24B11 | Carburetor |
| 16010 | 16010-24B13 | Carburetor |
| 16010 | 16273-08B06 | Plate-Adjust |
| 16010 | 16286-H7200 | Plug |
| 16010 | 16010-24B01 | Carburetor |
| 16010 | 16010-24B03 | Carburetor |
| 16149 | 16147-E6600 | Cap-Idle Screw |
| 16174 | 16174-01M00 | Gasket-Throttle Chamber |
| 16325 | 16525-01B00 | Stud |
| 16455 | 16455-11M05 | Gasket Kit |
| 16465 | 16465-24B00 | Screw & Washer Kit-A |
| 16475 | 16475-24B00 | Screw & Washer Kit-B |
| OEM | Part name | Category |
|---|---|---|
| 16010-24B01 | Carburetor | Carburetor (1989-01-01 ~ ; ｱｯｾﾝﾌﾞﾘ-; ALL) |
| 16010-24B03 | Carburetor | Carburetor (1989-01-01 ~ ; ｱｯｾﾝﾌﾞﾘ-; ALL) |
| 16010-24B11 | Carburetor | Carburetor (1989-01-01 ~ ; ｱｯｾﾝﾌﾞﾘ-; ALL) |
| 16010-24B13 | Carburetor | Carburetor (1989-01-01 ~ ; ｱｯｾﾝﾌﾞﾘ-; ALL) |
| 16147-E6600 | Cap-Idle Screw | Carburetor (1989-01-01 ~ ; ｱｯｾﾝﾌﾞﾘ-; ALL) |
| 16174-01M00 | Gasket-Throttle Chamber | Carburetor (1989-01-01 ~ ; ｱｯｾﾝﾌﾞﾘ-; ALL) |
| 16273-08B06 | Plate-Adjust | Carburetor (1989-01-01 ~ ; ｱｯｾﾝﾌﾞﾘ-; ALL) |
| 16286-H7200 | Plug | Carburetor (1989-01-01 ~ ; ｱｯｾﾝﾌﾞﾘ-; ALL) |
| 16455-11M05 | Gasket Kit | Carburetor (1989-01-01 ~ ; ｱｯｾﾝﾌﾞﾘ-; ALL) |
| 16465-24B00 | Screw & Washer Kit-A | Carburetor (1989-01-01 ~ ; ｱｯｾﾝﾌﾞﾘ-; ALL) |
| 16475-24B00 | Screw & Washer Kit-B | Carburetor (1989-01-01 ~ ; ｱｯｾﾝﾌﾞﾘ-; ALL) |
| 16525-01B00 | Stud | Carburetor (1989-01-01 ~ ; ｱｯｾﾝﾌﾞﾘ-; ALL) |
