PK10

Nissan PAO · 1989 · 2,349 parts · 158 categories

2,349 items

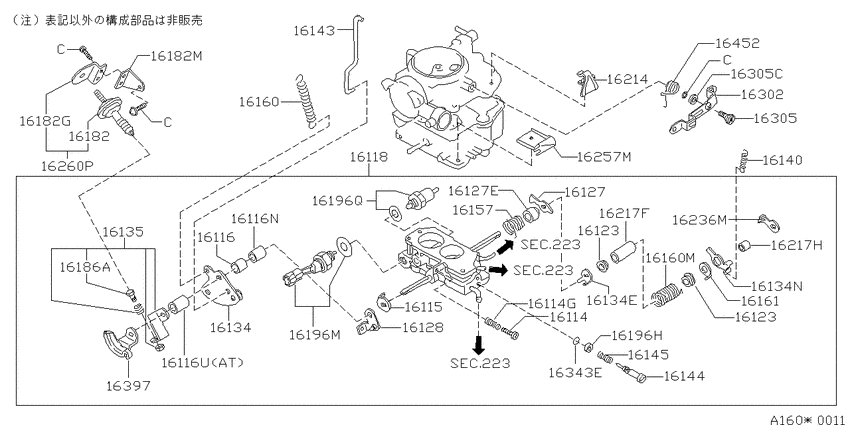

Carburetor (1989-01-01 ~ ; 構成部品(2); ALL) 49

#	OEM	Part name
16114	16145-H9820	Screw-Adjust, Throttle
16114	16145-46L00	Spring-Screw Adjust
16115	16082-23M00	Plate-Adjust
16116	16116-12M01	Sleeve-A
16116	16116-H1910	Sleeve-A
16116	16116-A5610	Sleeve-B
16118	16110-24B11	Throttle Body
16118	16110-24B13	Throttle Body
16118	16110-24B01	Throttle Body
16118	16110-24B03	Throttle Body
16123	16116-19M01	Collar
16127	16127-19M02	Plate-Return
16127	16156-33M20	Clip
16128	16128-24B00	Lever-Throttle
16134	16134-24B00	Lever-Throttle
16134	16133-10B13	Lever-Connecting
16134	16134-11M03	Lever-Throttle Switch
16135	16135-01B20	Iacv-Ficd Lever
16135	16135-01B21	Iacv-Ficd Lever
16140	16140-31M10	Spring-Lever
16143	16143-24B00	Rod-Pump
16144	16144-H8900	Screw-Adjust, Idle
16145	16145-61A03	Spring-Screw Adjust
16157	16160-31M15	Spring-Connecting
16160	16160-01B11	Spring-Throttle Primary
16160	16160-32M10	Spring-Throttle Primary
16161	16161-11M04	Hanger-Spring
16182	16182-W8800	Idle Speed Control-Fi Pot
16182	16258-01B01	Bracket-Dashpot
16182	16258-01B10	Bracket-Dashpot
16182	16258-12M02	Holder
16186	16144-19M02	Screw
16196	16184-H8900	Holder Assy-Adjust Screw
16196	16196-24B01	Iacv-Ficd Solenoid Valve
16196	16196-24B11	Iacv-Ficd Solenoid Valve
16214	16152-03B00	Plate
16217	16116-12M04	Collar
16217	16116-67A00	Collar
16236	16134-02B10	Lever Assy
16257	16155-10B10	Holder-Throttle Wire
16260	16257-02B01	Idle Speed Control Actuator
16302	16302-24B00	Lever-Pump
16302	16198-11M04	Pin-Cotter
16305	16305-19915	Shaft-Pump Lever
16305	16453-H1000	Washer
16305	16392-S5800	Collar
16343	17160-C0160	Seal-O Ring
16397	16135-18B10	Lever-Connecting
16452	16452-01B10	Spring-Pump Lever

OEM	Part name	Category
16082-23M00	Plate-Adjust	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16110-24B01	Throttle Body	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16110-24B03	Throttle Body	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16110-24B11	Throttle Body	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16110-24B13	Throttle Body	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16116-12M01	Sleeve-A	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16116-12M04	Collar	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16116-19M01	Collar	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16116-67A00	Collar	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16116-A5610	Sleeve-B	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16116-H1910	Sleeve-A	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16127-19M02	Plate-Return	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16128-24B00	Lever-Throttle	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16133-10B13	Lever-Connecting	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16134-02B10	Lever Assy	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16134-11M03	Lever-Throttle Switch	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16134-24B00	Lever-Throttle	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16135-01B20	Iacv-Ficd Lever	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16135-01B21	Iacv-Ficd Lever	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16135-18B10	Lever-Connecting	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16140-31M10	Spring-Lever	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16143-24B00	Rod-Pump	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16144-19M02	Screw	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16144-H8900	Screw-Adjust, Idle	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16145-46L00	Spring-Screw Adjust	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16145-61A03	Spring-Screw Adjust	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16145-H9820	Screw-Adjust, Throttle	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16152-03B00	Plate	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16155-10B10	Holder-Throttle Wire	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16156-33M20	Clip	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16160-01B11	Spring-Throttle Primary	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16160-31M15	Spring-Connecting	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16160-32M10	Spring-Throttle Primary	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16161-11M04	Hanger-Spring	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16182-W8800	Idle Speed Control-Fi Pot	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16184-H8900	Holder Assy-Adjust Screw	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16196-24B01	Iacv-Ficd Solenoid Valve	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16196-24B11	Iacv-Ficd Solenoid Valve	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16198-11M04	Pin-Cotter	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16257-02B01	Idle Speed Control Actuator	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16258-01B01	Bracket-Dashpot	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16258-01B10	Bracket-Dashpot	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16258-12M02	Holder	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16302-24B00	Lever-Pump	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16305-19915	Shaft-Pump Lever	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16392-S5800	Collar	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16452-01B10	Spring-Pump Lever	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
16453-H1000	Washer	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
17160-C0160	Seal-O Ring	Carburetor (1989-01-01 ~ ; 構成部品(2); ALL)
