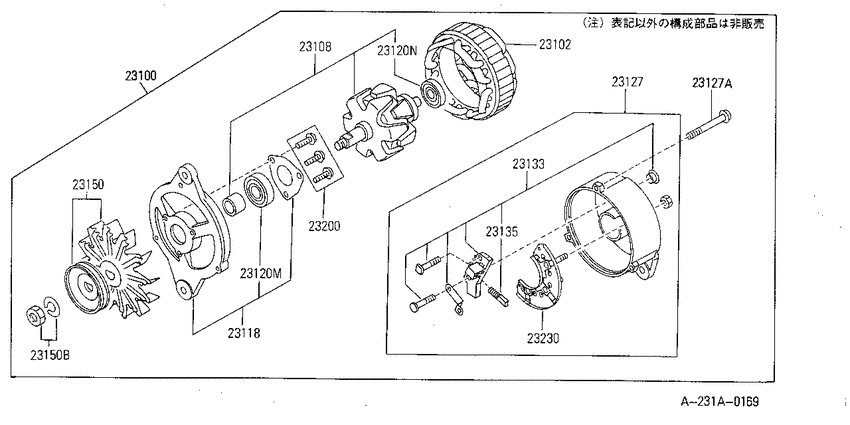

| 11713-21000 |
Shim-Alternator |
Alternator (1989-01-01 ~ ; 日立; MA10S) |
| 11713-21001 |
Shim-Alternator |
Alternator (1989-01-01 ~ ; 日立; MA10S) |
| 23100-03B05 |
Alternator Assy |
Alternator (1989-01-01 ~ ; 日立; MA10S) |
| 23102-01B05 |
Stator Assy |
Alternator (1989-01-01 ~ ; 日立; MA10S) |
| 23108-01B05 |
Rotor Assy |
Alternator (1989-01-01 ~ ; 日立; MA10S) |
| 23118-01B00 |
Cover Assy-Front |
Alternator (1989-01-01 ~ ; 日立; MA10S) |
| 23120-14801 |
Bearing-Ball |
Alternator (1989-01-01 ~ ; 日立; MA10S) |
| 23120-B9801 |
Bearing-Ball |
Alternator (1989-01-01 ~ ; 日立; MA10S) |
| 23127-01B00 |
Cover Assy-Rear |
Alternator (1989-01-01 ~ ; 日立; MA10S) |
| 23131-01B00 |
Bolt-Through |
Alternator (1989-01-01 ~ ; 日立; MA10S) |
| 23133-01B01 |
Holder Assy-Brush |
Alternator (1989-01-01 ~ ; 日立; MA10S) |
| 23135-01B00 |
Brush Assy |
Alternator (1989-01-01 ~ ; 日立; MA10S) |
| 23150-03B00 |
Pulley Assy |
Alternator (1989-01-01 ~ ; 日立; MA10S) |
| 23153-P4500 |
Nut Assy-Pulley |
Alternator (1989-01-01 ~ ; 日立; MA10S) |
| 23164-H0100 |
Bolt |
Alternator (1989-01-01 ~ ; 日立; MA10S) |
| 23200-B9801 |
Screw Set |
Alternator (1989-01-01 ~ ; 日立; MA10S) |
| 23230-01B00 |
Diode Assy |
Alternator (1989-01-01 ~ ; 日立; MA10S) |
