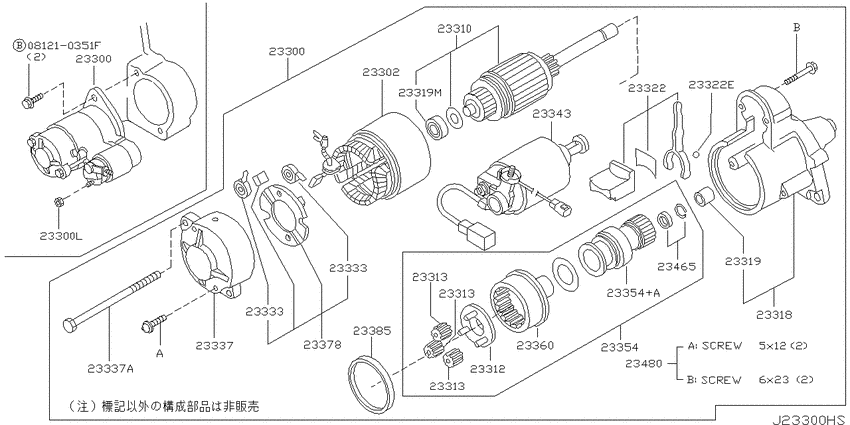

| 23300-AR000 |
Motor Assy-Starter |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23302-AR000 |
Yoke Assy |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23310-1P115 |
Armature Assy |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23312-53J12 |
Pinion Assy |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23318-AR000 |
Case Assy-Gear |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23319-W3410 |
Bearing-Gear Case |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23322-1P115 |
Lever Set-Shift |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23325-42L70 |
Ball-Shift Lever |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23333-1P115 |
Spring-Brush |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23337-AR000 |
Cover Assy-Rear |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23340-W1810 |
Bolt-Through |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23343-AR000 |
Switch Assy-Magnetic |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23354-1P115 |
Clutch Assy |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23354-1P116 |
Clutch Assy |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23360-WD000 |
Gear & Shaft Set |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23361-1P115 |
Gear |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23378-1P115 |
Holder Assy-Brush |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23385-42L70 |
Packing Set |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23465-42L70 |
Stopper Set-Pinion |
Starter motor (2008-02-01 ~ ; VK45DE) |
| 23480-M0110 |
Screw Set |
Starter motor (2008-02-01 ~ ; VK45DE) |
