Search › Model › PF50
PF50

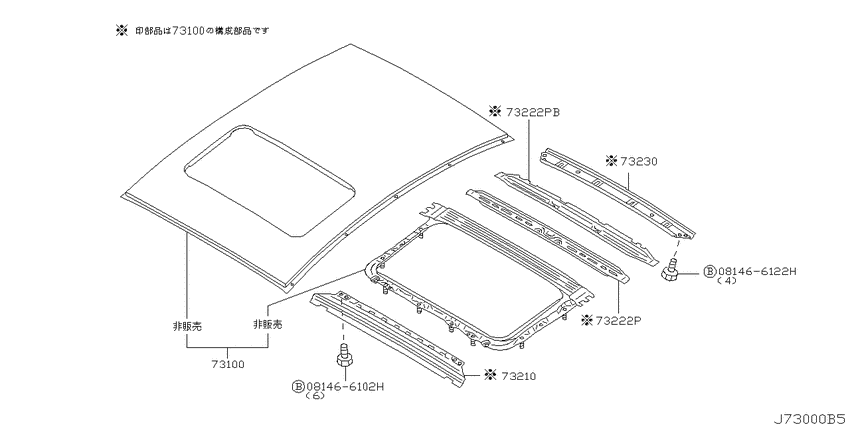

Roof panel & fitting (2008-02-01 ~ ; サン ルーフ; S) 9
| # | OEM | Part name |
|---|---|---|
| 73100 | 73100-AR035 | Roof Assy |
| 73210 | 73210-AR000 | Rail-Front Roof |
| 73210 | 73210-AR010 | Rail-Front Roof |
| 73222 | 73260-AR000 | Bow-Roof, Rear |
| 73222 | 73262-AT300 | Bow-Roof, Rear |
| 73222 | 73260-AR005 | Bow-Roof, Rear |
| 73222 | 73260-AR010 | Bow-Roof, Rear |
| 73230 | 73230-AR000 | Rail-Rear Roof |
| 81466102 | 08146-6102H | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08146-6102H | Bolt-hexagon | Roof panel & fitting (2008-02-01 ~ ; サン ルーフ; S) |
| 73100-AR035 | Roof Assy | Roof panel & fitting (2008-02-01 ~ ; サン ルーフ; S) |
| 73210-AR000 | Rail-Front Roof | Roof panel & fitting (2008-02-01 ~ ; サン ルーフ; S) |
| 73210-AR010 | Rail-Front Roof | Roof panel & fitting (2008-02-01 ~ ; サン ルーフ; S) |
| 73230-AR000 | Rail-Rear Roof | Roof panel & fitting (2008-02-01 ~ ; サン ルーフ; S) |
| 73260-AR000 | Bow-Roof, Rear | Roof panel & fitting (2008-02-01 ~ ; サン ルーフ; S) |
| 73260-AR005 | Bow-Roof, Rear | Roof panel & fitting (2008-02-01 ~ ; サン ルーフ; S) |
| 73260-AR010 | Bow-Roof, Rear | Roof panel & fitting (2008-02-01 ~ ; サン ルーフ; S) |
| 73262-AT300 | Bow-Roof, Rear | Roof panel & fitting (2008-02-01 ~ ; サン ルーフ; S) |
