Search › Model › PF50
PF50

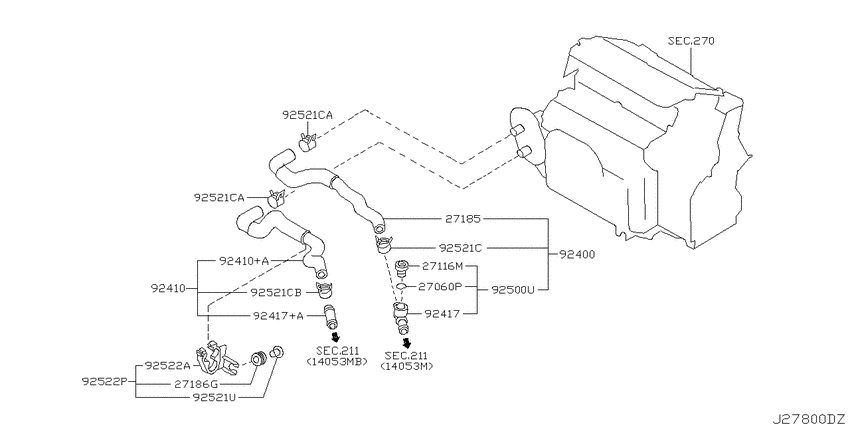

Heater piping (2008-02-01 ~ ; S) 12
| # | OEM | Part name |
|---|---|---|
| 27185 | 92401-AR000 | Hose-Front Heater, 3 |
| 27185 | 27185-AG000 | Door Assy-Foot |
| 27185 | 27185-AG001 | Door Assy-Foot |
| 27186 | 92290-AG000 | Grommet-Rubber |
| 92410 | 92411-AR000 | Hose-Heater, Outlet |
| 92417 | 92417-AR000 | Connector-Heater |
| 92417 | 92417-0W811 | Connector-Heater |
| 92500 | 92500-AR000 | Connector-Heater Hose |
| 92521 | 01558-00331 | CLIP |
| 92521 | 92280-65F00 | Clip |
| 92522 | 92520-AR000 | Clip |
| 92522 | 92555-AR000 | Clip |
| OEM | Part name | Category |
|---|---|---|
| 01558-00331 | CLIP | Heater piping (2008-02-01 ~ ; S) |
| 27185-AG000 | Door Assy-Foot | Heater piping (2008-02-01 ~ ; S) |
| 27185-AG001 | Door Assy-Foot | Heater piping (2008-02-01 ~ ; S) |
| 92280-65F00 | Clip | Heater piping (2008-02-01 ~ ; S) |
| 92290-AG000 | Grommet-Rubber | Heater piping (2008-02-01 ~ ; S) |
| 92401-AR000 | Hose-Front Heater, 3 | Heater piping (2008-02-01 ~ ; S) |
| 92411-AR000 | Hose-Heater, Outlet | Heater piping (2008-02-01 ~ ; S) |
| 92417-0W811 | Connector-Heater | Heater piping (2008-02-01 ~ ; S) |
| 92417-AR000 | Connector-Heater | Heater piping (2008-02-01 ~ ; S) |
| 92500-AR000 | Connector-Heater Hose | Heater piping (2008-02-01 ~ ; S) |
| 92520-AR000 | Clip | Heater piping (2008-02-01 ~ ; S) |
| 92555-AR000 | Clip | Heater piping (2008-02-01 ~ ; S) |
