Search › Model › PF50
PF50

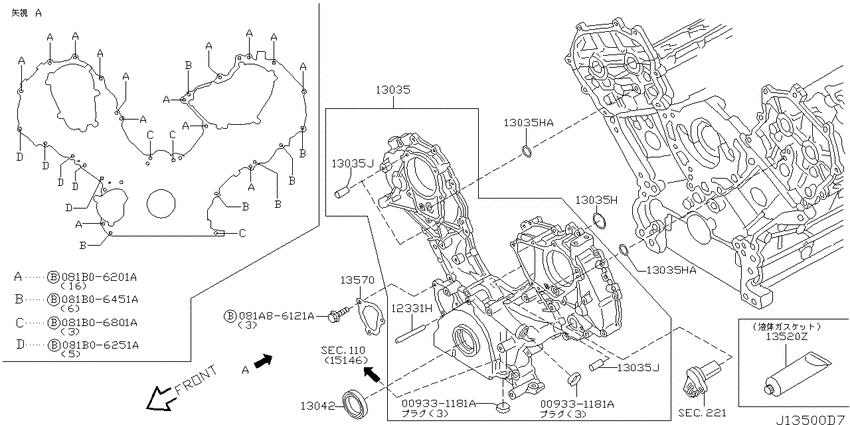

Front cover & fitting (2008-02-01 ~ ; フロントカバー; VK45DE) 7
| # | OEM | Part name |
|---|---|---|
| 12331 | 11022-AR000 | Pin |
| 13035 | 13500-AR000 | Cover Assy-Front |
| 13042 | 13510-1LA0A | Seal-Oil, Crankshaft Front |
| 13042 | 13510-6N210 | Seal-Oil, Crankshaft Front |
| 13042 | 13042-3HD0A | Seal-Oil, Camshaft |
| 13570 | 13570-AR000 | Cover-Belt, Back |
| 9331181 | 00933-1181A | Plug-Welch |
| OEM | Part name | Category |
|---|---|---|
| 00933-1181A | Plug-Welch | Front cover & fitting (2008-02-01 ~ ; フロントカバー; VK45DE) |
| 11022-AR000 | Pin | Front cover & fitting (2008-02-01 ~ ; フロントカバー; VK45DE) |
| 13042-3HD0A | Seal-Oil, Camshaft | Front cover & fitting (2008-02-01 ~ ; フロントカバー; VK45DE) |
| 13500-AR000 | Cover Assy-Front | Front cover & fitting (2008-02-01 ~ ; フロントカバー; VK45DE) |
| 13510-1LA0A | Seal-Oil, Crankshaft Front | Front cover & fitting (2008-02-01 ~ ; フロントカバー; VK45DE) |
| 13510-6N210 | Seal-Oil, Crankshaft Front | Front cover & fitting (2008-02-01 ~ ; フロントカバー; VK45DE) |
| 13570-AR000 | Cover-Belt, Back | Front cover & fitting (2008-02-01 ~ ; フロントカバー; VK45DE) |
