Search › Model › PF50
PF50

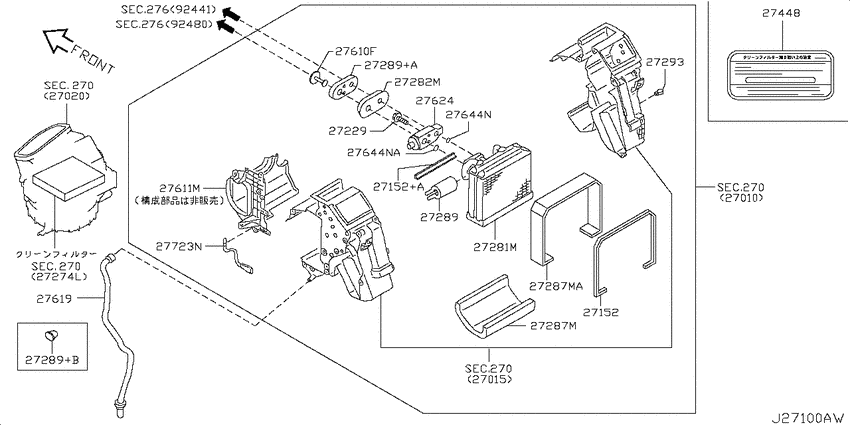

Cooling unit (2008-02-01 ~ ; S) 12
| # | OEM | Part name |
|---|---|---|
| 27152 | 28716-AR200 | Seal |
| 27152 | 27808-AR200 | Seal |
| 27152 | 27288-AT300 | Seal-Air Purifier |
| 27281 | 27281-AG000 | Evapolator Assy-Front |
| 27287 | 27287-AG000 | Seal-Cooling Unit |
| 27287 | 27287-AG005 | Seal-Cooling Unit |
| 27289 | 27289-AG001 | Grommet |
| 27289 | 27289-AG000 | Grommet |
| 27289 | 92560-AG000 | Grommet |
| 27293 | 27293-41B00 | Bracket |
| 27611 | 27284-AG000 | Case-Cooling Unit |
| 27624 | 92200-4Y800 | Valve Assy-Expansion |
| OEM | Part name | Category |
|---|---|---|
| 27281-AG000 | Evapolator Assy-Front | Cooling unit (2008-02-01 ~ ; S) |
| 27284-AG000 | Case-Cooling Unit | Cooling unit (2008-02-01 ~ ; S) |
| 27287-AG000 | Seal-Cooling Unit | Cooling unit (2008-02-01 ~ ; S) |
| 27287-AG005 | Seal-Cooling Unit | Cooling unit (2008-02-01 ~ ; S) |
| 27288-AT300 | Seal-Air Purifier | Cooling unit (2008-02-01 ~ ; S) |
| 27289-AG000 | Grommet | Cooling unit (2008-02-01 ~ ; S) |
| 27289-AG001 | Grommet | Cooling unit (2008-02-01 ~ ; S) |
| 27293-41B00 | Bracket | Cooling unit (2008-02-01 ~ ; S) |
| 27808-AR200 | Seal | Cooling unit (2008-02-01 ~ ; S) |
| 28716-AR200 | Seal | Cooling unit (2008-02-01 ~ ; S) |
| 92200-4Y800 | Valve Assy-Expansion | Cooling unit (2008-02-01 ~ ; S) |
| 92560-AG000 | Grommet | Cooling unit (2008-02-01 ~ ; S) |
