Search › Model › PF50
PF50

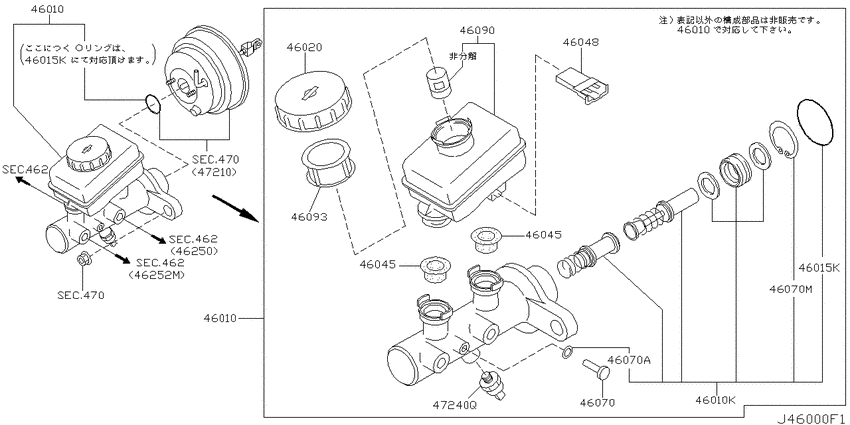

Brake master cylinder (2008-02-01 ~ ; VK45DE) 8
| # | OEM | Part name |
|---|---|---|
| 46010 | 46011-AS526 | Piston Kit-Tandem Brake Master Cylinder |
| 46015 | 46096-2U026 | Seal Kit-O Ring |
| 46020 | 46020-AL600 | Cap Assy-Oil Reservoir Tank |
| 46048 | 46048-64J01 | Indicator Assy-Level |
| 46070 | 46032-70T00 | Screw-Stopper |
| 46070 | 46079-W1010 | Packing-Stopper Screw |
| 46070 | 46070-2U000 | Stop Ring-Piston |
| 46090 | 46091-AL600 | Tank-Oil Reservoir |
| OEM | Part name | Category |
|---|---|---|
| 46011-AS526 | Piston Kit-Tandem Brake Master Cylinder | Brake master cylinder (2008-02-01 ~ ; VK45DE) |
| 46020-AL600 | Cap Assy-Oil Reservoir Tank | Brake master cylinder (2008-02-01 ~ ; VK45DE) |
| 46032-70T00 | Screw-Stopper | Brake master cylinder (2008-02-01 ~ ; VK45DE) |
| 46048-64J01 | Indicator Assy-Level | Brake master cylinder (2008-02-01 ~ ; VK45DE) |
| 46070-2U000 | Stop Ring-Piston | Brake master cylinder (2008-02-01 ~ ; VK45DE) |
| 46079-W1010 | Packing-Stopper Screw | Brake master cylinder (2008-02-01 ~ ; VK45DE) |
| 46091-AL600 | Tank-Oil Reservoir | Brake master cylinder (2008-02-01 ~ ; VK45DE) |
| 46096-2U026 | Seal Kit-O Ring | Brake master cylinder (2008-02-01 ~ ; VK45DE) |
