Search › Model › PF50
PF50

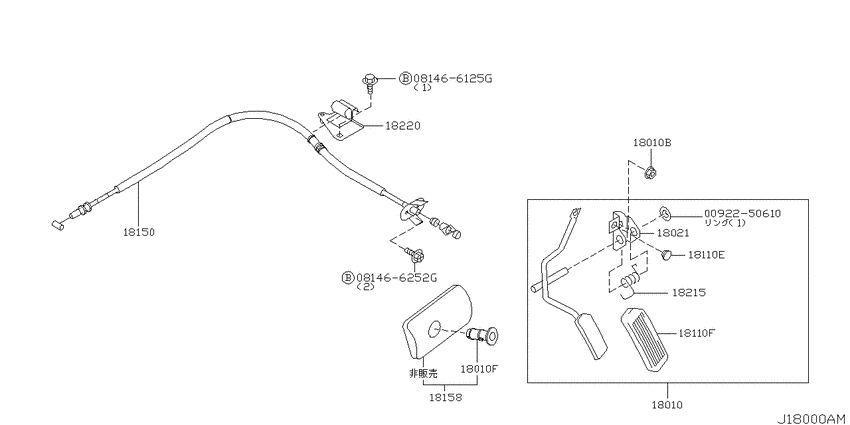

Accelerator linkage (2008-02-01 ~ ; VK45DE) 9
| # | OEM | Part name |
|---|---|---|
| 18010 | 18005-AG000 | Lever Assy-Pedal |
| 18010 | 18159-AG005 | Clip |
| 18021 | 18021-AG000 | Bracket-Pedal Lever |
| 18110 | 18052-4P000 | Stopper Rubber-Accelerator Pedal |
| 18110 | 18016-4P000 | Pad-Accelerator Pedal |
| 18150 | 18201-AT400 | Wire Assy-Accelerator |
| 18158 | 18158-AG005 | Cover-Accelerator Stopper |
| 18215 | 18215-AG000 | Spring-Return |
| 18220 | 18220-AT400 | Clamp Assy-Accel Cable |
| OEM | Part name | Category |
|---|---|---|
| 18005-AG000 | Lever Assy-Pedal | Accelerator linkage (2008-02-01 ~ ; VK45DE) |
| 18016-4P000 | Pad-Accelerator Pedal | Accelerator linkage (2008-02-01 ~ ; VK45DE) |
| 18021-AG000 | Bracket-Pedal Lever | Accelerator linkage (2008-02-01 ~ ; VK45DE) |
| 18052-4P000 | Stopper Rubber-Accelerator Pedal | Accelerator linkage (2008-02-01 ~ ; VK45DE) |
| 18158-AG005 | Cover-Accelerator Stopper | Accelerator linkage (2008-02-01 ~ ; VK45DE) |
| 18159-AG005 | Clip | Accelerator linkage (2008-02-01 ~ ; VK45DE) |
| 18201-AT400 | Wire Assy-Accelerator | Accelerator linkage (2008-02-01 ~ ; VK45DE) |
| 18215-AG000 | Spring-Return | Accelerator linkage (2008-02-01 ~ ; VK45DE) |
| 18220-AT400 | Clamp Assy-Accel Cable | Accelerator linkage (2008-02-01 ~ ; VK45DE) |
