Search › Model › PC5W

PC5W

Mitsubishi SPACE-GEAR · 2,476 parts · 184 categories

← Back to categories

2,476 items

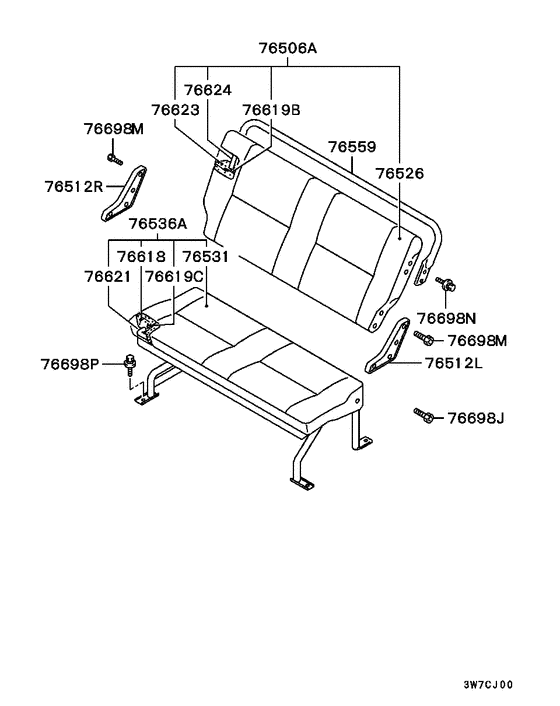

Third seat (BENCH) 17

#	OEM	Part name
76506	MR734567	BACK ASSY,2ND SEAT
76512	MT411245	BRACKET, FR SEAT
76512	MT411246	BRACKET, FR SEAT
76526	MR734579	COVER,2ND SEAT BACK
76531	MR734576	COVER,2ND SEAT CUSHION
76536	MR734564	CUSHION ASSY,2ND SEAT
76559	MR742810	GRIP,2ND SEAT BACK
76618	MB695259	PAD,2ND SEAT CUSHION
76619	MB042372	WIRE, RR SEAT TRIMMING - 2.6x300
76619	MB042939	WIRE, 2ND SEAT TRIMMING - 1.6x780
76621	MR177768	FRAME,2ND SEAT CUSHION
76623	MR177744	PAD,2ND SEAT BACK
76624	MR742814	FRAME,2ND SEAT BACK - BLACK
76698	MS240910	BOLT, SPARE FUEL TANK SUPPORT - Washer assembled,8x20
76698	MB824334	BOLT, 3RD SEAT - Washer assembled
76698	MF240053	BOLT, CYLINDER HEAD - Washer assembled,8x20
76698	MU241027	BOLT, FR SEAT - Washer assembled,10x37

OEM	Part name	Category
MB042372	WIRE, RR SEAT TRIMMING - 2.6x300	Third seat (BENCH)
MB042939	WIRE, 2ND SEAT TRIMMING - 1.6x780	Third seat (BENCH)
MB695259	PAD,2ND SEAT CUSHION	Third seat (BENCH)
MB824334	BOLT, 3RD SEAT - Washer assembled	Third seat (BENCH)
MF240053	BOLT, CYLINDER HEAD - Washer assembled,8x20	Third seat (BENCH)
MR177744	PAD,2ND SEAT BACK	Third seat (BENCH)
MR177768	FRAME,2ND SEAT CUSHION	Third seat (BENCH)
MR734564	CUSHION ASSY,2ND SEAT	Third seat (BENCH)
MR734567	BACK ASSY,2ND SEAT	Third seat (BENCH)
MR734576	COVER,2ND SEAT CUSHION	Third seat (BENCH)
MR734579	COVER,2ND SEAT BACK	Third seat (BENCH)
MR742810	GRIP,2ND SEAT BACK	Third seat (BENCH)
MR742814	FRAME,2ND SEAT BACK - BLACK	Third seat (BENCH)
MS240910	BOLT, SPARE FUEL TANK SUPPORT - Washer assembled,8x20	Third seat (BENCH)
MT411245	BRACKET, FR SEAT	Third seat (BENCH)
MT411246	BRACKET, FR SEAT	Third seat (BENCH)
MU241027	BOLT, FR SEAT - Washer assembled,10x37	Third seat (BENCH)
