Search › Model › PC4W

PC4W

Mitsubishi DELICA-SPACE-GEAR · 1999 · 3,036 parts · 222 categories

3,036 items

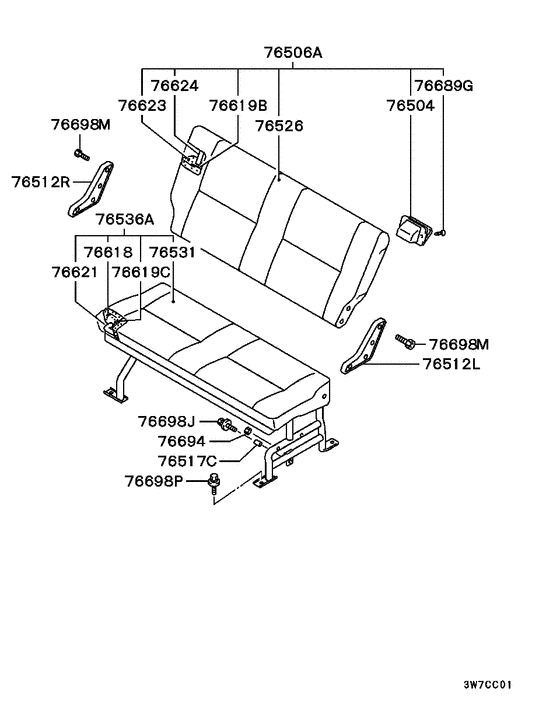

Third seat (BENCH) 22

#	OEM	Part name
76504	MB253130	ASHTRAY, RR DOOR TRIM
76506	MR775825	BACK ASSY, 2ND SEAT
76512	MT411245	BRACKET, FR SEAT
76512	MT411246	BRACKET, FR SEAT
76517	MB278660	COLLAR, RR SEAT
76517	MR474921	COLLAR, RR SEAT
76517	MR474922	COLLAR, RR SEAT
76526	MR775845	COVER, 2ND SEAT BACK
76531	MR775839	COVER, 3RD SEAT CUSHION
76536	MR775819	CUSHION ASSY, 3RD SEAT
76618	MR140730	PAD, 2ND SEAT CUSHION
76619	MB042372	WIRE, RR SEAT TRIMMING - 2.6x300
76619	MB042939	WIRE, 2ND SEAT TRIMMING - 1.6x780
76621	MR140725	FRAME, 3RD SEAT CUSHION
76623	MR140732	PAD, 2ND SEAT BACK
76624	MR733642	FRAME, 2ND SEAT BACK
76624	MR742783	FRAME, 2ND SEAT BACK
76689	MF453914	SCREW, FR SEAT - Tapping,4x14
76694	MS440503	NUT - Washer assembled,8
76698	MS240910	BOLT, SPARE FUEL TANK SUPPORT - Washer assembled,8x20
76698	MB824334	BOLT, 3RD SEAT - Washer assembled
76698	MU241027	BOLT, FR SEAT - Washer assembled,10x37

OEM	Part name	Category
MB042372	WIRE, RR SEAT TRIMMING - 2.6x300	Third seat (BENCH)
MB042939	WIRE, 2ND SEAT TRIMMING - 1.6x780	Third seat (BENCH)
MB253130	ASHTRAY, RR DOOR TRIM	Third seat (BENCH)
MB278660	COLLAR, RR SEAT	Third seat (BENCH)
MB824334	BOLT, 3RD SEAT - Washer assembled	Third seat (BENCH)
MF453914	SCREW, FR SEAT - Tapping,4x14	Third seat (BENCH)
MR140725	FRAME, 3RD SEAT CUSHION	Third seat (BENCH)
MR140730	PAD, 2ND SEAT CUSHION	Third seat (BENCH)
MR140732	PAD, 2ND SEAT BACK	Third seat (BENCH)
MR474921	COLLAR, RR SEAT	Third seat (BENCH)
MR474922	COLLAR, RR SEAT	Third seat (BENCH)
MR733642	FRAME, 2ND SEAT BACK	Third seat (BENCH)
MR742783	FRAME, 2ND SEAT BACK	Third seat (BENCH)
MR775819	CUSHION ASSY, 3RD SEAT	Third seat (BENCH)
MR775825	BACK ASSY, 2ND SEAT	Third seat (BENCH)
MR775839	COVER, 3RD SEAT CUSHION	Third seat (BENCH)
MR775845	COVER, 2ND SEAT BACK	Third seat (BENCH)
MS240910	BOLT, SPARE FUEL TANK SUPPORT - Washer assembled,8x20	Third seat (BENCH)
MS440503	NUT - Washer assembled,8	Third seat (BENCH)
MT411245	BRACKET, FR SEAT	Third seat (BENCH)
MT411246	BRACKET, FR SEAT	Third seat (BENCH)
MU241027	BOLT, FR SEAT - Washer assembled,10x37	Third seat (BENCH)
