Search › Model › PAB40

PAB40

Toyota AYGO · 2014 · 1,863 parts · 159 categories

1,863 items

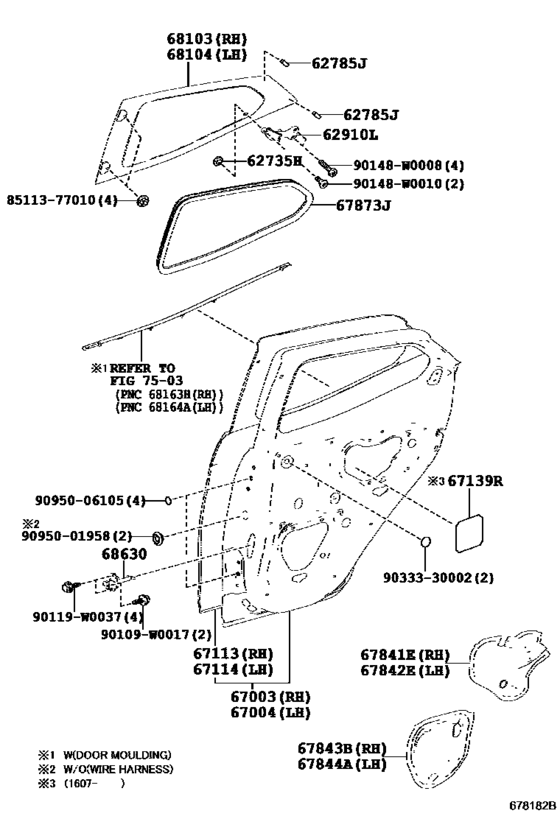

Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D) 40

#	OEM	Part name
62735	62735-YV010	Retainer, Quarter Window Hinge
62785	62785-0H020	Spacer, Quarter Window Glass
62910	62910-0H030	Lock Assy, Side Window
67003	67003-0H030	Panel Sub-Assy, Rear Door, Rh
67003	67003-0H050	Panel Sub-Assy, Rear Door, Rh
67004	67004-0H030	Panel Sub-Assy, Rear Door, Lh
67004	67004-0H050	Panel Sub-Assy, Rear Door, Lh
67113	67113-0H030	Panel, Rear Door, Outer Rh
67113	67113-0H050	Panel, Rear Door, Outer Rh
67114	67114-0H030	Panel, Rear Door, Outer Lh
67114	67114-0H050	Panel, Rear Door, Outer Lh
67139	67139-0H020	Lining, Door Outside Panel Reinforcement
67841	67841-0H020	Cover, Rear Door Service Hole, Rh
67842	67842-0H020	Cover, Rear Door Service Hole, Lh
67843	67843-0H020	Cover, Rear Door Service Hole, No.2 Rh
67844	67844-0H020	Cover, Rear Door Service Hole, No.2 Lh
67873	67873-0H030	Weatherstrip, Rear Door Glass, Front
68103	68130-0H050	Glass Sub-Assy, Rear Door, Rh
68103	68130-0H051	Glass Sub-Assy, Rear Door, Rh
68103	68130-0H060	Glass Sub-Assy, Rear Door, Rh
68103	68130-0H100	Glass Sub-Assy, Rear Door, Rh
68103	68130-0H101	Glass Sub-Assy, Rear Door, Rh
68103	68130-0H130	Glass Sub-Assy, Rear Door, Rh
68103	68130-0H131	Glass Sub-Assy, Rear Door, Rh
68104	68140-0H050	Glass Sub-Assy, Rear Door, Lh
68104	68140-0H051	Glass Sub-Assy, Rear Door, Lh
68104	68140-0H060	Glass Sub-Assy, Rear Door, Lh
68104	68140-0H100	Glass Sub-Assy, Rear Door, Lh
68104	68140-0H101	Glass Sub-Assy, Rear Door, Lh
68104	68140-0H130	Glass Sub-Assy, Rear Door, Lh
68104	68140-0H131	Glass Sub-Assy, Rear Door, Lh
68630	68630-0H020	Check Assy, Rear Door
90109	90109-W0017	New Genuine Part
90119	90119-W0037	Bolt, W/washer
90148	90148-W0008	New Genuine Part
90148	90148-W0010	New Genuine Part
8511377010	85113-77010	Nut
9033330002	90333-30002	Cover, Front Floor Hole
9095001958	90950-01958	Plug, Hole(For Back Door Panel)
9095006105	90950-06105	Seal, Front Door Front Lower Frame Cover

OEM	Part name	Category
62735-YV010	Retainer, Quarter Window Hinge	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
62785-0H020	Spacer, Quarter Window Glass	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
62910-0H030	Lock Assy, Side Window	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
67003-0H030	Panel Sub-Assy, Rear Door, Rh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
67003-0H050	Panel Sub-Assy, Rear Door, Rh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
67004-0H030	Panel Sub-Assy, Rear Door, Lh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
67004-0H050	Panel Sub-Assy, Rear Door, Lh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
67113-0H030	Panel, Rear Door, Outer Rh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
67113-0H050	Panel, Rear Door, Outer Rh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
67114-0H030	Panel, Rear Door, Outer Lh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
67114-0H050	Panel, Rear Door, Outer Lh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
67139-0H020	Lining, Door Outside Panel Reinforcement	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
67841-0H020	Cover, Rear Door Service Hole, Rh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
67842-0H020	Cover, Rear Door Service Hole, Lh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
67843-0H020	Cover, Rear Door Service Hole, No.2 Rh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
67844-0H020	Cover, Rear Door Service Hole, No.2 Lh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
67873-0H030	Weatherstrip, Rear Door Glass, Front	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
68130-0H050	Glass Sub-Assy, Rear Door, Rh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
68130-0H051	Glass Sub-Assy, Rear Door, Rh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
68130-0H060	Glass Sub-Assy, Rear Door, Rh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
68130-0H100	Glass Sub-Assy, Rear Door, Rh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
68130-0H101	Glass Sub-Assy, Rear Door, Rh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
68130-0H130	Glass Sub-Assy, Rear Door, Rh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
68130-0H131	Glass Sub-Assy, Rear Door, Rh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
68140-0H050	Glass Sub-Assy, Rear Door, Lh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
68140-0H051	Glass Sub-Assy, Rear Door, Lh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
68140-0H060	Glass Sub-Assy, Rear Door, Lh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
68140-0H100	Glass Sub-Assy, Rear Door, Lh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
68140-0H101	Glass Sub-Assy, Rear Door, Lh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
68140-0H130	Glass Sub-Assy, Rear Door, Lh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
68140-0H131	Glass Sub-Assy, Rear Door, Lh	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
68630-0H020	Check Assy, Rear Door	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
85113-77010	Nut	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
90109-W0017	New Genuine Part	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
90119-W0037	Bolt, W/washer	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
90148-W0008	New Genuine Part	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
90148-W0010	New Genuine Part	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
90333-30002	Cover, Front Floor Hole	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
90950-01958	Plug, Hole(For Back Door Panel)	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
90950-06105	Seal, Front Door Front Lower Frame Cover	Rear Door Panel & Glass ([05.2014 - ] DOOR PANEL (1405- )5D)
