Search › Model › PAB40

PAB40

Toyota AYGO · 2014 · 1,863 parts · 159 categories

← Back to categories

1,863 items

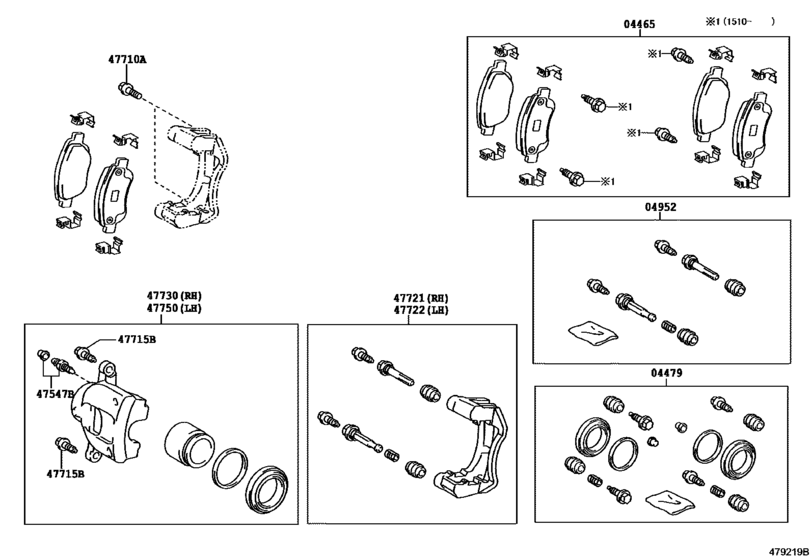

Front Disc Brake Caliper & Dust Cover ([05.2014 - ] (1405- )) 15

#	OEM	Part name
4465	04465-0H020	Pad Kit, Disc Brake, Front
4465	04465-0H031	Pad Kit, Disc Brake, Front
4465	04465-0H030	Pad Kit, Disc Brake, Front
4479	04478-0H020	Cylinder Kit, Disc Brake, Front
4479	04478-0H021	Cylinder Kit, Disc Brake, Front
4952	04952-0H040	Pin Kit, Front Disc Brake Cylinder Slide
47547	47547-09040	Plug, Bleeder(For Front Disc Brake)
47710	90105-W0121	Bolt, Hexagon(For Front Disc Brake Caliper)
47715	47715-05060	Bolt(For Front Disc Brake Cylinder Slide)
47721	47721-09210	Mounting, Front Disc Brake Cylinder, Rh
47721	47721-09211	Mounting, Front Disc Brake Cylinder, Rh
47722	47722-09070	Mounting, Front Disc Brake Cylinder, Lh
47722	47722-09071	Mounting, Front Disc Brake Cylinder, Lh
47730	47730-0H010	Cylinder Assy, Front Disc Brake, Rh
47750	47750-0H010	Cylinder Assy, Disc Brake, Lh

OEM	Part name	Category
04465-0H020	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2014 - ] (1405- ))
04465-0H030	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2014 - ] (1405- ))
04465-0H031	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2014 - ] (1405- ))
04478-0H020	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2014 - ] (1405- ))
04478-0H021	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([05.2014 - ] (1405- ))
04952-0H040	Pin Kit, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([05.2014 - ] (1405- ))
47547-09040	Plug, Bleeder(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([05.2014 - ] (1405- ))
47715-05060	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([05.2014 - ] (1405- ))
47721-09210	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([05.2014 - ] (1405- ))
47721-09211	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([05.2014 - ] (1405- ))
47722-09070	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([05.2014 - ] (1405- ))
47722-09071	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([05.2014 - ] (1405- ))
47730-0H010	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([05.2014 - ] (1405- ))
47750-0H010	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([05.2014 - ] (1405- ))
90105-W0121	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([05.2014 - ] (1405- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 159
Collected: 2026-08-02
