Search › Model › PAB40

PAB40

Toyota AYGO · 2014 · 1,863 parts · 159 categories

← Back to categories

1,863 items

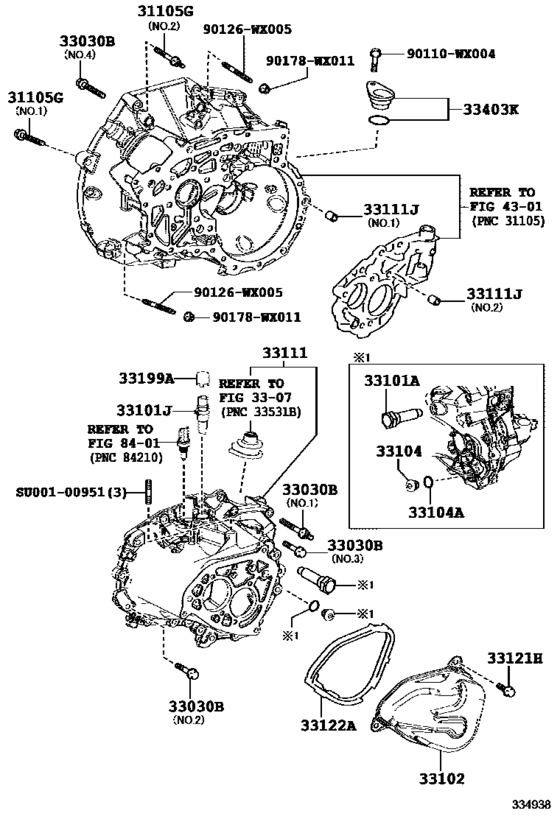

Clutch Housing & Transmission Case (Mtm) ([05.2014 - ] MA5N (1405- )PAB40) 7

#	OEM	Part name
31105	90105-WX014	Bolt(For Transaxle Case & Engine Setting)
31105	90116-WX002	Bolt(For Transaxle Case & Engine Setting)
33030	90105-WX003	Bolt(For Transaxle Case & Transmission Case Setting)
33403	33403-YV010	Cover Sub-Assy, Speedometer Driven Hole
90110	90110-WX004	New Genuine Part
90126	90126-WX005	New Genuine Part
90178	90178-WX011	New Genuine Part

OEM	Part name	Category
33403-YV010	Cover Sub-Assy, Speedometer Driven Hole	Clutch Housing & Transmission Case (Mtm) ([05.2014 - ] MA5N (1405- )PAB40)
90105-WX003	Bolt(For Transaxle Case & Transmission Case Setting)	Clutch Housing & Transmission Case (Mtm) ([05.2014 - ] MA5N (1405- )PAB40)
90105-WX014	Bolt(For Transaxle Case & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([05.2014 - ] MA5N (1405- )PAB40)
90110-WX004	New Genuine Part	Clutch Housing & Transmission Case (Mtm) ([05.2014 - ] MA5N (1405- )PAB40)
90116-WX002	Bolt(For Transaxle Case & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([05.2014 - ] MA5N (1405- )PAB40)
90126-WX005	New Genuine Part	Clutch Housing & Transmission Case (Mtm) ([05.2014 - ] MA5N (1405- )PAB40)
90178-WX011	New Genuine Part	Clutch Housing & Transmission Case (Mtm) ([05.2014 - ] MA5N (1405- )PAB40)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 159
Collected: 2026-08-02
