PAB40

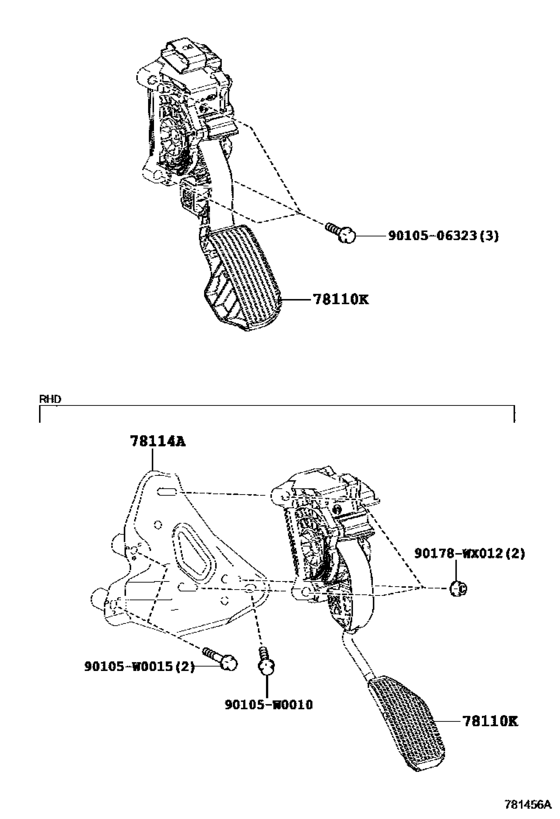

Accelerator Link ([05.2014 - ] (1405- )PAB40) 7
| # | OEM | Part name |
|---|---|---|
| 78110 | 78010-YV040 | Sensor Assy, Accelerator Pedal |
| 78114 | 78011-0H010 | Bracket, Accelerator Pedal Support |
| 78114 | 78011-0H011 | Bracket, Accelerator Pedal Support |
| 90105 | 90105-W0010 | New Genuine Part |
| 90105 | 90105-W0015 | Bolt(For Head To Camshaft Bearing Cap) |
| 90178 | 90178-WX012 | New Genuine Part |
| 9010506323 | 90105-06323 | BOLT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 78010-YV040 | Sensor Assy, Accelerator Pedal | Accelerator Link ([05.2014 - ] (1405- )PAB40) |
| 78011-0H010 | Bracket, Accelerator Pedal Support | Accelerator Link ([05.2014 - ] (1405- )PAB40) |
| 78011-0H011 | Bracket, Accelerator Pedal Support | Accelerator Link ([05.2014 - ] (1405- )PAB40) |
| 90105-06323 | BOLT FLANGE | Accelerator Link ([05.2014 - ] (1405- )PAB40) |
| 90105-W0010 | New Genuine Part | Accelerator Link ([05.2014 - ] (1405- )PAB40) |
| 90105-W0015 | Bolt(For Head To Camshaft Bearing Cap) | Accelerator Link ([05.2014 - ] (1405- )PAB40) |
| 90178-WX012 | New Genuine Part | Accelerator Link ([05.2014 - ] (1405- )PAB40) |
