Search › Model › P27V
P27V

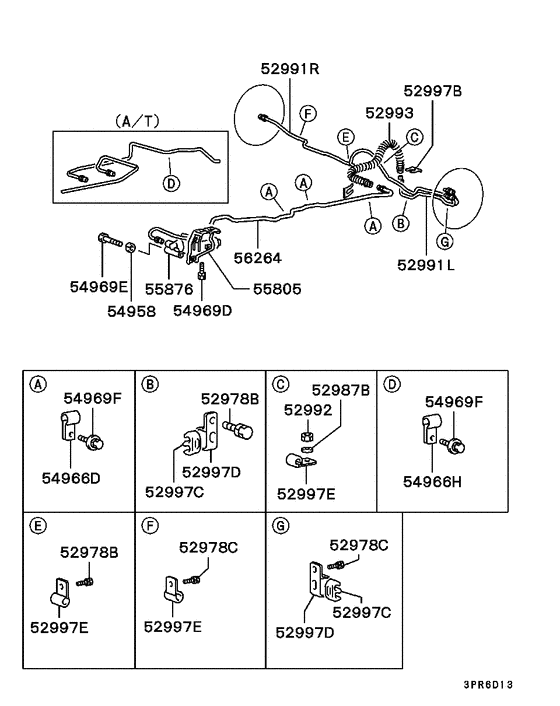

Brake line (REAR) 18
| # | OEM | Part name |
|---|---|---|
| 52978 | MF240051 | BOLT, ROCKER COVER - Washer assembled,8x16 |
| 52987 | MF450405 | WASHER, CYLINDER HEAD - Spring,8 |
| 52991 | MB407109 | TUBE, RR AXLE BRAKE, LH |
| 52991 | MB407110 | TUBE, RR AXLE BRAKE, RH |
| 52992 | MF430005 | NUT, ROCKER COVER - 8 |
| 52993 | MR129784 | HOSE, FR BRAKE BODY SIDE - 370 |
| 52997 | MA431825 | CLIP, BRAKE FLUID LINE - 13 |
| 52997 | MB082164 | CLIP, FUEL RETURN LINE - 4.6 |
| 52997 | MB133249 | CLIP, RR AXLE BRAKE TUBE - 1/4x2 |
| 52997 | MB193006 | CLIP, FUEL LINE - D=4.76 |
| 54966 | MB044570 | CLIP, ACCEL CONTROL EQUIP - 15 |
| 54969 | MS240095 | BOLT, ENG OIL COOLER LINE - Washer assembled,8x16 |
| 54969 | MF103169 | BOLT, T/F GEARSHIFT LINK - 8x70 |
| 54969 | MF241267 | BOLT, TIMING CHAIN CASE - Washer assembled,8x70 |
| 54969 | MS240122 | BOLT, ENG FR MOUNTING - Washer assembled,6x20 |
| 55805 | MB407087 | BRACKET, BRAKE FLUID LINE VALVE |
| 55876 | MB407058 | VALVE, BRAKE FLUID PROPORTIONING |
| 56264 | MB407112 | TUBE, BRAKE MAIN, RR |
| OEM | Part name | Category |
|---|---|---|
| MA431825 | CLIP, BRAKE FLUID LINE - 13 | Brake line (REAR) |
| MB044570 | CLIP, ACCEL CONTROL EQUIP - 15 | Brake line (REAR) |
| MB082164 | CLIP, FUEL RETURN LINE - 4.6 | Brake line (REAR) |
| MB133249 | CLIP, RR AXLE BRAKE TUBE - 1/4x2 | Brake line (REAR) |
| MB193006 | CLIP, FUEL LINE - D=4.76 | Brake line (REAR) |
| MB407058 | VALVE, BRAKE FLUID PROPORTIONING | Brake line (REAR) |
| MB407087 | BRACKET, BRAKE FLUID LINE VALVE | Brake line (REAR) |
| MB407109 | TUBE, RR AXLE BRAKE, LH | Brake line (REAR) |
| MB407110 | TUBE, RR AXLE BRAKE, RH | Brake line (REAR) |
| MB407112 | TUBE, BRAKE MAIN, RR | Brake line (REAR) |
| MF103169 | BOLT, T/F GEARSHIFT LINK - 8x70 | Brake line (REAR) |
| MF240051 | BOLT, ROCKER COVER - Washer assembled,8x16 | Brake line (REAR) |
| MF241267 | BOLT, TIMING CHAIN CASE - Washer assembled,8x70 | Brake line (REAR) |
| MF430005 | NUT, ROCKER COVER - 8 | Brake line (REAR) |
| MF450405 | WASHER, CYLINDER HEAD - Spring,8 | Brake line (REAR) |
| MR129784 | HOSE, FR BRAKE BODY SIDE - 370 | Brake line (REAR) |
| MS240095 | BOLT, ENG OIL COOLER LINE - Washer assembled,8x16 | Brake line (REAR) |
| MS240122 | BOLT, ENG FR MOUNTING - Washer assembled,6x20 | Brake line (REAR) |
