Search › Model › P23W
P23W

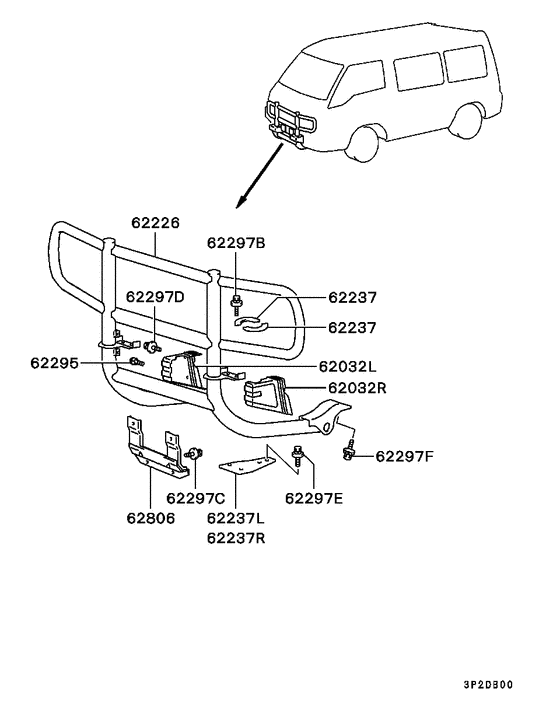

Grille guard 15
| # | OEM | Part name |
|---|---|---|
| 62032 | MB507491 | GUARD, FR BUMPER, LH |
| 62032 | MB507492 | GUARD, FR BUMPER, RH |
| 62226 | MB507360 | GUARD,RADIATOR GRILLE |
| 62237 | MB507430 | PLATE, FR GRILLE GUARD |
| 62237 | MB502197 | PLATE, FR GRILLE GUARD, LH |
| 62237 | MB502198 | PLATE, FR GRILLE GUARD, RH |
| 62295 | MF351032 | SCREW, FUEL FILLER LID LOCKING - Washer assembled,6x16 |
| 62297 | MF244884 | BOLT, ENG RR MOUNTING - Washer assembled,10x35 |
| 62297 | MF247278 | BOLT, FENDER SHIELD - Washer assembled,10x20 |
| 62297 | MS240031 | BOLT, RADIATOR CONDENSER TANK - Washer assembled,6x12 |
| 62297 | MF244882 | BOLT, ENG RR MOUNTING - Washer assembled,10x30 |
| 62297 | MF244880 | BOLT, ENG RR MOUNTING - Washer assembled,10x25 |
| 62806 | MB362541 | BRACKET, FR LICENSE PLATE |
| 62806 | MB507865 | BRACKET,FR LICENSE PLATE |
| 62806 | MB614180 | BRACKET,FR LICENSE PLATE |
| OEM | Part name | Category |
|---|---|---|
| MB362541 | BRACKET, FR LICENSE PLATE | Grille guard |
| MB502197 | PLATE, FR GRILLE GUARD, LH | Grille guard |
| MB502198 | PLATE, FR GRILLE GUARD, RH | Grille guard |
| MB507360 | GUARD,RADIATOR GRILLE | Grille guard |
| MB507430 | PLATE, FR GRILLE GUARD | Grille guard |
| MB507491 | GUARD, FR BUMPER, LH | Grille guard |
| MB507492 | GUARD, FR BUMPER, RH | Grille guard |
| MB507865 | BRACKET,FR LICENSE PLATE | Grille guard |
| MB614180 | BRACKET,FR LICENSE PLATE | Grille guard |
| MF244880 | BOLT, ENG RR MOUNTING - Washer assembled,10x25 | Grille guard |
| MF244882 | BOLT, ENG RR MOUNTING - Washer assembled,10x30 | Grille guard |
| MF244884 | BOLT, ENG RR MOUNTING - Washer assembled,10x35 | Grille guard |
| MF247278 | BOLT, FENDER SHIELD - Washer assembled,10x20 | Grille guard |
| MF351032 | SCREW, FUEL FILLER LID LOCKING - Washer assembled,6x16 | Grille guard |
| MS240031 | BOLT, RADIATOR CONDENSER TANK - Washer assembled,6x12 | Grille guard |
