Search › Model › P23W
P23W

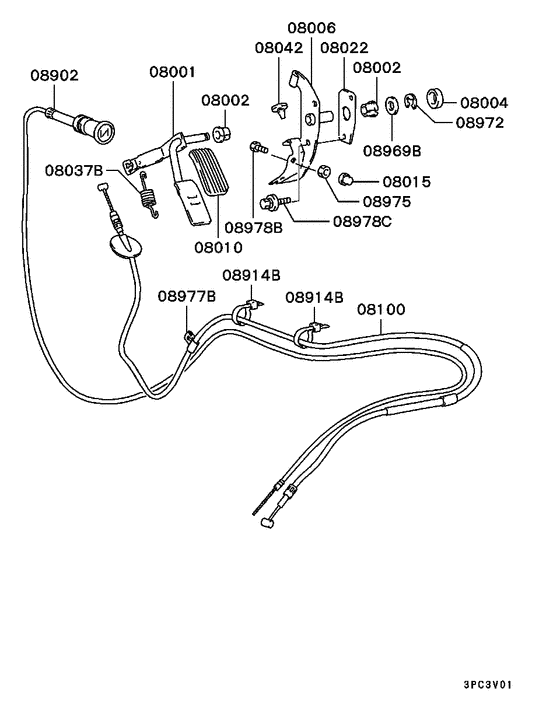

Engine control (RHD) 24
| # | OEM | Part name |
|---|---|---|
| 8001 | MB322604 | ARM, ACCEL PEDAL |
| 8001 | MB322732 | ARM,ACCEL PEDAL |
| 8002 | MA159847 | BEARING, ACCEL PEDAL SHAFT - Needle |
| 8004 | MA103844 | BOOT, ACCEL PEDAL ROD |
| 8006 | MB322607 | BRACKET, ACCEL PEDAL ARM |
| 8006 | MB322735 | BRACKET,ACCEL PEDAL ARM |
| 8010 | MB181266 | PEDAL, ACCEL |
| 8015 | MA103567 | CAP, ACCEL PEDAL ARM STOPPER BOLT |
| 8022 | MB322614 | GASKET, ACCEL PEDAL SUPPORT |
| 8037 | MB322613 | SPRING, ACCEL PEDAL ARM RETURN |
| 8042 | MB134911 | STOPPER, BRAKE PEDAL |
| 8042 | MA306227 | STOPPER, ACCEL PEDAL ARM |
| 8100 | MB322617 | CABLE, ACCEL |
| 8100 | MB322618 | CABLE,ACCEL |
| 8100 | MR133870 | CABLE,ACCEL |
| 8902 | MB322745 | CABLE,CHOKE |
| 8902 | MR150859 | CABLE,CHOKE |
| 8914 | MB249339 | BAND, ENG BREATHER - L=169.5 |
| 8969 | MF450006 | WASHER, CYLINDER HEAD - Plain,10 |
| 8972 | MF522407 | SNAP RING, CHOKE CABLE - 9 |
| 8975 | MF430725 | NUT, CYLINDER HEAD - Jam,8 |
| 8977 | MF477022 | CLIP, FUEL FILLER LID LOCKING - D=6 |
| 8978 | MS100124 | BOLT, CHOKE CABLE - 8x28 |
| 8978 | MF240051 | BOLT, ROCKER COVER - Washer assembled,8x16 |
| OEM | Part name | Category |
|---|---|---|
| MA103567 | CAP, ACCEL PEDAL ARM STOPPER BOLT | Engine control (RHD) |
| MA103844 | BOOT, ACCEL PEDAL ROD | Engine control (RHD) |
| MA159847 | BEARING, ACCEL PEDAL SHAFT - Needle | Engine control (RHD) |
| MA306227 | STOPPER, ACCEL PEDAL ARM | Engine control (RHD) |
| MB134911 | STOPPER, BRAKE PEDAL | Engine control (RHD) |
| MB181266 | PEDAL, ACCEL | Engine control (RHD) |
| MB249339 | BAND, ENG BREATHER - L=169.5 | Engine control (RHD) |
| MB322604 | ARM, ACCEL PEDAL | Engine control (RHD) |
| MB322607 | BRACKET, ACCEL PEDAL ARM | Engine control (RHD) |
| MB322613 | SPRING, ACCEL PEDAL ARM RETURN | Engine control (RHD) |
| MB322614 | GASKET, ACCEL PEDAL SUPPORT | Engine control (RHD) |
| MB322617 | CABLE, ACCEL | Engine control (RHD) |
| MB322618 | CABLE,ACCEL | Engine control (RHD) |
| MB322732 | ARM,ACCEL PEDAL | Engine control (RHD) |
| MB322735 | BRACKET,ACCEL PEDAL ARM | Engine control (RHD) |
| MB322745 | CABLE,CHOKE | Engine control (RHD) |
| MF240051 | BOLT, ROCKER COVER - Washer assembled,8x16 | Engine control (RHD) |
| MF430725 | NUT, CYLINDER HEAD - Jam,8 | Engine control (RHD) |
| MF450006 | WASHER, CYLINDER HEAD - Plain,10 | Engine control (RHD) |
| MF477022 | CLIP, FUEL FILLER LID LOCKING - D=6 | Engine control (RHD) |
| MF522407 | SNAP RING, CHOKE CABLE - 9 | Engine control (RHD) |
| MR133870 | CABLE,ACCEL | Engine control (RHD) |
| MR150859 | CABLE,CHOKE | Engine control (RHD) |
| MS100124 | BOLT, CHOKE CABLE - 8x28 | Engine control (RHD) |
