P13V

Mitsubishi L300 · 1986 · 3,786 parts · 259 categories

3,786 items

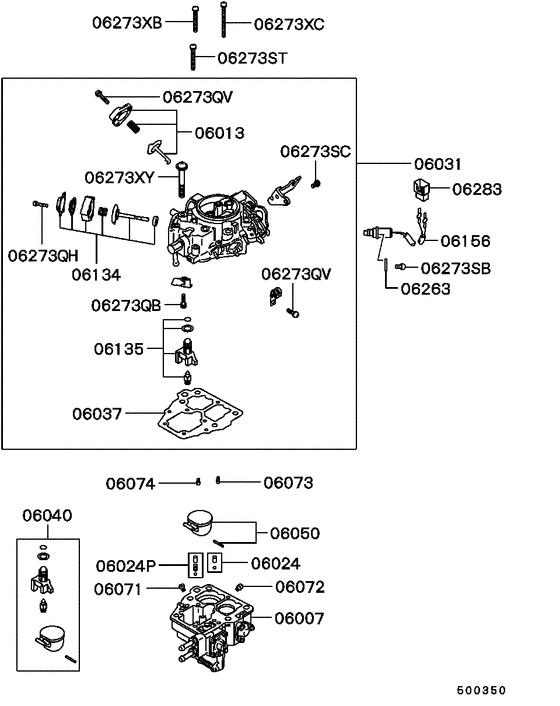

Carburetor (9406.1- W/O UCC (INNER PARTS UPR)) 29

#	OEM	Part name
6007	MD612802	BODY,CARB MIXING
6013	MD612827	BREAKER KIT,CARB CHOKE
6013	MD617170	BREAKER KIT,CARB CHOKE
6013	MD617196	BREAKER KIT,CARB CHOKE
6024	MD612733	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET
6024	MD626368	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET
6031	MD612787	COVER KIT,CARB FLOAT CHAMBER
6031	MD617297	COVER KIT,CARB FLOAT CHAMBER
6037	MD612561	GASKET, CARB FLOAT CHAMBER COVER
6037	MD612573	GASKET, CARB FLOAT CHAMBER COVER
6040	MD612744	FLOAT & NEEDLE VALVE KIT, CARB
6050	MD612213	FLOAT & PIN KIT, CARB
6071	MD600834	JET, CARB REV MAIN - #100
6072	MD612939	JET, CARB MAIN - #167.5
6073	MD600209	JET, CARB PILOT - #50
6073	MD606157	JET, CARB ENRICHMENT - #47.5
6074	MD600116	JET, CARB ENRICHMENT - #60
6134	MD612742	VALVE KIT, CARB BOWL VENTILATOR
6134	MD617185	VALVE KIT, CARB BOWL VENTILATOR
6135	MD612732	NEEDLE VALVE KIT, CARB FLOAT
6156	MD612773	VALVE, CARB SLOW CUT SOLENOID
6263	MD612427	PLATE, CARB INR
6273	MF350029	SCREW, CARB INR
6273	MF350047	SCREW, FLYWHEEL HOUSING - Washer assembled,5x10
6273	MF350048	SCREW, ACCEL CABLE SUPPORT - Washer assembled,5x12
6273	MF350061	SCREW, CARB INR
6273	MD606948	SCREW, CARB INR
6273	MD612692	SCREW, CARB INR
6283	MD612556	CONNECTOR, CARB INR

OEM	Part name	Category
MD600116	JET, CARB ENRICHMENT - #60	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD600209	JET, CARB PILOT - #50	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD600834	JET, CARB REV MAIN - #100	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD606157	JET, CARB ENRICHMENT - #47.5	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD606948	SCREW, CARB INR	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD612213	FLOAT & PIN KIT, CARB	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD612427	PLATE, CARB INR	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD612556	CONNECTOR, CARB INR	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD612561	GASKET, CARB FLOAT CHAMBER COVER	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD612573	GASKET, CARB FLOAT CHAMBER COVER	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD612692	SCREW, CARB INR	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD612732	NEEDLE VALVE KIT, CARB FLOAT	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD612733	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD612742	VALVE KIT, CARB BOWL VENTILATOR	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD612744	FLOAT & NEEDLE VALVE KIT, CARB	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD612773	VALVE, CARB SLOW CUT SOLENOID	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD612787	COVER KIT,CARB FLOAT CHAMBER	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD612802	BODY,CARB MIXING	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD612827	BREAKER KIT,CARB CHOKE	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD612939	JET, CARB MAIN - #167.5	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD617170	BREAKER KIT,CARB CHOKE	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD617185	VALVE KIT, CARB BOWL VENTILATOR	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD617196	BREAKER KIT,CARB CHOKE	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD617297	COVER KIT,CARB FLOAT CHAMBER	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MD626368	CHECK VALVE KIT, CARB ACCEL PUMP OUTLET	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MF350029	SCREW, CARB INR	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MF350047	SCREW, FLYWHEEL HOUSING - Washer assembled,5x10	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MF350048	SCREW, ACCEL CABLE SUPPORT - Washer assembled,5x12	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
MF350061	SCREW, CARB INR	Carburetor (9406.1- W/O UCC (INNER PARTS UPR))
