P12

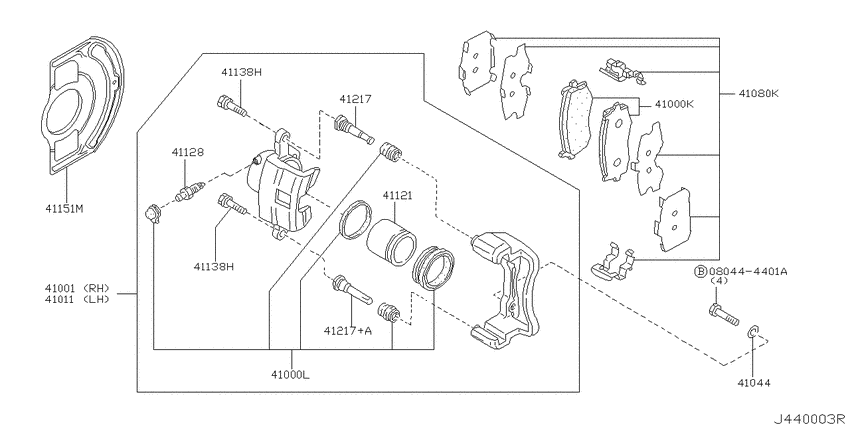

Front brake (2003-07-01 ~ ; W.QR20DE.AT) 6
| # | OEM | Part name |
|---|---|---|
| 41001 | 41001-AU001 | Caliper Assy-Front Rh, W/o Pads Or Shims |
| 41044 | 41044-6P010 | Washer |
| 41080 | 41080-4L025 | Hardware Kit-Front Disc Brake Pad |
| 41138 | 44141-N9500 | Pin-Bolt |
| 41217 | 44139-2Y000 | Pin-Slide |
| 80444401 | 08044-4401A | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08044-4401A | Bolt-hexagon | Front brake (2003-07-01 ~ ; W.QR20DE.AT) |
| 41001-AU001 | Caliper Assy-Front Rh, W/o Pads Or Shims | Front brake (2003-07-01 ~ ; W.QR20DE.AT) |
| 41044-6P010 | Washer | Front brake (2003-07-01 ~ ; W.QR20DE.AT) |
| 41080-4L025 | Hardware Kit-Front Disc Brake Pad | Front brake (2003-07-01 ~ ; W.QR20DE.AT) |
| 44139-2Y000 | Pin-Slide | Front brake (2003-07-01 ~ ; W.QR20DE.AT) |
| 44141-N9500 | Pin-Bolt | Front brake (2003-07-01 ~ ; W.QR20DE.AT) |
